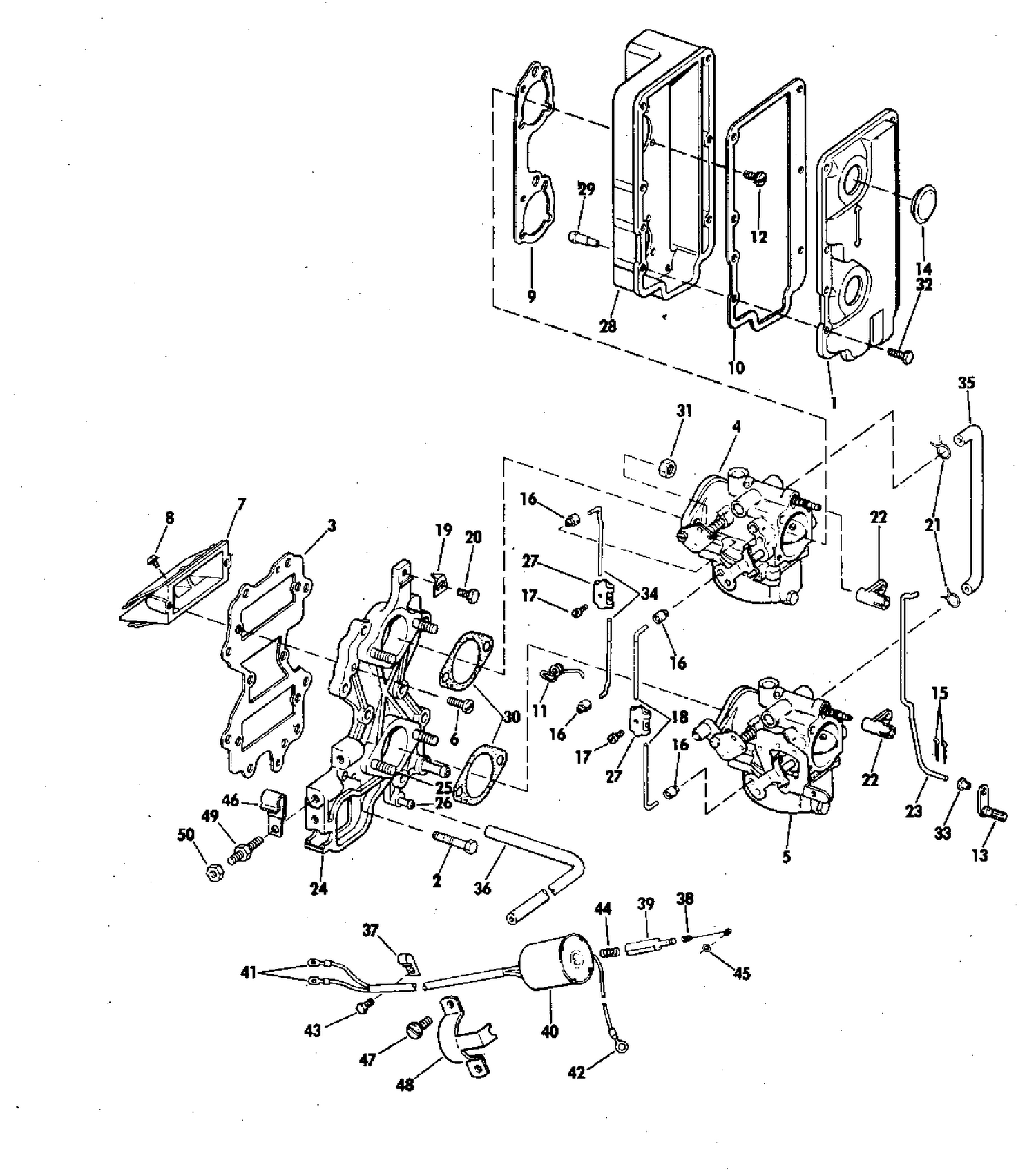

| Ref | Part Number | Description |
|---|
| 1 |
0316053 |
COVER, Air silencer |
| 2 |
0306049 |
SCREW |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
0384235 |
CARB ASSY., Upper |
| 5 |
0384236 |
CARB ASSY., Lower, elec start |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE This part replaces 0383972. |
| 9 |
0321497 |
GASKET, Air silencer This part replaces 0316051. |
| 10 |
0330698 |
GASKET This part replaces 0316091. |
| 11 |
0314807 |
SPRING |
| 12 |
0314496 |
SCREW, Air silencer |
| 13 |
0384387 |
SHAFT, Slow speed |
| 14 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 17 |
0303686 |
SCREW, Fastener |
| 18 |
0316073 |
LINK, Carburetor choke |
| 19 |
0316556 |
TIMING POINTER |
| 20 |
0510278 |
SCREW |
| 21 |
0302647 |
CLAMP |
| 22 |
0316144 |
ARM, Slow speed adjust |
| 23 |
0316060 |
LINK, Slow speed adjust |
| 24 |
0385261 |
MANIFOLD ASSEMBLY |
| 27 |
0318974 |
FASTENER, Cable clamp This part replaces 0314886. |
| 28 |
0384265 |
BASE AND NIPPLE ASSY |
| 30 |
0325092 |
GASKET This part replaces 0314477. |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 32 |
0314576 |
SCREW |
| 33 |
0304216 |
BUSHING |
| 34 |
0314897 |
HOSE, Air silencer |
| 35 |
0203909 |
HOSE, Oil return This part replaces 0303171. |
| 36 |
HOSE, |
Air silencer to manifold |
| 37 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 38 |
0316075 |
SPRING, Choke colenoid |
| 39 |
0316330 |
PLUNGER ,Choker solenoid |
| 40 |
0384226 |
SOLENOID ASSEMBLY |
| 43 |
0313117 |
SCR,Clamp,eng cable |
| 44 |
0314739 |
SPRING, Plunger to solenoid |
| 45 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 47 |
0551706 |
SCREW |
| 48 |
0316036 |
CLAMP CHOKE SOLENOID |
