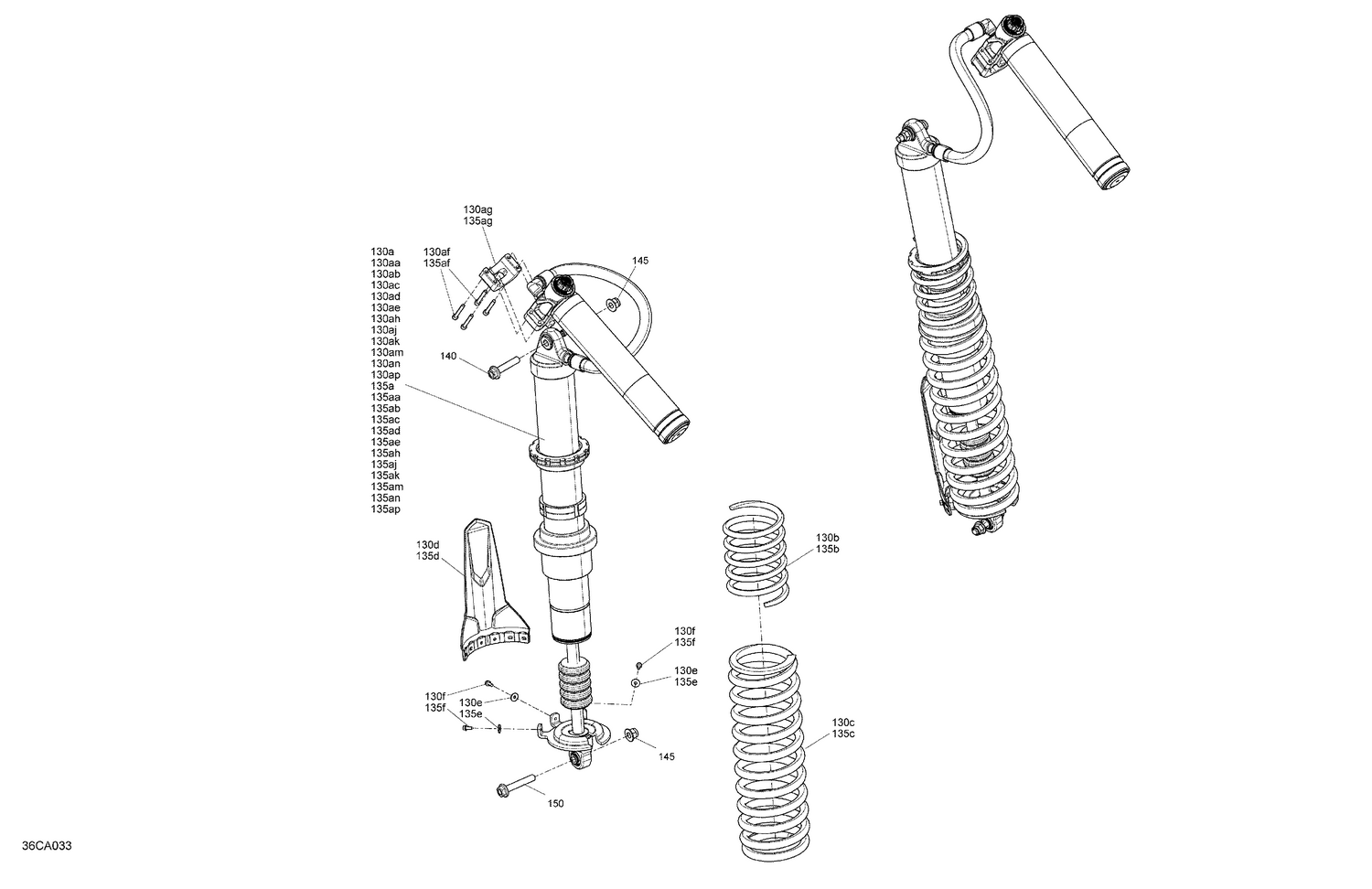

05- Suspension - Rear Shocks
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706004084 | Rear Shock Absorber |
| 130aa | 715900337 | Spherical Bearing |
| 130ab | 706004078 | Ball Joint This part replaces 715900482. |
| 130ac | 715900338 | O-Ring Bushing |
| 130ad | 715900480 | Circlip |
| 130ae | 715900481 | Reducer |
| 130af | 715900521 | Screw M6 X 35 |
| 130ag | 715900522 | Réservoir Clamp |
| 130ah | 715900605 | Preload Ring |
| 130aj | 715900606 | Preload Ring Backup |
| 130ak | 715900607 | Spring Adapter |
| 130am | 715900608 | Crossover ring |
| 130an | 715900597 | Spring Retainer |
| 130ap | 715900593 | Spring Coupler |
| 130b | 706004168 | Chalk, Compression Spring |
| 130c | 706004169 | Chalk, Compression Spring |
| 130d | 706202215 | Protector |
| 130e | 250200025 | Washer M5 |
| 130f | 210251150 | Hex Flange Screw M5 X 11 |
| 135a | 706004084 | Rear Shock Absorber |
| 135aa | 715900337 | Spherical Bearing |
| 135ab | 706004078 | Ball Joint This part replaces 715900482. |
| 135ac | 715900338 | O-Ring Bushing |
| 135ad | 715900480 | Circlip |
| 135ae | 715900481 | Reducer |
| 135af | 715900521 | Screw M6 X 35 |
| 135ag | 715900522 | Réservoir Clamp |
| 135ah | 715900605 | Preload Ring |
| 135aj | 715900606 | Preload Ring Backup |
| 135ak | 715900607 | Spring Adapter |
| 135am | 715900608 | Crossover ring |
| 135an | 715900597 | Spring Retainer |
| 135ap | 715900593 | Spring Coupler |
| 135b | 706004168 | Chalk, Compression Spring |
| 135c | 706004169 | Chalk, Compression Spring |
| 135d | 706202215 | Protector |
| 135e | 250200025 | Washer M5 |
| 135f | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 233221466 | Elastic Flange Nut M12 |
