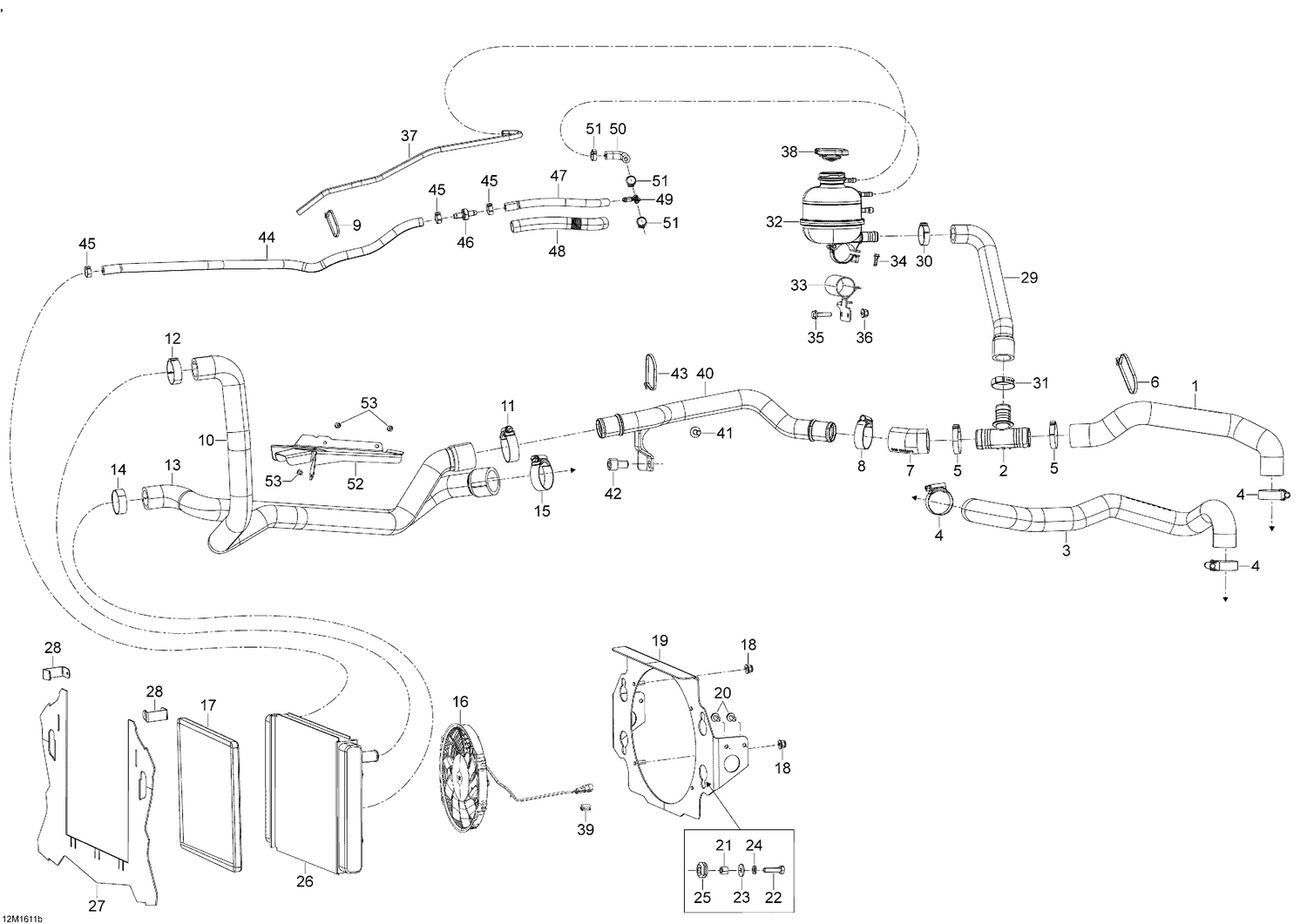

01- Cooling System - 1200 4-TEC

Parts (52)

Ref	Part Number	Description
1	509000894	Formed Hose
2	509000372	T-Fitting
3	509000895	Formed Hose
4	509000443	Aba Gear Clamp, 26-38 MM
5	509000181	Oetiker Gear Clamp
6	293750008	Tie Wrap 368 mm
7	509001067	Engine Inlet Hose This part replaces 509000675.
8	509000443	Aba Gear Clamp, 26-38 MM
9	414115200	Tie-Rap 180 mm
10	509000780	Hose, Front Radiator ( Air Engine)
11	509000443	Aba Gear Clamp, 26-38 MM
12	293650165	Oetiker Gear Clamp
13	509000781	Hose, Front Radiator (Engine)
14	293650165	Oetiker Gear Clamp
15	509000443	Aba Gear Clamp, 26-38 MM
16	509000838	Cooling Fan
17	509000718	Insulation
18	233261414	Hex. Flange Elastic Nut M6 x 1.0
19	509000791	Radiator support
20	207664044	Hex. Flange Screw M6 X 40
21	605453745	Bushing
22	207162044	Hex. Screw M6 X 20
23	234062410	Flat Washer 6 mm
24	234161431	Lock Waasher
25	709000582	Grommet
26	509000787	Radiator
27	509000700	Air Deflector
28	509000703	Deflector Clip
29	509000663	Filling Hose
30	509000442	Oeticker Gear Clamp, 25.6-706R
31	293650099	Crimp Clamp
32	509000421	Coolant Tank
33	509000856	Reservoir support
34	241151640	Hex. Flange Screw K50 X 2.24 X 16
35	207662544	Hex. Flange Screw M6 X 25
36	233261414	Hex. Flange Elastic Nut M6 x 1.0
37	219704360	Hose 6 Mm 15000Mm Long
38	509000180	Radiator Pressure Cap
39	710000992	Clip
40	509000724	Water Pipe Aluminum
41	250000717	Torx Head Screw M6 X 16
42	205501644	Socket Screw M10 X 16
43	414115200	Tie-Rap 180 mm
44	219704420	Was 509000407 Hose 8 mm
45	293650140	Oetiker Clamp
46	509000153	Check Valve
47	509001069	Hose-formed This part replaces 509000765.
48	219704408	Tubing 16 Mm 1000Mm Long
49	293710140	Y-Fitting
50	509000799	HOSE - Call your local BRP dealership
51	293650046	Oetiker Clamp
52	509000839	HEAT DEFLECTOR - Call your local BRP dealership
