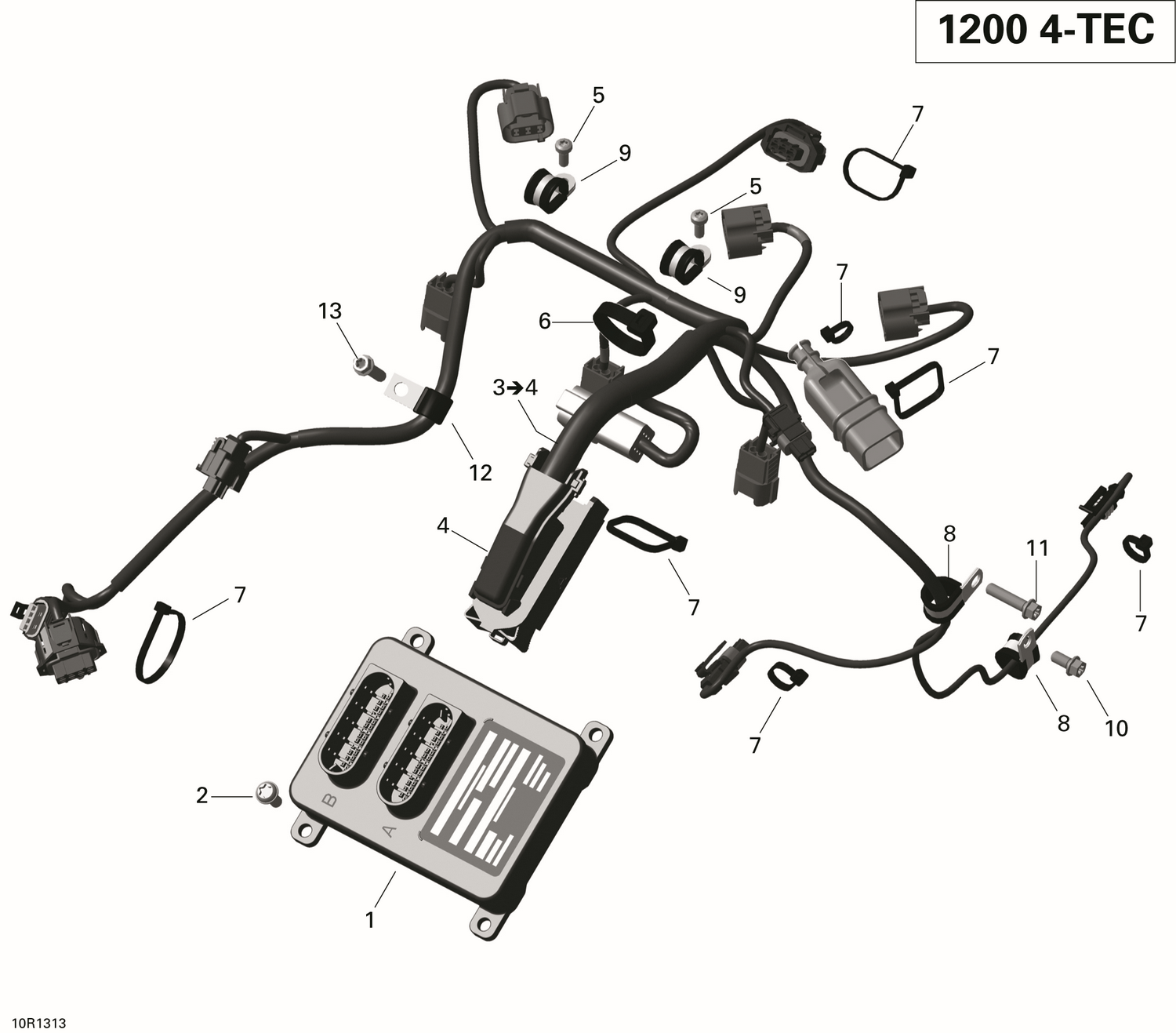

10- Engine Harness And Electric Module
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666128 | ECM, Engine Control Module |
| 2 | 420641588 | Torx PT Screw M6 x 16 This part replaces 420641583. |
| 4 | 420664450 | ECM Connector housing |
| 5 | 420640086 | Torx Screw M5 x 12 This part replaces 420640081. |
| 6 | 420866716 | Tie-Rap |
| 7 | 420866717 | CLAMP - Call your local BRP dealership |
| 8 | 420851492 | Cable Clamp 15/M6 |
| 9 | 420851108 | CABLE CLAMP - Call your local BRP dealership |
| 10 | 420440147 | Torx Screw M6 X 12 |
| 11 | 420440234 | Flanged Torx Screw M6 X 25 |
| 12 | 420251812 | Cable clamp 9,5/M6 |
