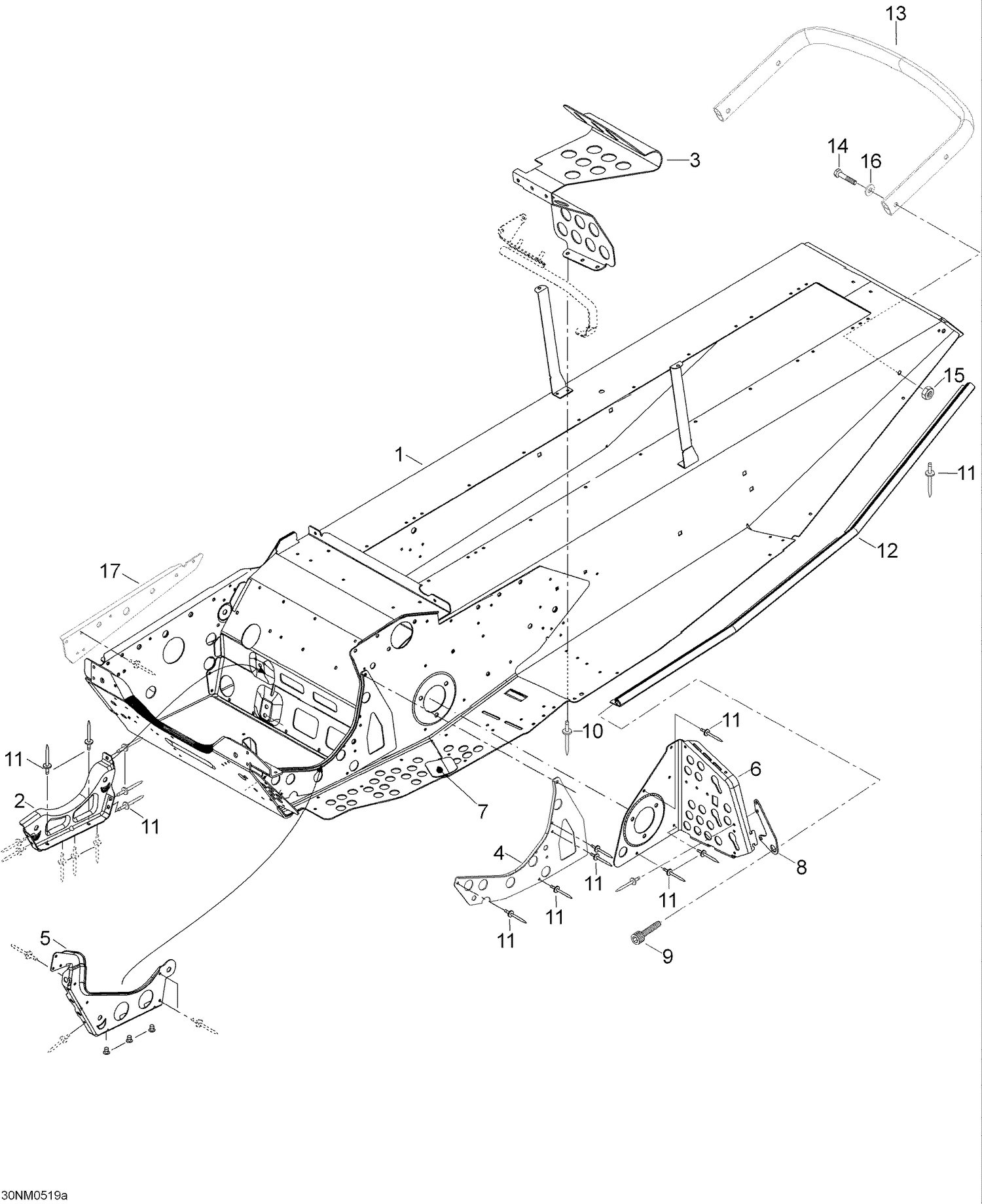

09- Frame
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 518323346 | ENGINE SUPPORT, BLACK - Call your local BRP dealership |
| 3 | 605351600 | L.H. Toe hold |
| 3 | 605351601 | R.H. Toe hold |
| 4 | 605350345 | Inner reinforcement |
| 5 | 605451826 | Engine support |
| 6 | 518323805 | R.H. footrest reinforcement |
| 6 | 518324527 | LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 7 | 605451590 | Rivet plate |
| 8 | 605450199 | Support plate |
| 9 | 40398 | Socket head screw M12 x 25 |
| 10 | 36108 | Rivet |
| 11 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 12 | 605349884 | L.H. Roller |
| 12 | 605349885 | R.H. Roller |
| 13 | 605350891 | Rear bumper |
| 14 | 40007 | Hex. screw M8 x 40 |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 16 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
