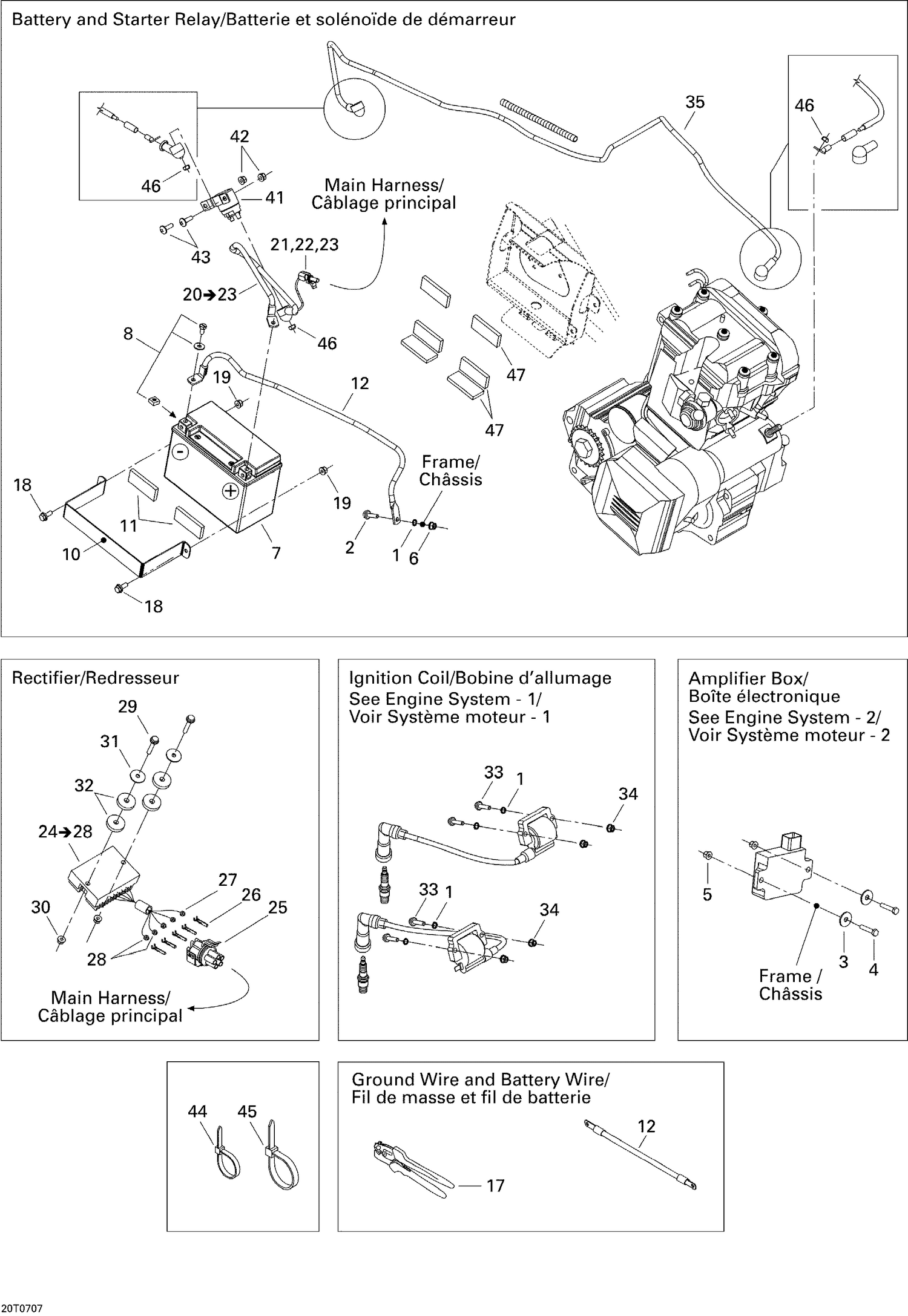

10- Electrical System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 234461608 | External Serrated Lock Washer 6 mm |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 224061201 | Flat Washer |
| 4 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 5 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 710000283 | BATTERY_12 VOLT 13AH - Call your local BRP dealership |
| 8 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 10 | 710000087 | RUBBER STRAP, BLACK - Call your local BRP dealership |
| 11 | 293830083 | PROTECTOR - Call your local BRP dealership |
| 12 | 710000281 | BATTERY GROUND CABLE - Call your local BRP dealership |
| 17 | 529035730 | Crimp Plier |
| 18 | 207661644 | Hex. Flange Screw M6 X 16 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 21 | 278000219 | CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership |
| 22 | 409007300 | Female Terminal |
| 23 | 710000048 | Wire Seal |
| 25 | 710000106 | Female Housing, 5 Circuit |
| 26 | 409007300 | Female Terminal |
| 27 | 278000218 | Wire Seal |
| 28 | 710000048 | Wire Seal |
| 29 | 207663544 | Hex. Flange Screw M6 X 35 |
| 30 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 31 | 224060251 | Washer |
| 32 | 250200002 | RUBBER WASHER - Call your local BRP dealership |
| 33 | 207662544 | Hex. Flange Screw M6 X 25 |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 37 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 41 | 515176011 | Starter Relay |
| 42 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 43 | 250000080 | PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 44 | 414115200 | Tie-Rap 180 mm |
| 45 | 293750008 | Tie Wrap 368 mm |
| 46 | 232561414 | Elastic Stop Nut M6 |
