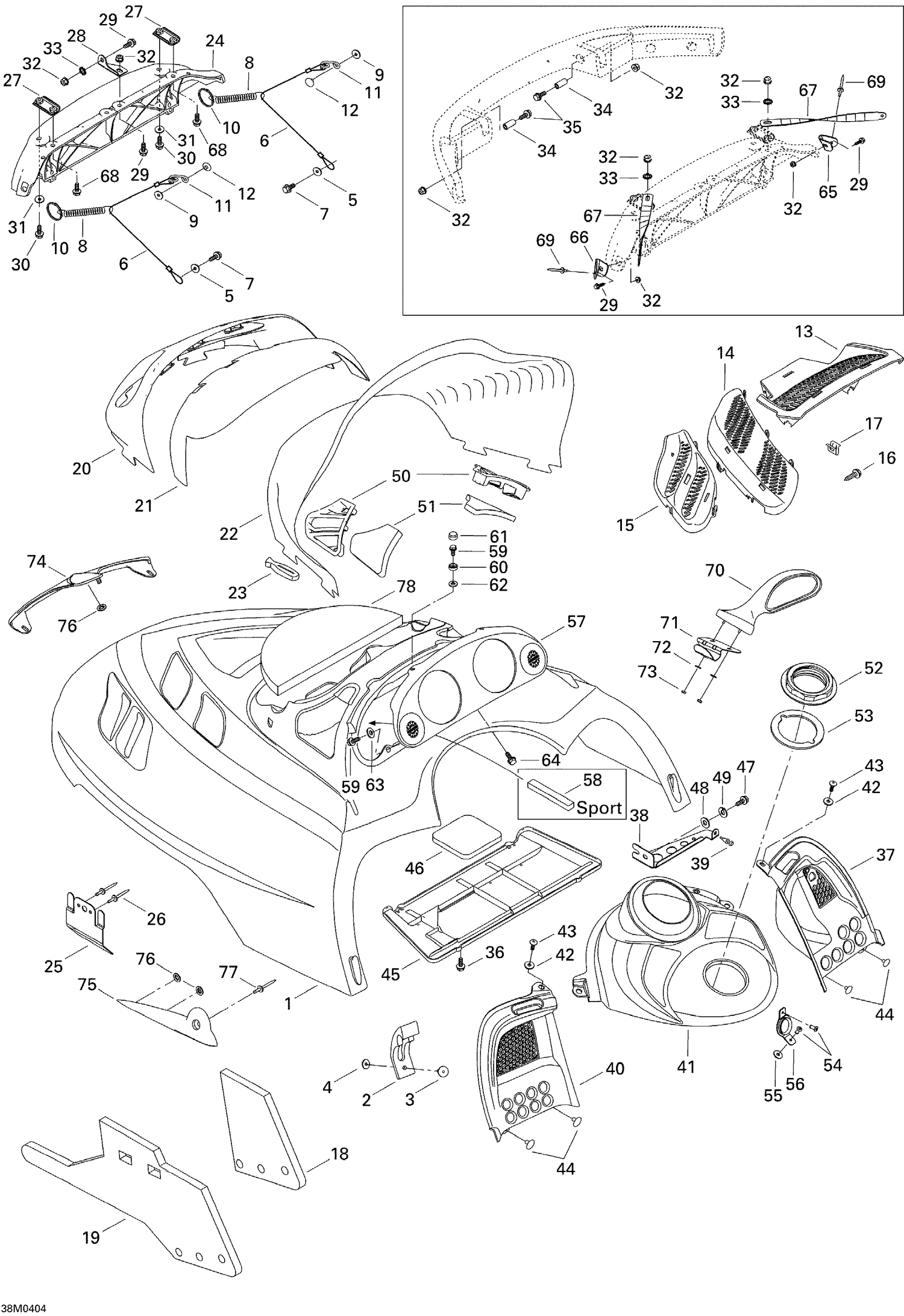

09- Cab, Console
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 570027100 | Hood Latch |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 391301600 | Washer |
| 6 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 7 | 365901000 | Hex. Tapping Screw |
| 8 | 415043300 | Spring |
| 9 | 517124300 | Washer |
| 10 | 415058300 | RING - Call your local BRP dealership |
| 11 | 517262800 | Bracket |
| 12 | 293150104 | Pop Rivet 3/16" |
| 13 | 517302026 | CENTER GRILL, BLACK - Call your local BRP dealership |
| 14 | 517302671 | RH Intermediate Grill, Black |
| 15 | 517302034 | RH Side Grille |
| 16 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 17 | 517302785 | Edge Clip |
| 18 | 517302675 | RH Side Foam |
| 19 | 517302630 | LH Side Foam |
| 21 | 517302003 | WINDSHIELD SUPPORT - Call your local BRP dealership |
| 23 | 570023800 | Windshield Latch |
| 24 | 517302631 | Hinge |
| 25 | 517302615 | Hood Guide |
| 26 | 390910000 | Pop Rivet 3/16” |
| 27 | 517302176 | HINGE SIDE PLATE - Call your local BRP dealership |
| 28 | 517302045 | Hinge Center Plate |
| 29 | 207661654 | Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 30 | 207162060 | Hex. Forming Screw M6 X 20 |
| 31 | 234062600 | Flat Washer M6, Stainless |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 250200041 | Lock Washer Serrated M6 |
| 34 | 517302179 | BUSHING - Call your local BRP dealership |
| 35 | 207663544 | Hex. Flange Screw M6 X 35 |
| 36 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 37 | 517302005 | RH CONSOLE - Call your local BRP dealership |
| 38 | 517302621 | RH Console Support |
| 39 | 517302624 | Rubber Stopper |
| 40 | 517302006 | LH CONSOLE - Call your local BRP dealership |
| 42 | 391301600 | Washer |
| 43 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 44 | 293150103 | Pop Rivet 3/16" |
| 45 | 517302836 | AIR INTAKE PLATE - Call your local BRP dealership |
| 46 | 517302425 | Secondary Foam |
| 47 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 48 | 234061410 | Flat Washer 6 mm |
| 49 | 234161471 | Lock Washer M6, Black |
| 50 | 517302024 | RH AIR INTAKE GRILL - Call your local BRP dealership |
| 51 | 517302151 | Air Intake Foam |
| 52 | 517302043 | CONSOLE NUT - Call your local BRP dealership |
| 53 | 293250029 | Gasket |
| 54 | 390409400 | RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 55 | 517302286 | Rubber Stopper |
| 56 | 517302129 | Rope Guide |
| 59 | 241140060 | Screw K40 X 10 |
| 60 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 61 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 62 | 234042600 | Flat Washer 4 mm, Stainless |
| 63 | 517124300 | Washer |
| 64 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 65 | 517302254 | RH Corner Support |
| 66 | 517302255 | LH Corner Support |
| 67 | 517302837 | HOOD CLAMP - Call your local BRP dealership |
| 68 | 207662544 | Hex. Flange Screw M6 X 25 |
| 69 | 390406500 | Pop Rivet 3/16" |
| 70 | 517302679 | RH Mirror |
| 71 | 517302539 | Retainer Plate |
| 72 | 517124300 | Washer |
| 73 | 232541414 | Elastic Stop Nut M4 |
| 74 | 517302780 | Front Hood Moulding |
| 75 | 517302781 | RH Hood Moulding |
| 76 | 732610072 | Push Nut |
| 77 | 293150092 | Pop Rivet 3/16” |
| 517302025 | LH | AIR INTAKE GRILL - Call your local BRP dealership 517302025 |
| 517302036 | Grille-Côté | GA 517302036 |
| 517302036 | LH | Side Grille 517302036 |
| 517302672 | Grille | Intermédiaire GA, Noir 517302672 |
| 517302672 | LH | Intermediate Grill, Black 517302672 |
| 517302681 | LH | Mirror 517302681 |
| 517302681 | Mirroir | GA 517302681 |
| 517302782 | Enjoliveur | De Capot GA 517302782 |
| 517302782 | LH | Hood Moulding 517302782 |
