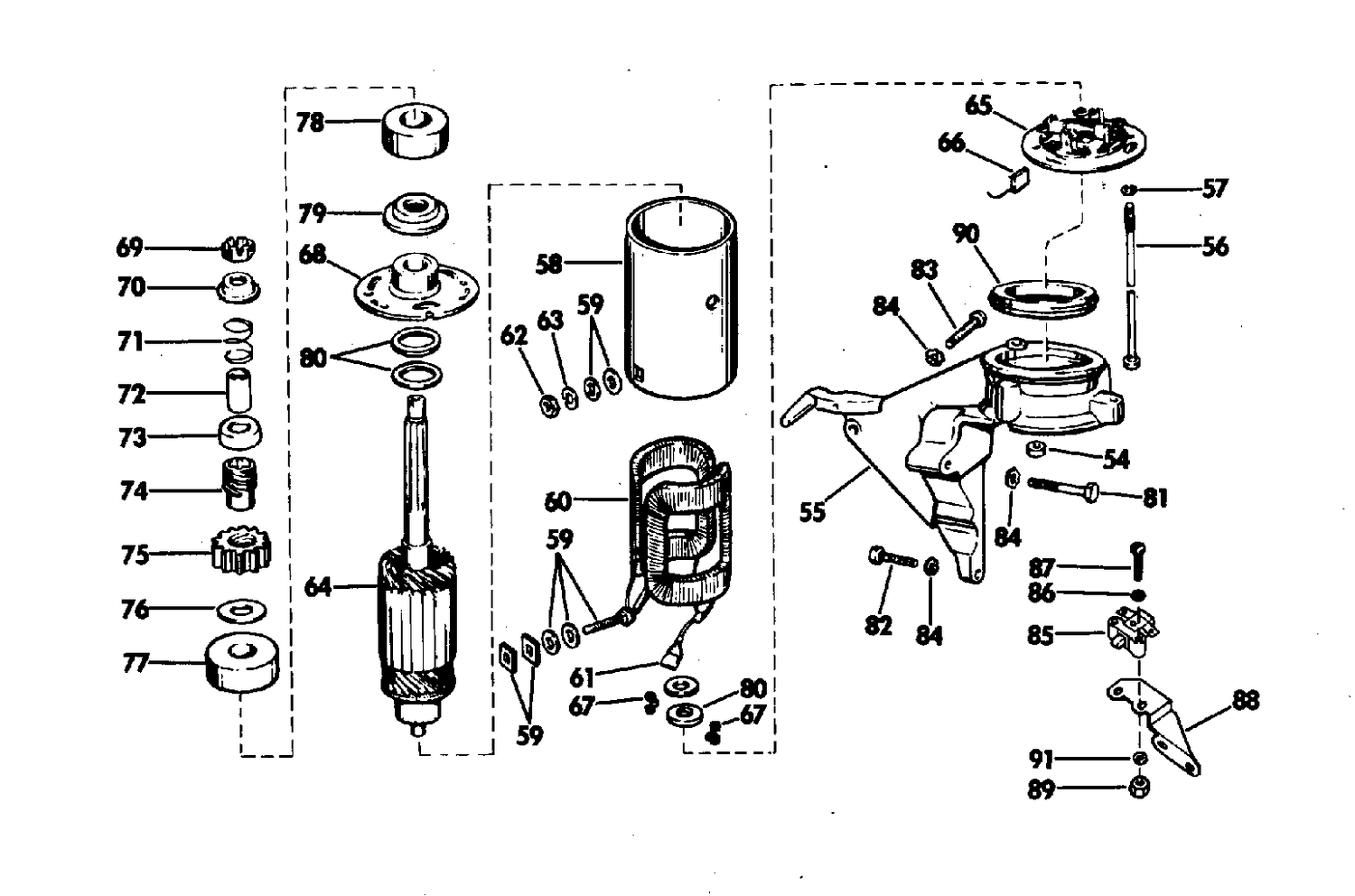

| Ref | Part Number | Description |
|---|
| 54 |
0304847 |
JOINT, boulon de démarreur |
| 55 |
0317328 |
BRACKET, Port |
| 56 |
0385003 |
THRU BOLT PACKAGE |
| 58 |
0379623 |
FRAME & FIELD ASSY |
| 59 |
0385006 |
TERMINAL STUD PKG |
| 60 |
0385005 |
COIL ASSEMBLY |
| 61 |
BRUSH |
Ref: 62 0303932 HEX NUT TERMINAL 0303932 |
| 64 |
0278188 |
AIRATURE |
| 65 |
0385518 |
HEAD ASSY., Commutator |
| 66 |
BRUSH, |
Grounded |
| 67 |
0308141 |
SPING, Brush |
| 68 |
0379970 |
HEAD ASST .,Drive end |
| 74 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311863. |
| 75 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311861. |
| 80 |
0385519 |
THRUST WASHER PKG |
| 81 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 82 |
0306409 |
VIS, collecteur vers carter-moteur |
| 83 |
0306418 |
VIS, ancrage |
| 85 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 86 |
0310498 |
WASHER |
| 88 |
0317301 |
BRACKET |
| 89 |
0302437 |
NUT |
| 90 |
0304789 |
SHOCK ABSORB., Start pin |
| 0385401 |
0385401 |
STARTER MOT0R ASSY |
