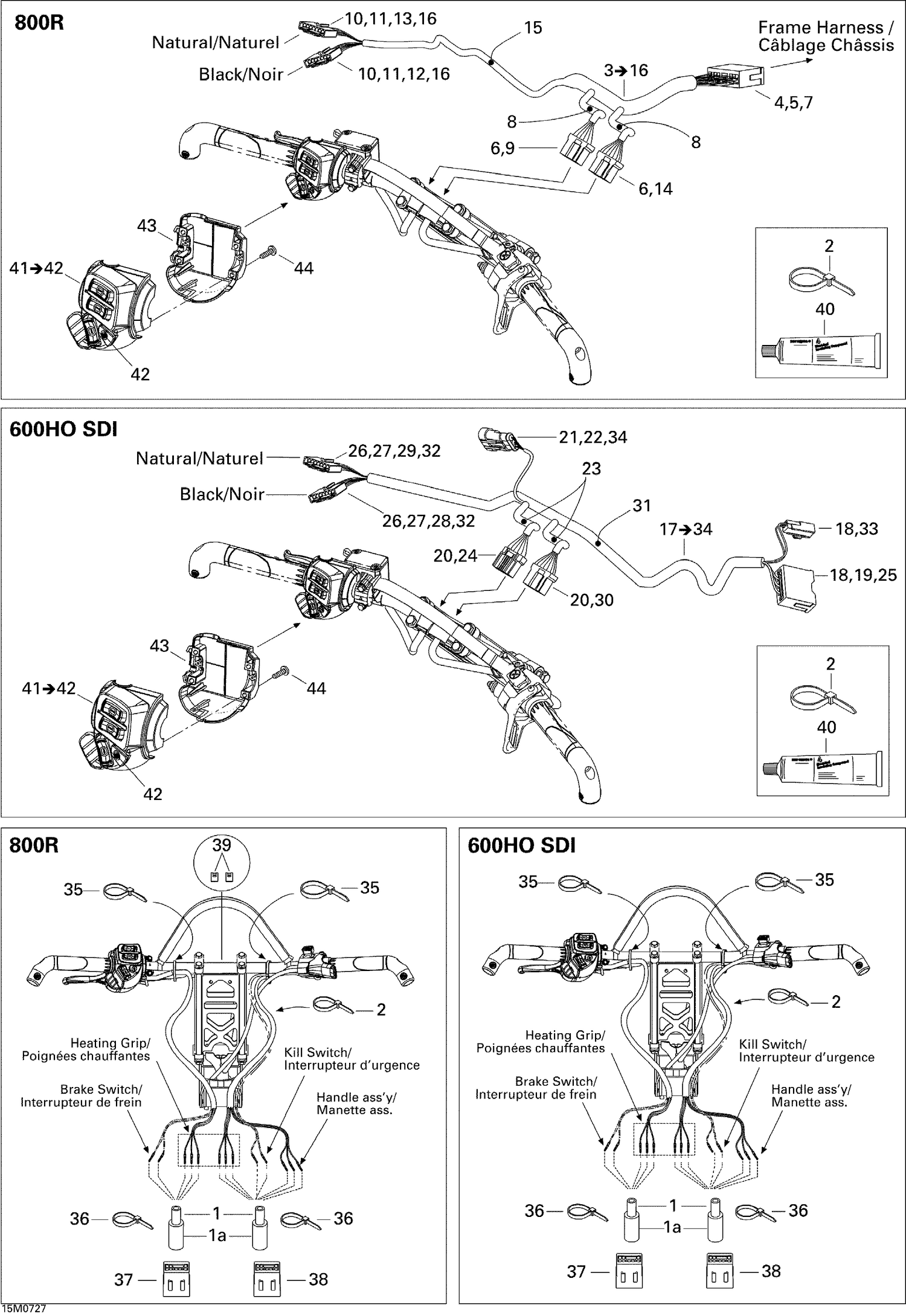

10- Steering Wiring Harness 800R

10- Steering Wiring Harness 800R

Parts (41)

RefPart NumberDescription
1 409902000 Tubing 12 mm
1a 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
2 293750008 Tie Wrap 368 mm
4 515175232 Male Terminal
5 515175273 MALE TERMINAL - Call your local BRP dealership
6 515175231 Female Terminal
7 515175352 MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
8 219704407 Tubing 10 MM 1000MM Long
9 515175543 Female Terminal Housing, 6 Circuits
10 515175808 FEMALE TERMINAL - Call your local BRP dealership
11 515175809 FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership
12 515175807 FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership
13 515175810 FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
14 515175819 Female Terminal Housing, 8 Circuits
15 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
16 515175941 Female Terminal
17 XXX Not Available As Spare Parts
18 515175232 Male Terminal
19 515175273 MALE TERMINAL - Call your local BRP dealership
20 515175231 Female Terminal
21 710000568 Housing
22 278001013 Wire Seal
23 219704407 Tubing 10 MM 1000MM Long
24 515175543 Female Terminal Housing, 6 Circuits
25 515175720 MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
26 515175808 FEMALE TERMINAL - Call your local BRP dealership
27 515175809 FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership
28 515175807 FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership
29 515175810 FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
30 515175819 Female Terminal Housing, 8 Circuits
31 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
32 515175941 Female Terminal
33 710000667 Male Housing, 2 Circuits
34 515176164 Male Terminal
35 414115200 Tie-Rap 180 mm
36 293750002 Tie Wrap 142 mm
37 515175662 Male Terminal Housing, 6 Circuits
38 515175817 Male Terminal Housing, 8 Circuits
40 219704453 Was 293550004 Dielectric Grease, 150 g
42 515176088 Start/RER Button
43 515175926 Switch Housing Plate
