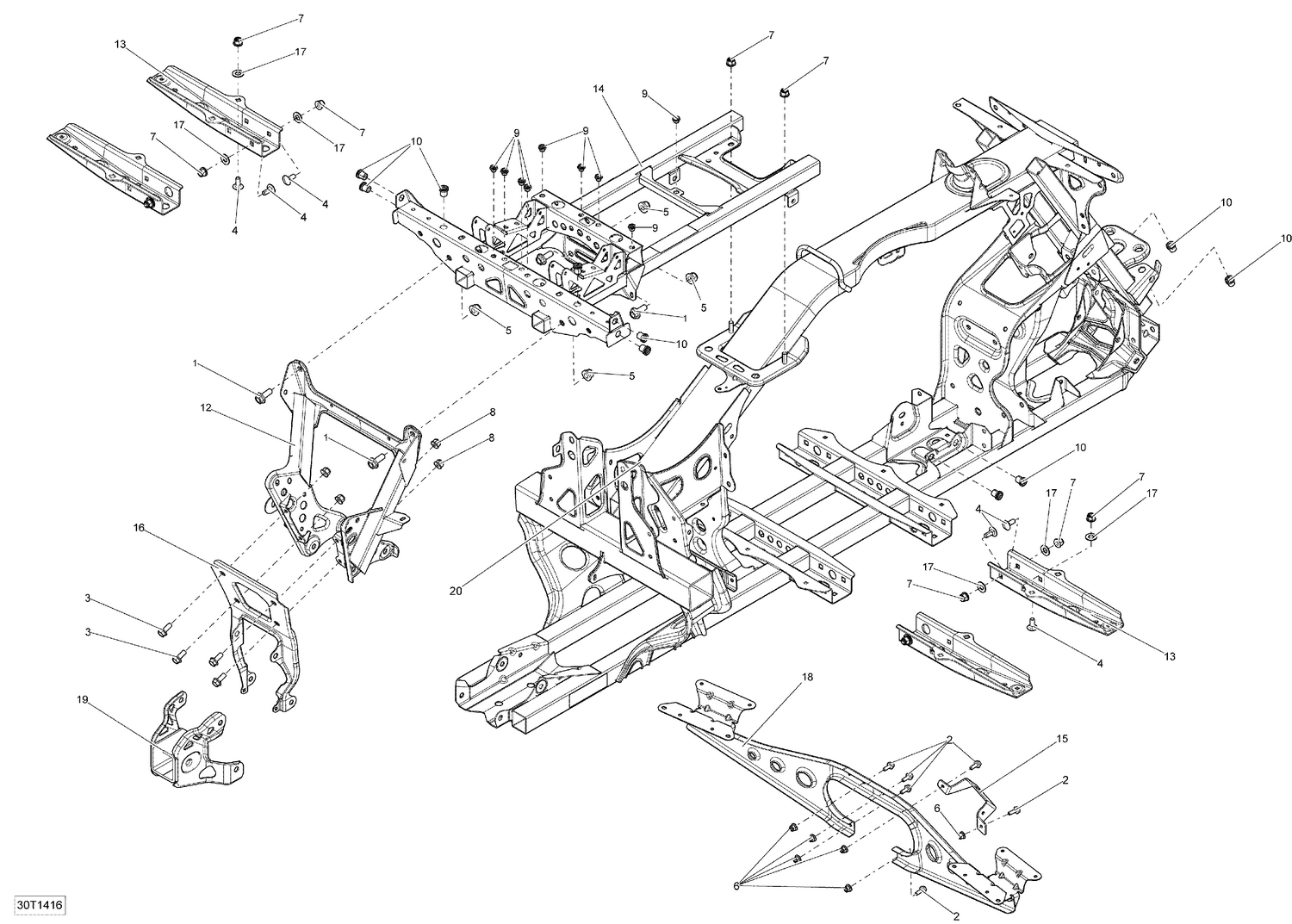

| Ref | Part Number | Description |
|---|
| 1 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 2 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 4 |
207782044 |
Carriage Bolt, M8 X 20 |
| 5 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 9 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 10 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 12 |
705210818 |
Rear Pillar This part replaces 705201907. |
| 13 |
703500852 |
SUPPORT KIT - Call your local BRP dealership This part replaces 705202021. |
| 14 |
705202295 |
FRAME TAIL, BLACK - Call your local BRP dealership |
| 15 |
705203874 |
Master Cylinder Bracket This part replaces 705202851. |
| 16 |
705203301 |
Rear Support |
| 17 |
234001410 |
Flat Washer 10 mm |
| 18 |
705210817 |
Footrest Support This part replaces 705202947. |
| 19 |
715005186 |
Trailer Hitch This part replaces 715001329. |
