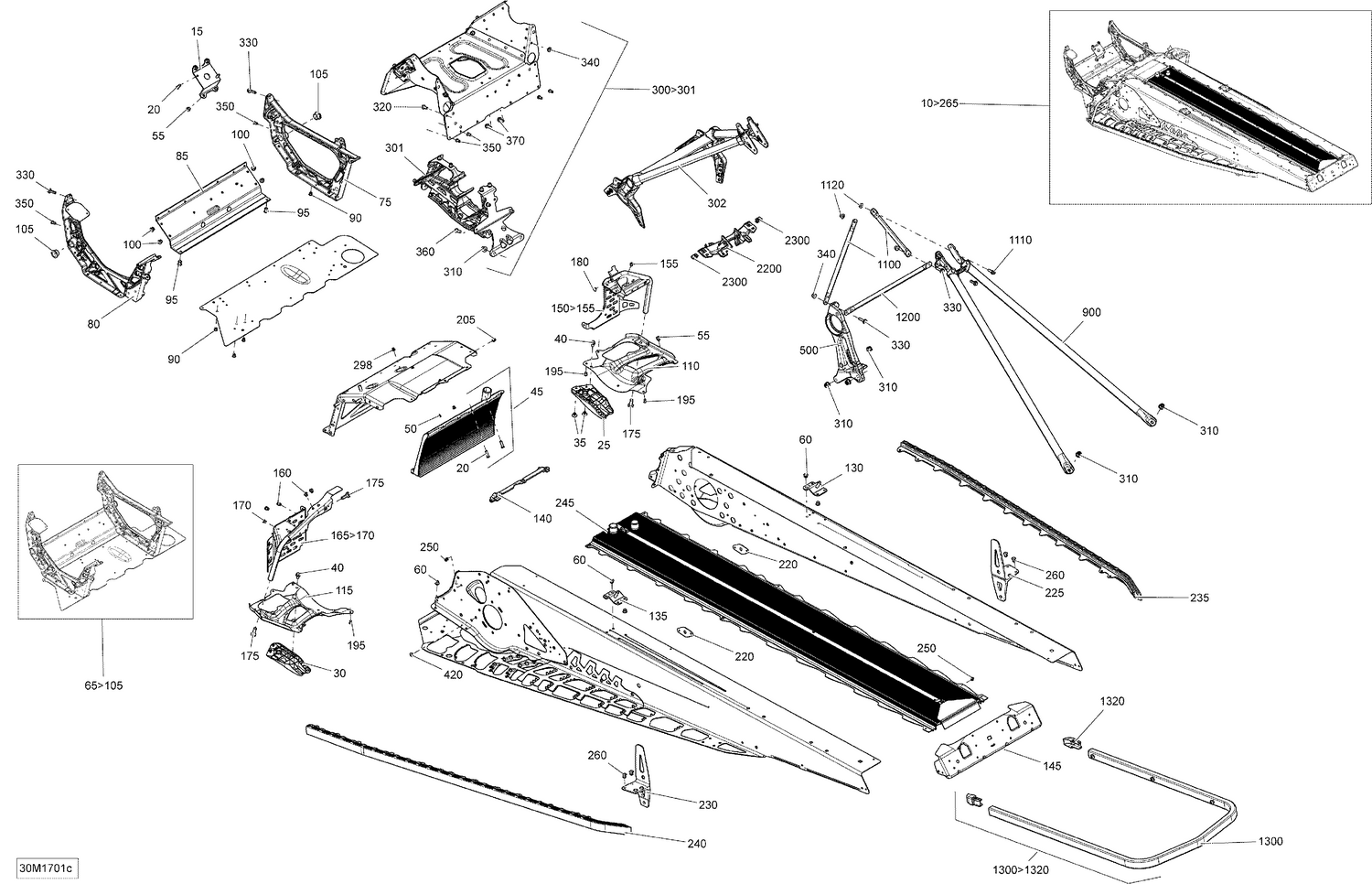

09- Frame — Parts Catalog

Parts (49)

Ref	Part Number	Description
20	250300027	Clinch Stud M6 X 20
45	518326485	Front Radiator
50	293150203	Rivet Avibulb 3/16
55	293150119	Hemlock Rivet, 6.5 mm
75	518326795	RH Member
80	518326796	LH Member
85	518326198	Front Member
90	293150144	Stavex Rivet
95	293150120	Hemlock Rivet 6.5 mm
100	293150119	Hemlock Rivet, 6.5 mm
105	505073317	Leg Cushion
130	518325973	RH Rear Base
135	518325974	LH Rear Base
140	518326656	Seal
145	518327105	Rear Cap
155	390909200	Avex Rivet
160	293450268	Insert M5 X 0.8
170	390909200	Avex Rivet
175	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip
180	293730042	Full Moon Dart 5 mm
195	390909100	Avex Rivet
205	293150146	Henrob Rivet
235	518327472	RH Roller
240	518327473	LH Roller
250	293150144	Stavex Rivet
260	293150266	Ornit Rivet 6,5 X 14.5 This part replaces 293150147.
298	390402400	Pop Rivet 3/16"
301	518327487	Front Suspension Support
302	518327565	Front Member
310	233281414	Hex. Flange Elastic Nut M8
320	250001051	Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822.
330	207662544	Hex. Flange Screw M6 X 25
340	233261414	Hex. Flange Elastic Nut M6 x 1.0
350	293150191	Monobolt Rivet, 4.8 mm
360	293150182	Monobolt Rivet 6.4
370	207661644	Hex. Flange Screw M6 X 16
420	293730053	Black Dart 5 mm
420	293730060	Black, Dart 10 mm
500	518327460	Driven Pulley Support This part replaces 518327133.
900	518326559	Rear Member
1100	518325114	Upper Lateral Column Support
1110	207662044	Hex. Flange Screw M6 X 20
1120	233261416	Elastic Flange Nut M6 X 1.0
1200	518325115	Center Column Support
1320	520000964	Black LH Cap
1320	520000965	Black RH Cap
2200	518327145	Sub A Support
2300	250000958	Panel Nut M5 X 0.8 This part replaces 250000079.
6000	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip
