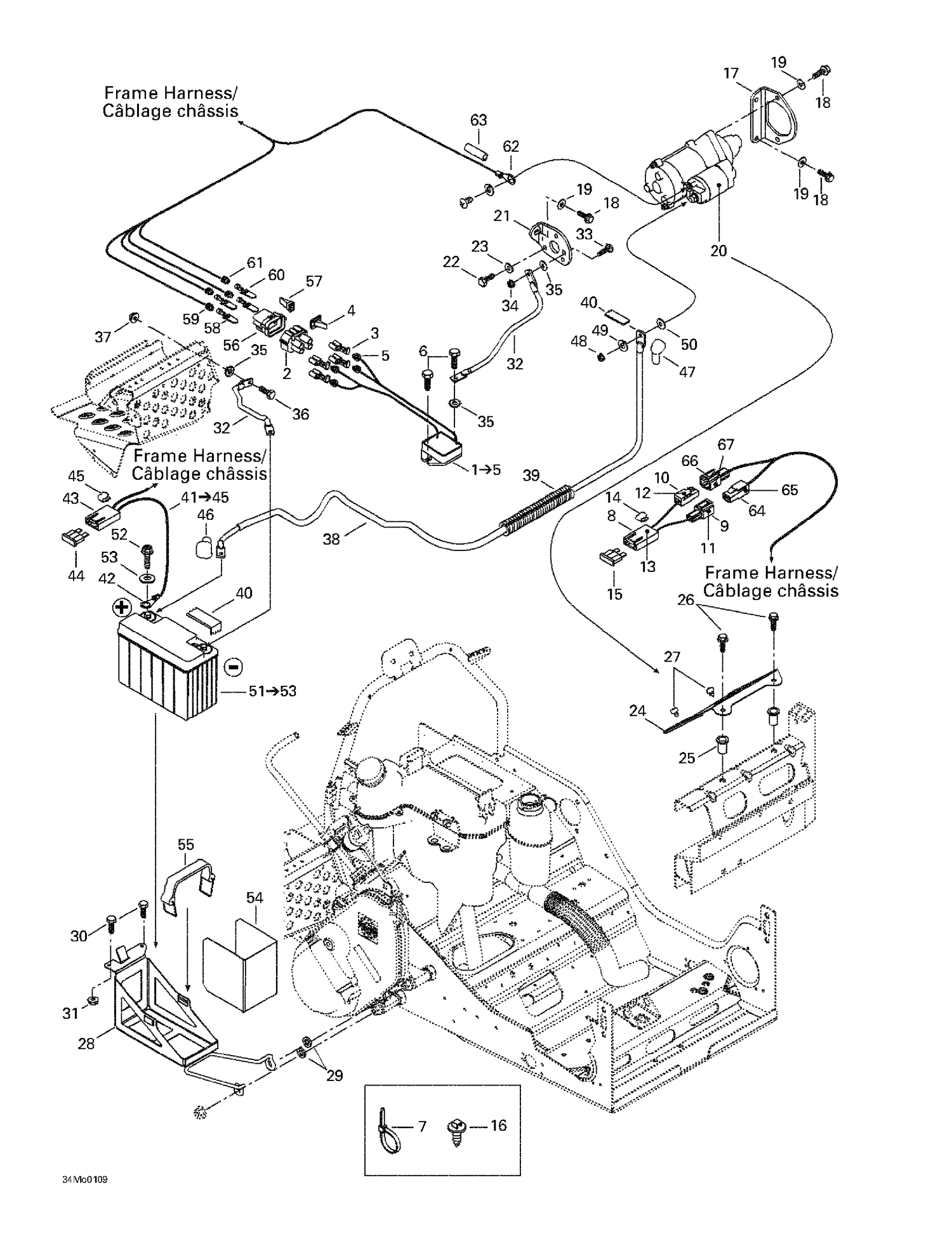

10- Battery And Starter
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 409208000 | Female Terminal Housing (4 circuits) |
| 3 | 278000994 | FEMALE TERMINAL - Call your local BRP dealership |
| 4 | 409013400 | Female Lock |
| 5 | 278000996 | WIRE SEAL - Call your local BRP dealership |
| 6 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 | 293750001 | Tie Wrap 94 mm |
| 8 | 409004000 | Fuse Holder |
| 9 | 515175509 | MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 10 | 515175510 | FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 11 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 12 | 515175282 | Female Terminal |
| 13 | 409011600 | Female Terminal |
| 14 | 409014200 | CLIP - Call your local BRP dealership |
| 15 | 409003900 | Fuse, 20 Amperes This part replaces 278001143. |
| 16 | 293730040 | Mount Dart This part replaces 293730018. |
| 17 | 515175142 | Starter Bracket (PTO) |
| 18 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 19 | 250200008 | Flat Washer With Teflon 8 mm |
| 20 | 515175565 | Electric Starter |
| 21 | 515175441 | Starter Bracket (MAG) |
| 22 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 23 | 234061410 | Flat Washer 6 mm |
| 24 | 515175536 | Protector |
| 25 | 293450275 | Insert This part replaces 415107300. |
| 26 | 207661644 | Hex. Flange Screw M6 X 16 |
| 27 | 293830005 | Rubber Bumper |
| 29 | 503175800 | Washer |
| 30 | 207151244 | Hex. Screw M5 X 12 |
| 31 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 32 | 515175483 | GROUND WIRE - Call your local BRP dealership |
| 33 | 207762044 | Carriage Bolt M6 X 20 |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 250200041 | Lock Washer Serrated M6 This part replaces 250200000. |
| 36 | 207161644 | Hex. Screw M6 X 16 |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 515175482 | Battery Wire |
| 39 | 219704399 | Was 409901700 Tubing (9 mm) |
| 40 | 293740005 | Tape |
| 42 | 278000992 | Open Barrel |
| 43 | 409004000 | Fuse Holder |
| 44 | 410917200 | Fuse, 30 Amperes |
| 45 | 409014200 | CLIP - Call your local BRP dealership |
| 46 | 570151000 | Protection Cap |
| 47 | 278000020 | PROTECTION CAP - Call your local BRP dealership |
| 48 | 232081414 | Hex. Nut M8 |
| 49 | 234181401 | Lock Washer 8 mm |
| 50 | 234081410 | Flat Washer 8 mm |
| 52 | 207161260 | Hex. Cap Screw M6 X 12 |
| 53 | 234061410 | Flat Washer 6 mm |
| 55 | 515176044 | Battery Strap This part replaces 515175475. |
| 56 | 409207700 | Male Terminal Housing (4 circuits) |
| 57 | 409013100 | Male Lock |
| 58 | 409010900 | Male Terminal |
| 59 | 278001223 | Seal |
| 60 | 409013000 | Male Terminal |
| 61 | 278000996 | WIRE SEAL - Call your local BRP dealership |
| 62 | 515175504 | Ring Terminal |
| 63 | 415079200 | Hose |
| 64 | 515175509 | MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 65 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 66 | 515175510 | FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 293750008 | Tie | Wrap 368 mm 293750008 |
