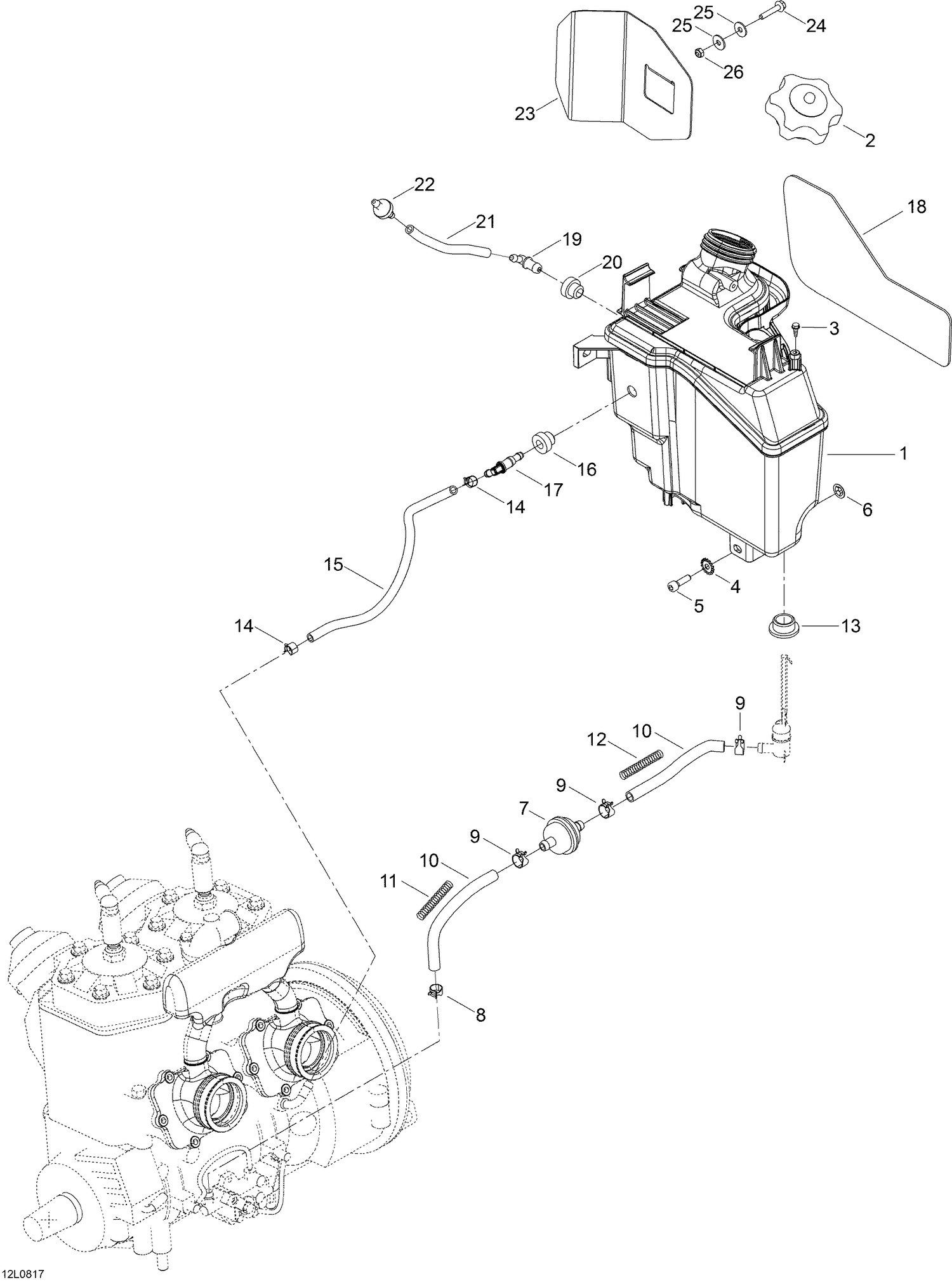

02- Oil Tank And Support
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000111 | OIL TANK - Call your local BRP dealership |
| 2 | 519000033 | CAP - Call your local BRP dealership |
| 3 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 4 | 20017 | Serrated lock washer 6mm |
| 5 | 40052 | Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 6 | 732610072 | Push Nut |
| 7 | 414536500 | Oil filter |
| 8 | 414420700 | Universal Spring Clamp |
| 9 | 414415200 | Clamp |
| 10 | 39046 | Hose |
| 11 | 519000064 | SPRING - Call your local BRP dealership |
| 12 | 519000065 | SPRING - Call your local BRP dealership |
| 13 | 570023000 | Insulated ring |
| 14 | 414554800 | Clamp |
| 15 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 16 | 709200285 | Grommet This part replaces 570135100. |
| 17 | 414580700 | Male Connector |
| 18 | 519000054 | REFLECTIVE SHEET - Call your local BRP dealership |
| 19 | 414580700 | Male Connector |
| 20 | 513032908 | Grommet |
| 21 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 22 | 275500398 | Check valve |
| 23 | 605352865 | Heat shield |
| 24 | 40029 | Hex. screw M6 x 16 |
| 25 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
