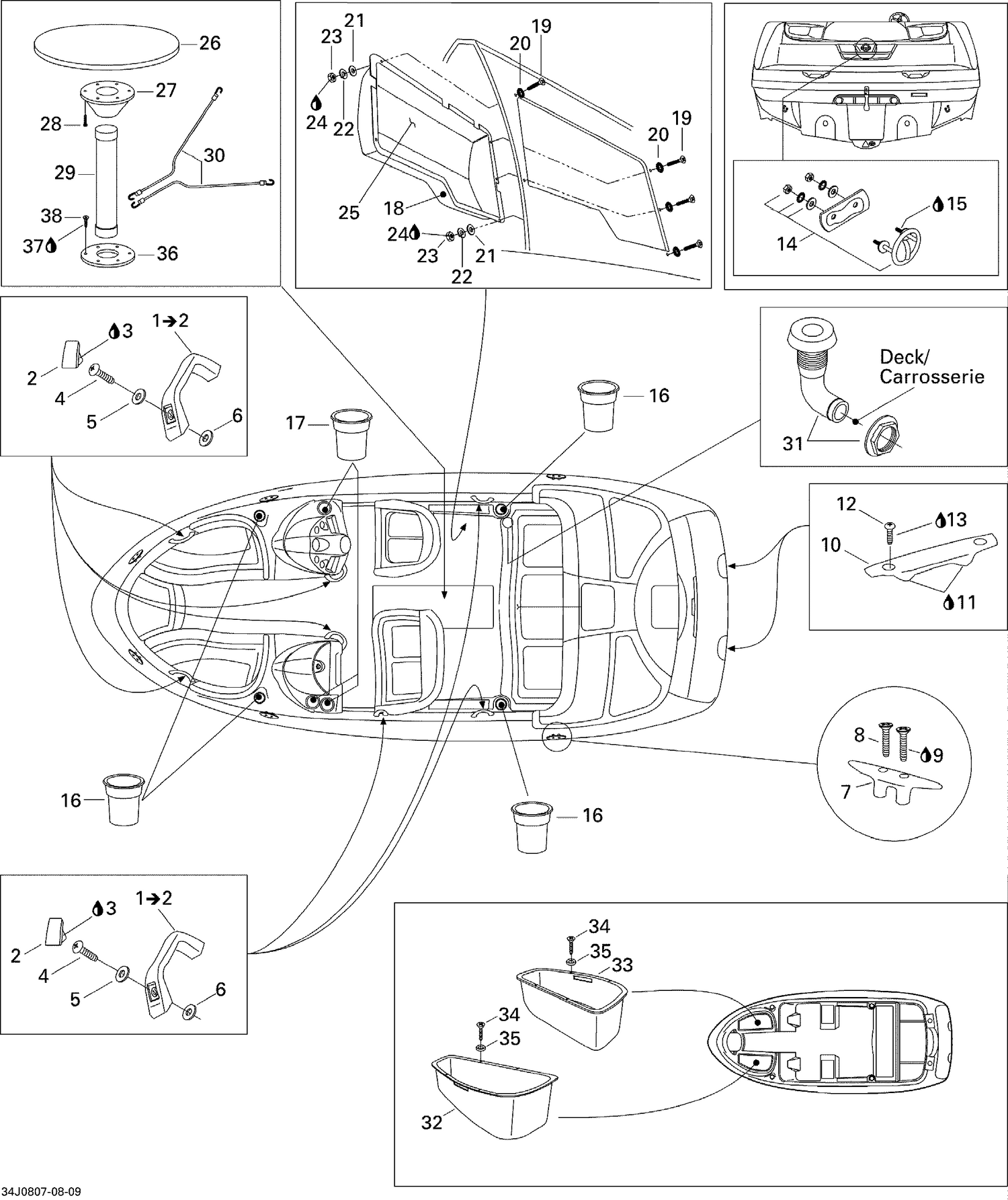

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Snap Cap |
| 4 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 7 |
204070592 |
CLEAT - Call your local BRP dealership |
| 8 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 11 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 12 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
204070206 |
Ski Tow Hook |
| 15 |
293800005 |
Loctite 271, 10 ml |
| 16 |
204072721 |
Holder Cup |
| 17 |
204072216 |
HOLDER CUP, BLACK - Call your local BRP dealership |
| 18 |
204072348 |
Side Storage, Port Side |
| 18 |
204072363 |
Side Storage, Starboard |
| 19 |
204000130 |
Elevator Bolt |
| 20 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
211200025 |
Lock Washer 1/4” |
| 23 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
204072697 |
Lateral Storage Carpet, Starboard |
| 25 |
204072701 |
Lateral Storage Carpet, Port Side |
| 26 |
204072768 |
Cockpit Table |
| 27 |
204071315 |
TABLE MOUNT - Call your local BRP dealership |
| 28 |
209951960 |
TAPPING SCREW M5 X 19 - Call your local BRP dealership |
| 29 |
204070634 |
TABLE POST, LARGE - Call your local BRP dealership |
| 30 |
204070905 |
ICE CHEST STRAP - Call your local BRP dealership |
| 31 |
204072742 |
Drain Fitting 90°, Black |
| 32 |
204072625 |
Storage Tray, Port Side, Beige |
| 33 |
204072626 |
Storage Tray, Starboard, Beige |
| 34 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 35 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 36 |
204071209 |
TABLE BASE - Call your local BRP dealership |
| 37 |
296000309 |
Silicone Sealant 51388, 300 ml |
