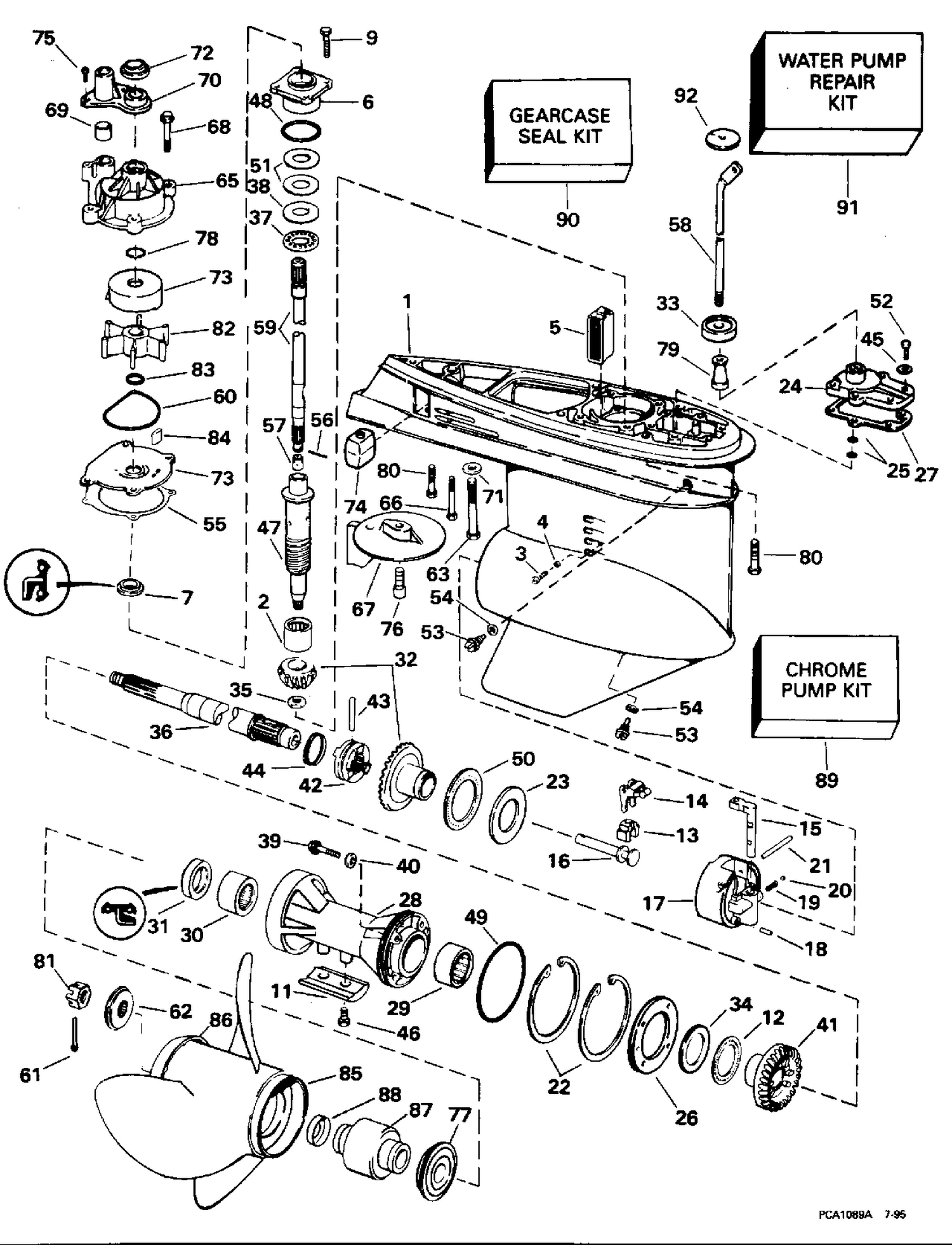

| Ref | Part Number | Description |
|---|
| 1 |
0431642 |
GEARCASE & BEARING ASSY. |
| 7 |
0341280 |
SEAL |
| 10b |
503193199 |
Slider 154 |
| 10c |
208562531 |
Phillips Screw M6 X 25 |
| 10d |
232561434 |
Elastic Stop Nut M6 |
| 10f |
503196874 |
Rail Protector This part replaces 503194249. |
| 10g |
250200140 |
Washer |
| 10h |
207652544 |
Hex. Flange Screw M5 X 25 |
| 10j |
233251434 |
Flanged Elastic Nut M5 |
| 10k |
503190576 |
Rubber Stopper |
| 10m |
503191273 |
Washer |
| 10n |
293150256 |
Rivet Ornit 4.8 X 27.5 |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. |
| 31 |
0342787 |
SEAL |
| 36 |
0436888 |
PROPELLER SHAFT ASSY. |
| 39 |
0316563 |
SCREW |
| 40 |
0332583 |
SCREW & SEAL ASSY. |
| 47 |
0335722 |
DRIVESHAFT, Lower |
| 58 |
0332120 |
SHIFT ROD |
| 58 |
0332121 |
SHIFT ROD |
| 59 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0435765. |
| 59 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0435766. |
| 60 |
0331353 |
Seal, Impeller Housing Plate. |
| 63 |
0331998 |
SCREW, Gearcase to housing |
| 65 |
0435990 |
IMPELLER HOUSING |
| 67 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 73 |
0435027 |
CUP & PLATE |
| 73 |
0435526 |
CHROME CUP & PLATE KIT |
| 76 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 77 |
0127212 |
BAGUE, de butée |
| 78 |
0331188 |
O-Ring |
| 80 |
0331999 |
SCREW, Gearcase housing |
| 85 |
PROPELLER |
Ref: 86 0332393 *Converging Ring 0332393 |
| 89 |
0435526 |
CHROME CUP & PLATE KIT |
| 90 |
5006373 |
GEARCASE SEAL KIT This part replaces 0438278. |
| 91 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 610 |
503196716 |
Rear Axle |
| 630 |
503196949 |
Socket |
| 660 |
503196971 |
Rear Wheel Support |
| 670a |
503190396 |
Ball Bearing |
| 670b |
415129371 |
Retaining Ring |
| 710 |
503196357 |
Washer |
| 730 |
503195748 |
Bolt M10 |
| 735 |
233201466 |
Flanged Elastic Nut M10 |
| 900 |
503194266 |
Tensioner |
| 920 |
503194267 |
Hex. Cap Screw M8 X 95 |
| 930 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1000 |
503192842 |
Front Wheel Shaft |
| 1001a |
503190396 |
Ball Bearing |
| 1001b |
415129371 |
Retaining Ring |
| 1020 |
503192496 |
Washer |
| 1030 |
205505054 |
Socket Screw |
| 1090 |
503195775 |
Shock Lower Shaft |
| 1095a |
503190396 |
Ball Bearing |
| 1095b |
415129371 |
Retaining Ring |
| 1100 |
503194576 |
Spacer |
| 1110 |
503192491 |
Washer |
| 1112 |
605449294 |
Support Plate |
| 1115 |
503194575 |
Spacer |
| 1120 |
205525554 |
Socket Screw |
| 1140 |
503191260 |
Axle Strap |
| 1150 |
503192496 |
Washer |
| 1155 |
503195837 |
Limiter Bussing |
| 1160 |
205503554 |
Socket Head Screw M10 X 35 |
| 1165 |
205506044 |
Screw Socket S,Grip M10 X 60 |
| 1400 |
503194900 |
LH Spring |
| 1410 |
503194901 |
RH Spring |
| 1420 |
503194294 |
LH Support |
| 1430 |
503194295 |
RH Support |
| 1440 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1445 |
503192494 |
Washer |
| 1450 |
233281466 |
Elastic Flang Nut M8 |
| 1470 |
503196336 |
Hook Ass'y |
| 1480 |
207167054 |
Hex. Cap Screw M6 X 70 |
| 1485 |
250200039 |
Flat Washer |
| 0435474 |
5000356 |
G/C Ay*Cv4&Lv4 .50 This part replaces 0435474. |
