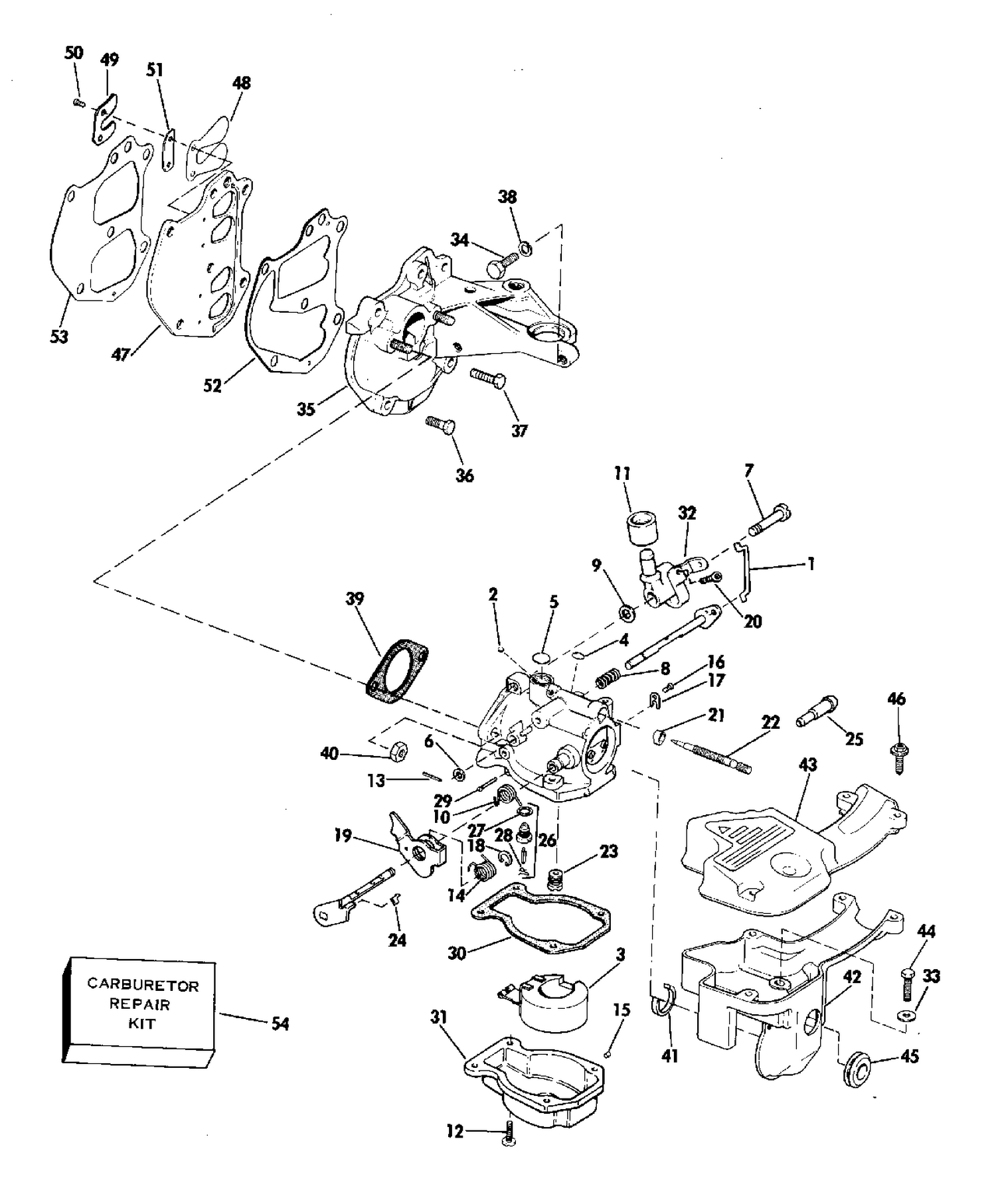

| Ref | Part Number | Description |
|---|
| 1 |
0330192 |
LINK, Cam follower This part replaces 0312830. |
| 12 |
0319008 |
GROMMET, Cable, lower motor cover |
| 14 |
0321734 |
SPRING Choke override |
| 15 |
0319361 |
PLUG, Fuel passage |
| 16 |
0307191 |
SCREW, Choke shaft retaining clip |
| 21 |
0315232 |
RETAINER , Needle valve stbd |
| 22 |
0386152 |
NEDDLE, Slow speed |
| 23 |
0322293 |
ORIFICE PLUG |
| 23 |
0322752 |
ORIFICE PLUG |
| 24 |
0318536 |
SLEEVE |
| 28 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 30 |
0338878 |
GASKET This part replaces 0319011. |
| 31 |
0330881 |
FLOAT CHAMBER This part replaces 0319010. |
| 34 |
0306419 |
SCREW |
| 35 |
0390460 |
MANIFOLD, Intake This part replaces 0386109. |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0306418 |
VIS, ancrage |
| 39 |
0318932 |
JOINT |
| 40 |
0328742 |
NUT This part replaces 0306338. |
| 41 |
0319287 |
SEAL, Air silencer |
| 42 |
0322120 |
BASE, Air silencer |
| 43 |
0330581 |
COVER, Air silencer This part replaces 0388153. |
| 44 |
0314496 |
SCREW, Air silencer |
| 45 |
0320521 |
GROMMET |
| 50 |
0303761 |
SCREW |
| 52 |
0325260 |
GASKET, Leaf plate This part replaces 0318919. |
| 53 |
0318924 |
GASKET, Leaf plate to c'case |
| 0389914 |
0434139 |
CARBURETOR ASSEMBLY This part replaces 0389914. |
| 0390050 |
0390050 |
LEAF PLATE ASSEMBLY |
| 0390773 |
0390773 |
CARBURETOR ASSEMBLY |
