| Ref | Part Number | Description |
|---|
| 1 |
0385003 |
THRU BOLT PACKAGE |
| 3 |
0379623 |
FRAME & FIELD ASSY |
| 4 |
0385006 |
TERMINAL STUD PKG |
| 5 |
0385005 |
COIL ASSEMBLY |
| 6 |
BRUSH |
Ref: 7 0303932 HEX NUT TERMINAL 0303932 |
| 9 |
0385519 |
THRUST WASHER PKG |
| 10 |
0385518 |
HEAD ASSY., Commutator |
| 11 |
BRUSH, |
Grounded |
| 12 |
0308141 |
SPING, Brush |
| 13 |
0379970 |
HEAD ASST .,Drive end |
| 14 |
0278188 |
AIRATURE |
| 19 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311863. |
| 20 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311861. |
| 26 |
0306409 |
VIS, collecteur vers carter-moteur |
| 27 |
0306418 |
VIS, ancrage |
| 29 |
0304789 |
SHOCK ABSORB., Start pin |
| 30 |
0304847 |
JOINT, boulon de démarreur |
| 31 |
0317328 |
BRACKET, Port |
| 33 |
0582996 |
CÂBLE DE BATTERIE This part replaces 0171864. |
| 34 |
0582996 |
CÂBLE DE BATTERIE This part replaces 0171865. |
| 37 |
0385156 |
CABLE ASSEMBLY |
| 39 |
0583925 |
START SWITCH ASSY This part replaces 0171854. |
| 42 |
0122281 |
NUT, Starting switch |
| 43 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 44 |
0311217 |
MANCHON, solénoïde |
| 45 |
0131265 |
SCREW, Solenoid mount |
| 48 |
0121562 |
BRACKET, Solenoid mount |
| 50 |
0121560 |
DECAL, Start |
| 51 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 52 |
0310498 |
WASHER |
| 54 |
0317301 |
BRACKET |
| 55 |
0385155 |
LEAD ASSEMBLY |
| 58 |
0302437 |
NUT |
| 0171845 |
0171845 |

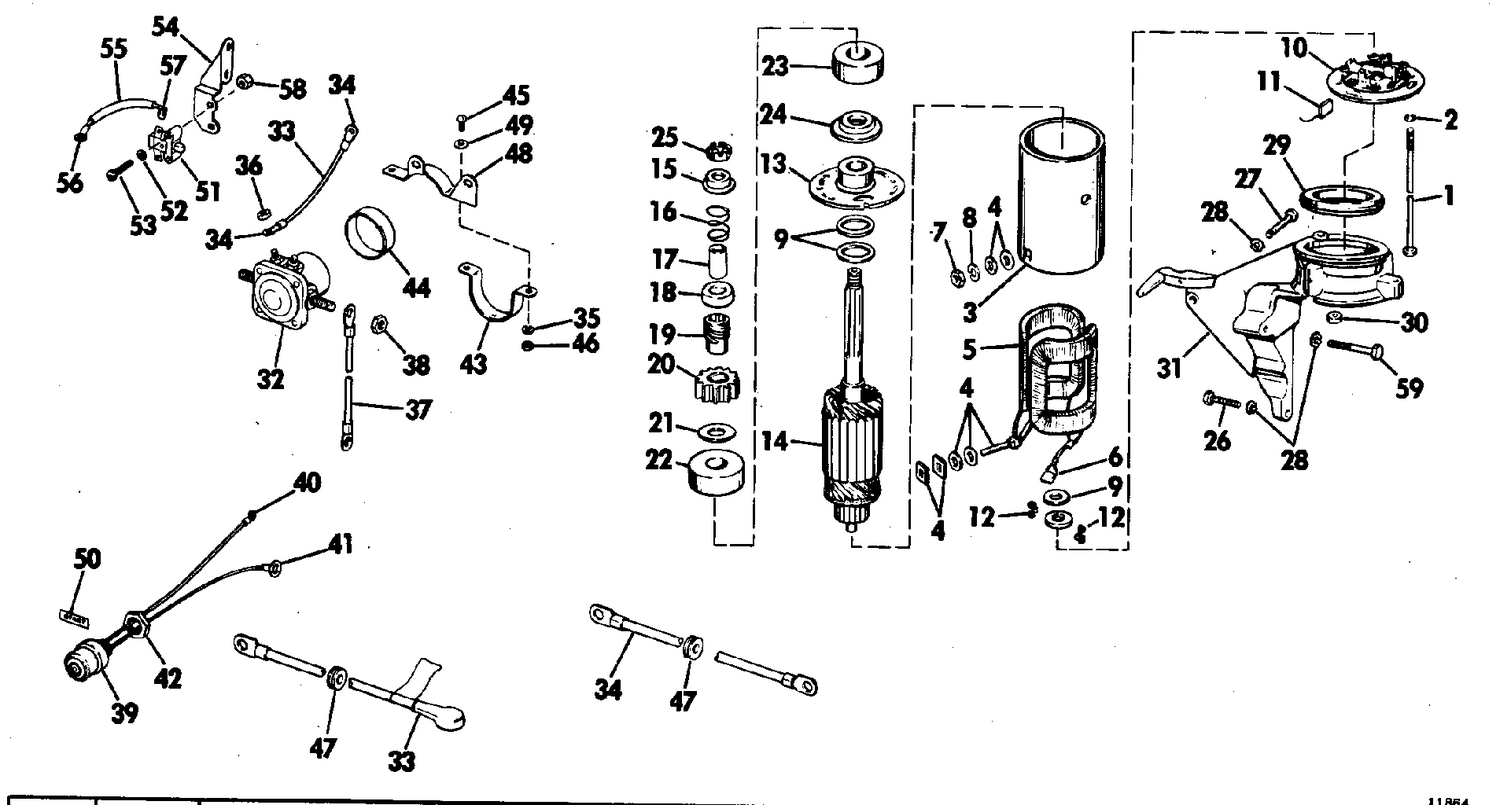

ELECTRIC STARTING KIT Standard |
| 0385401 |
0385401 |
STARTER MOT0R ASSY |
