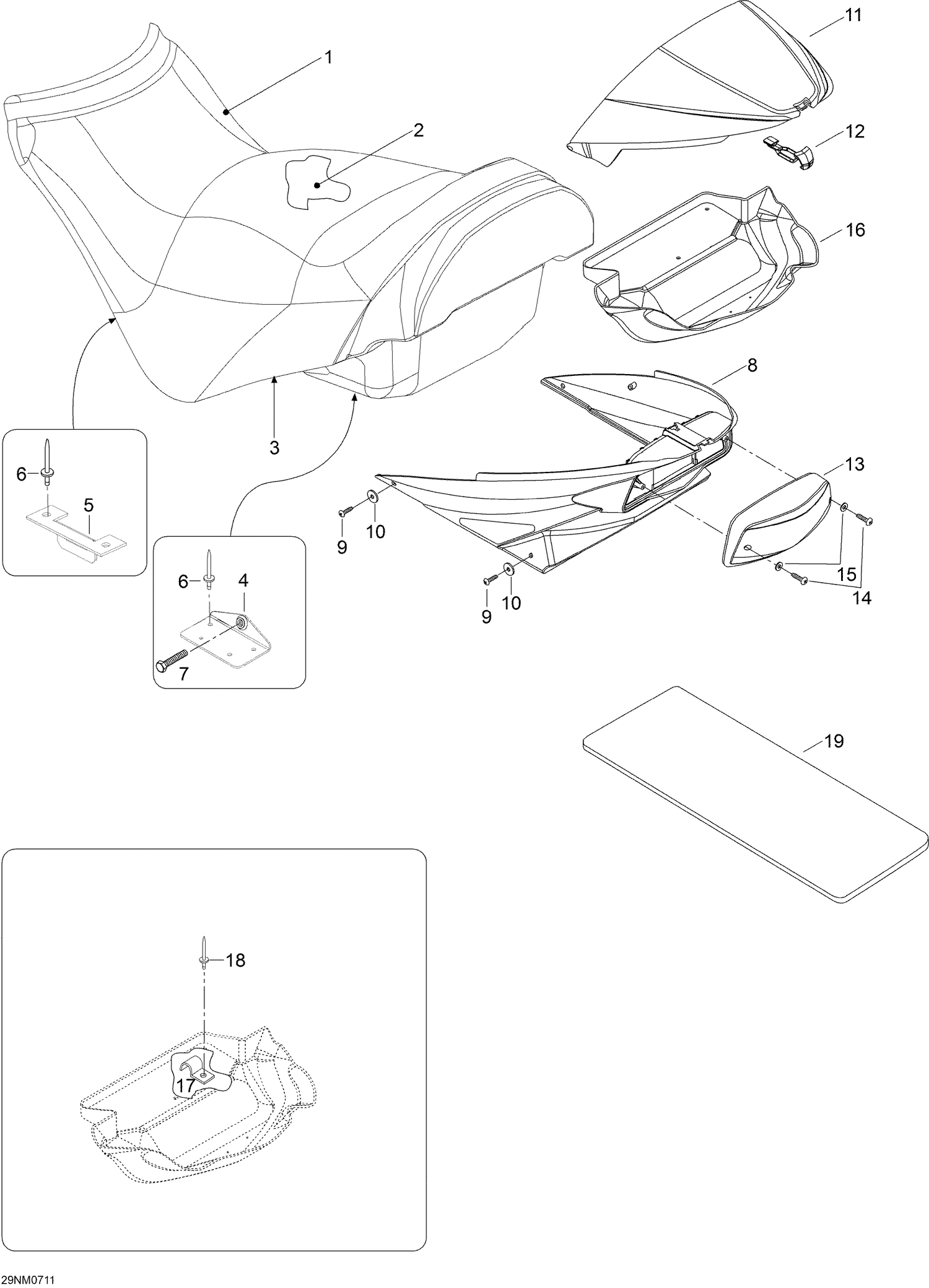

| Ref | Part Number | Description |
|---|
| 2 |
605250094 |
Istuimen pehmuste |
| 3 |
605250095 |
Istuimen pohja |
| 4 |
605352337 |
Kiinnityslevy, istuin |
| 5 |
605452616 |
Istuimen kiinnitin |
| 6 |
36037 |
Pakoputken kannake |
| 7 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 8 |
605354254 |
Tavarasäiliö |
| 9 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 10 |
250200025 |
Washer M5 |
| 11 |
510004631 |
COVER, BLACK - Call your local BRP dealership |
| 12 |
510003917 |
Kiinnike |
| 13 |
605353403 |
Cover plate |
| 14 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 15 |
414516400 |
Washer - Call your local BRP dealership |
| 16 |
510004021 |
BOX LINER - Call your local BRP dealership |
| 17 |
605452665 |
Takaboxin kiinnike |
| 18 |
36036 |
Vetoniitti |
