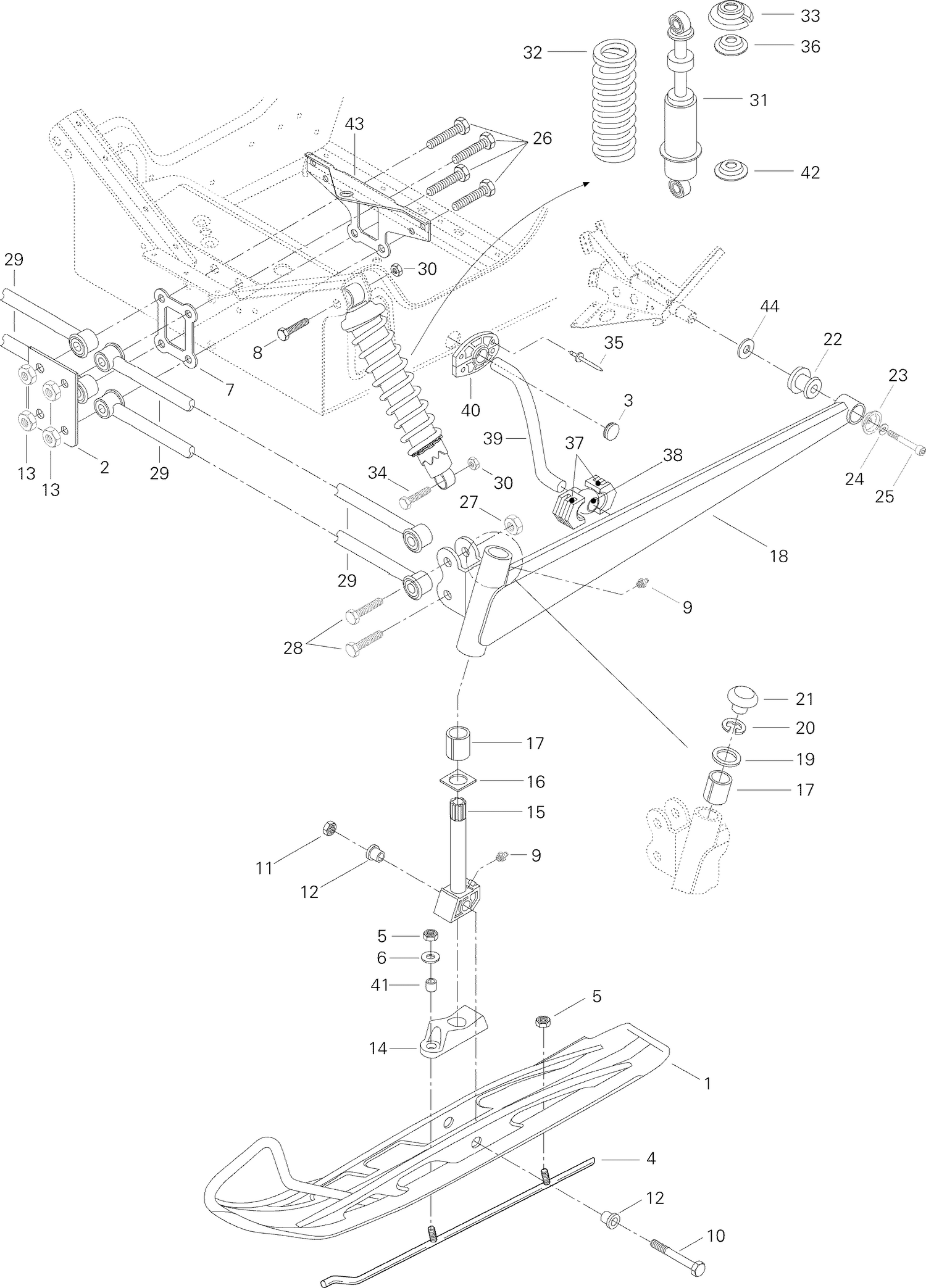

| Ref | Part Number | Description |
|---|
| 1 |
505063910 |
Ski (Welded) |
| 2 |
518306700 |
Support |
| 3 |
414916600 |
Black, Nylon Cap |
| 4 |
505066120 |
Runner |
| 4 |
505066320 |
Carbide Runner |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 6 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 7 |
506113000 |
Link Plate |
| 8 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 9 |
408200700 |
Grease Fitting |
| 10 |
732601176 |
Hex. Screw M12 |
| 11 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 12 |
414530600 |
CUSHION - Call your local BRP dealership |
| 13 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 14 |
570053500 |
Ski Stopper |
| 15 |
506130900 |
Ski Leg |
| 16 |
506081200 |
Wear Plate |
| 17 |
572069900 |
Cushion |
| 18 |
506127010 |
RH Swing Arm |
| 18 |
506127110 |
LH Swing Arm |
| 19 |
506080900 |
Thrust Washer |
| 20 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 21 |
572079100 |
CAP - Call your local BRP dealership |
| 22 |
570062200 |
DAMPER - Call your local BRP dealership |
| 23 |
705007171 |
Cup This part replaces 506115800. |
| 24 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 25 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 |
732601113 |
Hex. Screw M12 x 100 |
| 27 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 28 |
222025075 |
Hex. Screw M12 x 50 |
| 29 |
580623100 |
Arm Ass'y |
| 30 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 31 |
414943100 |
Front Shock |
| 32 |
414956000 |
Shock Spring (Black) |
| 33 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 34 |
207005544 |
Hex. Screw M10 X 55 This part replaces 222005565. |
| 35 |
XXX |
Not Available As Spare Parts |
| 36 |
706200785 |
Cap This part replaces 503141600. |
| 37 |
XXX |
Not Available As Spare Parts |
| 38 |
XXX |
Not Available As Spare Parts |
| 39 |
XXX |
Not Available As Spare Parts |
| 40 |
XXX |
Not Available As Spare Parts |
| 41 |
506117300 |
BUSHING - Call your local BRP dealership |
| 42 |
503165100 |
GUIDE_SPRING - Call your local BRP dealership |
| 43 |
517254900 |
Rear Link Plate |
