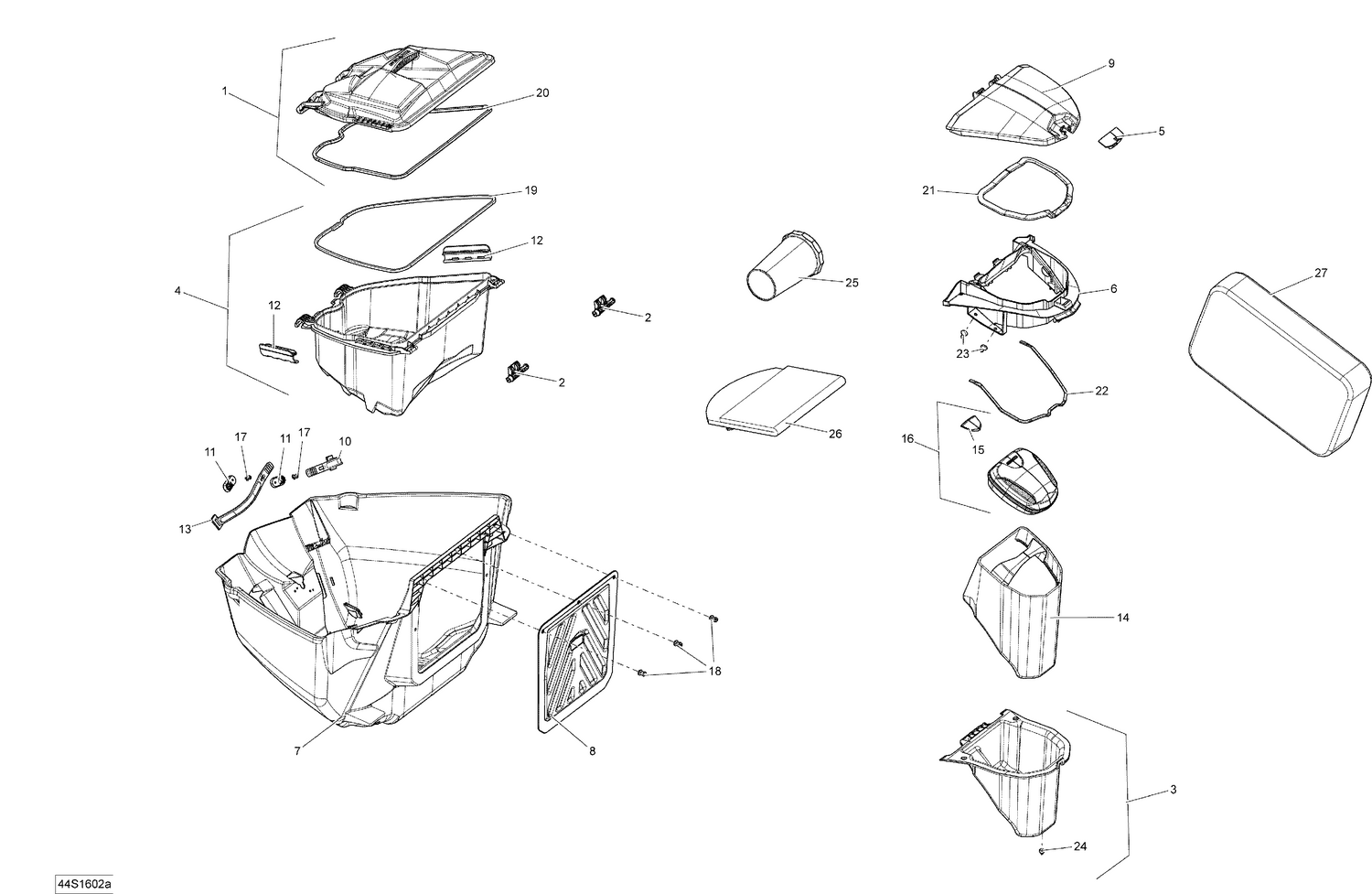

09- Storage Compartments - Without Suspension
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 264000120 | Storage Bin Cover Ass'y |
| 2 | 264000024 | Latch |
| 3 | 264000031 | GLOVE BOX ASS'Y - Call your local BRP dealership |
| 4 | 264000118 | Storage Bin Ass'y |
| 5 | 264000164 | Black, Latch This part replaces 264000091. |
| 6 | 264000112 | GLOVE BOX EXT. - Call your local BRP dealership |
| 7 | Not | Available As Spare Part - Not Available |
| 8 | 264000114 | DOOR COMPARTMENT - Call your local BRP dealership |
| 10 | 269502417 | Strap This part replaces 269500408. |
| 11 | 269500521 | Hook |
| 12 | 269501609 | Clip |
| 13 | 269502145 | Strap |
| 14 | 291002761 | PROTECTION LINER - Call your local BRP dealership |
| 15 | 291002793 | SEA-DOO DECAL - Call your local BRP dealership |
| 16 | 291002814 | REMOVABLE CASE ASS'Y - Call your local BRP dealership |
| 17 | 293150027 | Avdel Rivet |
| 18 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 19 | 219704374 | Gasket 1000Mm Long |
| 20 | 293250210 | NEOPRENE SEAL - Call your local BRP dealership |
| 21 | 293250367 | GASKET - Call your local BRP dealership |
| 22 | 219704381 | SEAL 1000MM LONG - Call your local BRP dealership |
| 23 | 293730011 | Black, Dart |
| 24 | 293830005 | Rubber Bumper |
| 25 | 295100330 | Safety Kit |
| 26 | 269001936 | Bag |
