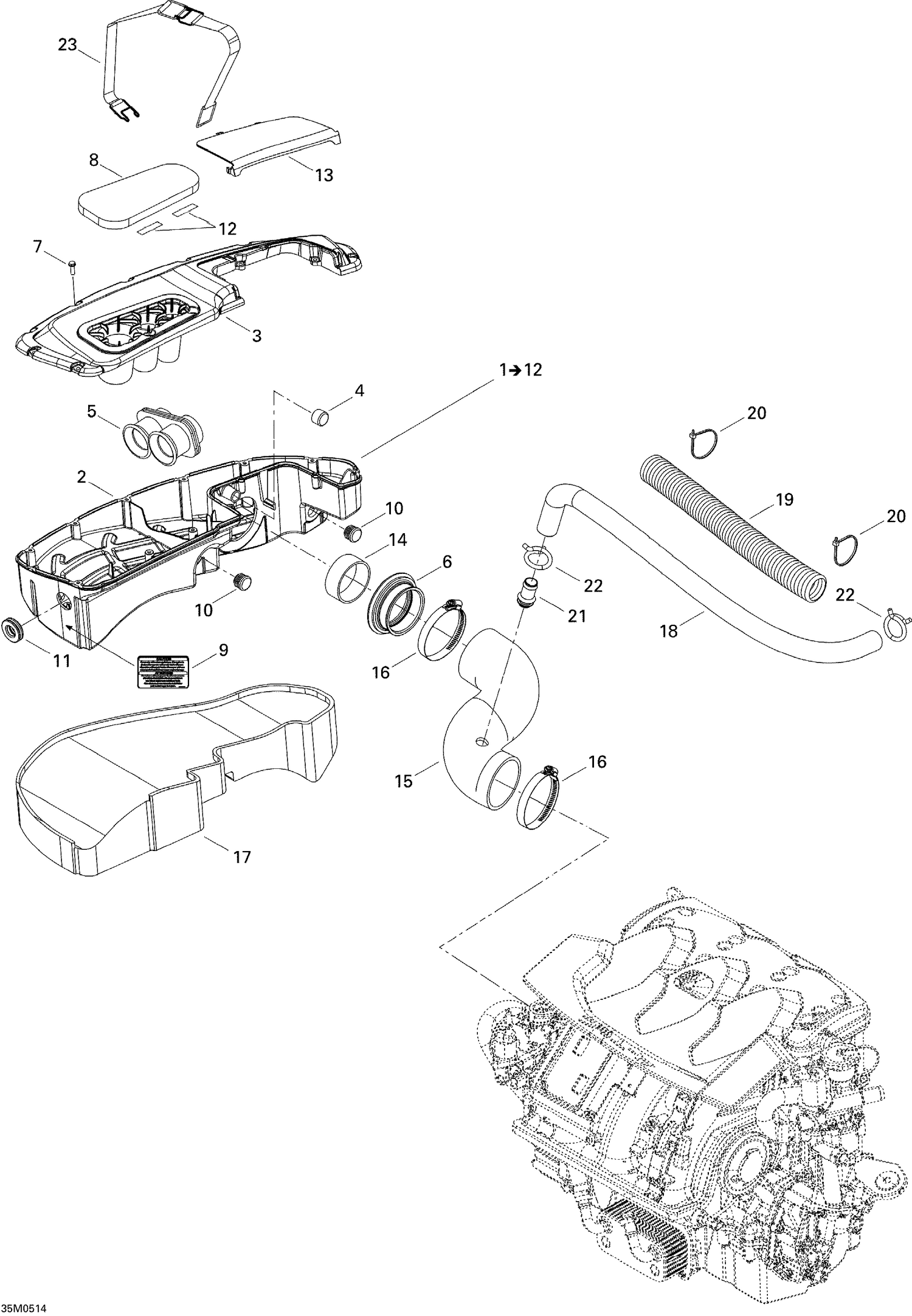

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Lower Shell |
| 3 |
Not |
Available As Spare Part - Upper Shell |
| 4 |
504151825 |
Cap |
| 5 |
273000107 |
Inlet Tube |
| 6 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 7 |
243141680 |
Hex. Screw M4.8 X 1.8 |
| 8 |
508000251 |
AIR FILTER - Call your local BRP dealership |
| 9 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 10 |
572110800 |
CAP, BLACK - Call your local BRP dealership |
| 11 |
570065500 |
GROMMET - Call your local BRP dealership |
| 12 |
415110900 |
VELCRO 1/2? - Call your local BRP dealership |
| 13 |
508000253 |
Door |
| 14 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 15 |
508000396 |
Hose Intake |
| 16 |
293650006 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 17 |
508000324 |
Air Intake Support |
| 18 |
508000442 |
Hose |
| 19 |
219704413 |
Was 415084700 Protective Shield |
| 20 |
414115200 |
Tie-Rap 180 mm |
| 21 |
273000234 |
Breather Valve This part replaces 273000195. |
| 22 |
293650115 |
Spring Clamp |
