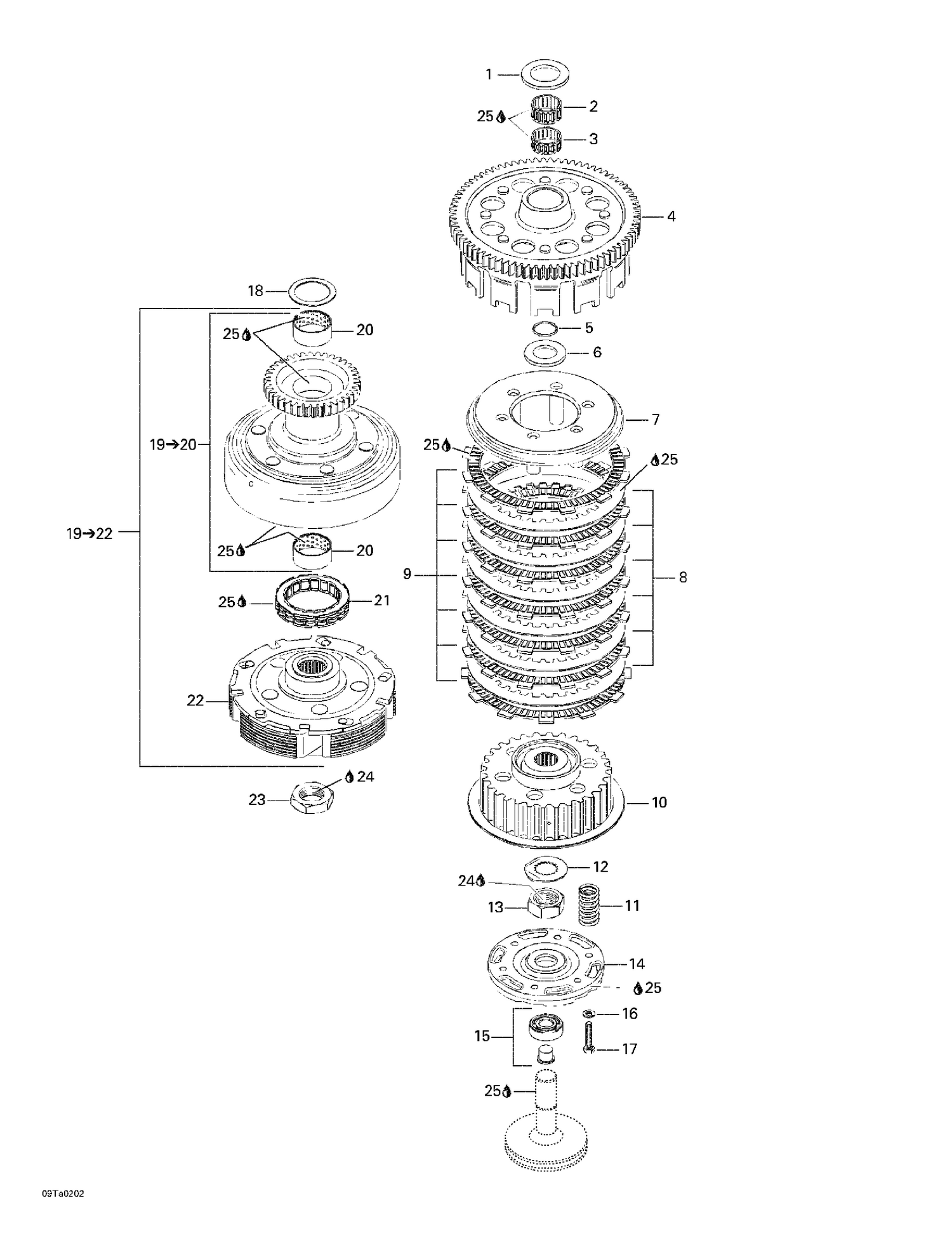

05- Clutch
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711227390 | Thrust Washer |
| 2 | 420632070 | Needle Bearing This part replaces 711632070. |
| 3 | 711232655 | Needle Cage |
| 4 | 711659203 | Clutch Drum |
| 5 | 293300018 | O-RING - Call your local BRP dealership |
| 6 | 420227600 | THRUST WASHER - Call your local BRP dealership |
| 7 | 711659230 | Inner Plate |
| 8 | 711259915 | Plate 1.5 mm |
| 9 | 711259907 | Lamella 3 mm |
| 10 | 711259876 | Clutch Hub |
| 11 | 711239741 | Clutch Spring |
| 12 | 711245320 | Tab Washer |
| 13 | 711242605 | Nut M18 |
| 14 | 420259131 | Retaining Plate This part replaces 711259131. |
| 15 | 711259143 | Hub Thrust ass'y with Ball Bearing |
| 16 | 420945750 | Lock Washer |
| 17 | 711241770 | Hex. Screw M5 x 25 |
| 18 | 711427130 | Thrust Washer |
| 20 | 711233765 | Clutch Bushing |
| 21 | 711659240 | Sprag Clutch |
| 22 | 711659180 | Clutch Hub |
| 23 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 711842234. |
| 24 | 293800060 | Loctite 243, 10 ml |
