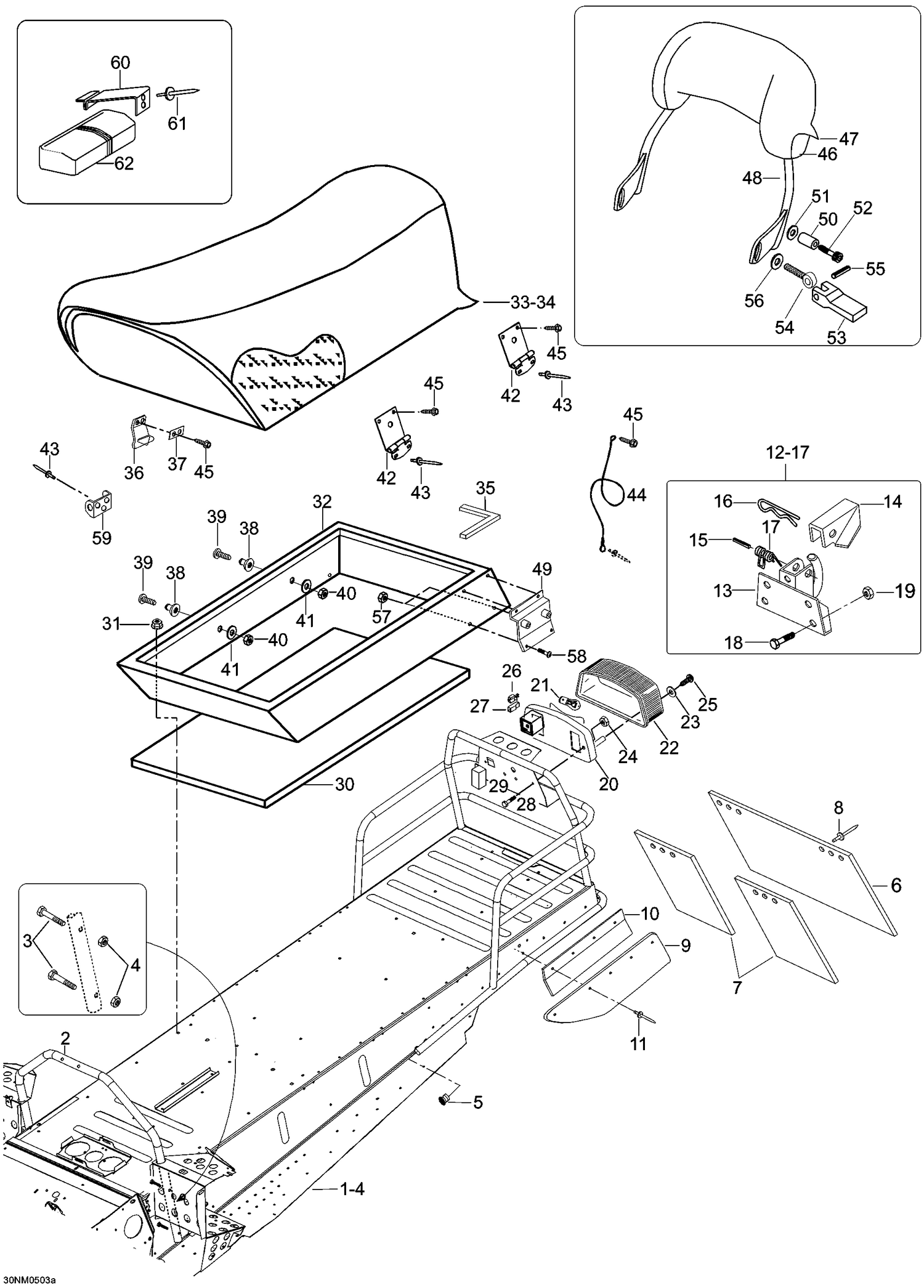

| Ref | Part Number | Description |
|---|
| 2 |
5145379 |
Handle steering supp. |
| 3 |
40002 |
Screw M6 x 40 |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 5 |
28136 |
Plug |
| 6 |
5340055 |
Snow guard |
| 7 |
5341770 |
Support - Call your local BRP dealership |
| 8 |
36037 |
Rivet |
| 9 |
5340136 |
Snow Guard Side - Call your local BRP dealership |
| 10 |
5340532 |
Side Snow Guard Guide - Call your local BRP dealership |
| 11 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 13 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 14 |
5440767 |
Latch |
| 15 |
41012 |
Cotter |
| 16 |
41029 |
Pin |
| 17 |
545693 |
SPRING - Call your local BRP dealership |
| 18 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 19 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 21 |
520000758 |
Bulb This part replaces 410504000. |
| 22 |
414513700 |
Lens |
| 23 |
414516400 |
Washer - Call your local BRP dealership |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 25 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 26 |
42178 |
Female terminal |
| 27 |
42179 |
Connector housing |
| 28 |
40032 |
Screw M6 x 30 |
| 29 |
5345713 |
Cover - Call your local BRP dealership |
| 30 |
5346331 |
Cover for underseat storage - Call your local BRP dealership |
| 31 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 32 |
5246336 |
Seat box |
| 34 |
605148843 |
Cover |
| 35 |
390002 |
Seal |
| 36 |
5346383 |
LATCH - Call your local BRP dealership |
| 37 |
5446848 |
Support plate |
| 38 |
605449087 |
Counter roll |
| 39 |
40168 |
Screw M4 x 25 |
| 40 |
33008 |
Nut elastic M4 |
| 41 |
20037 |
Washer 4mm |
| 42 |
5446374 |
Hinge for seat ass'y - Call your local BRP dealership |
| 43 |
36083 |
Rivet |
| 44 |
293750070 |
Seat Retainer Cable This part replaces 546777. |
| 45 |
40888 |
Screw 4,2 x 19 |
| 46 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 47 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 48 |
5241820 |
Backrest |
| 49 |
5341818 |
L.H. Fixing plate |
| 49 |
5341889 |
R.H. Fixing plate |
| 50 |
5441814 |
Sleeve |
| 51 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 52 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 53 |
5243419 |
Locking Lever |
| 54 |
517250100 |
EYE BOLT - Call your local BRP dealership |
| 55 |
414821400 |
Pin |
| 56 |
20023 |
Washer 10mm |
| 57 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 58 |
40063 |
Screw M5 x 12 |
| 59 |
548824 |
FASTENING - Call your local BRP dealership |
| 60 |
539455 |
TOOLKIT SUPPORT - Call your local BRP dealership |
| 61 |
36005 |
Rivet |
