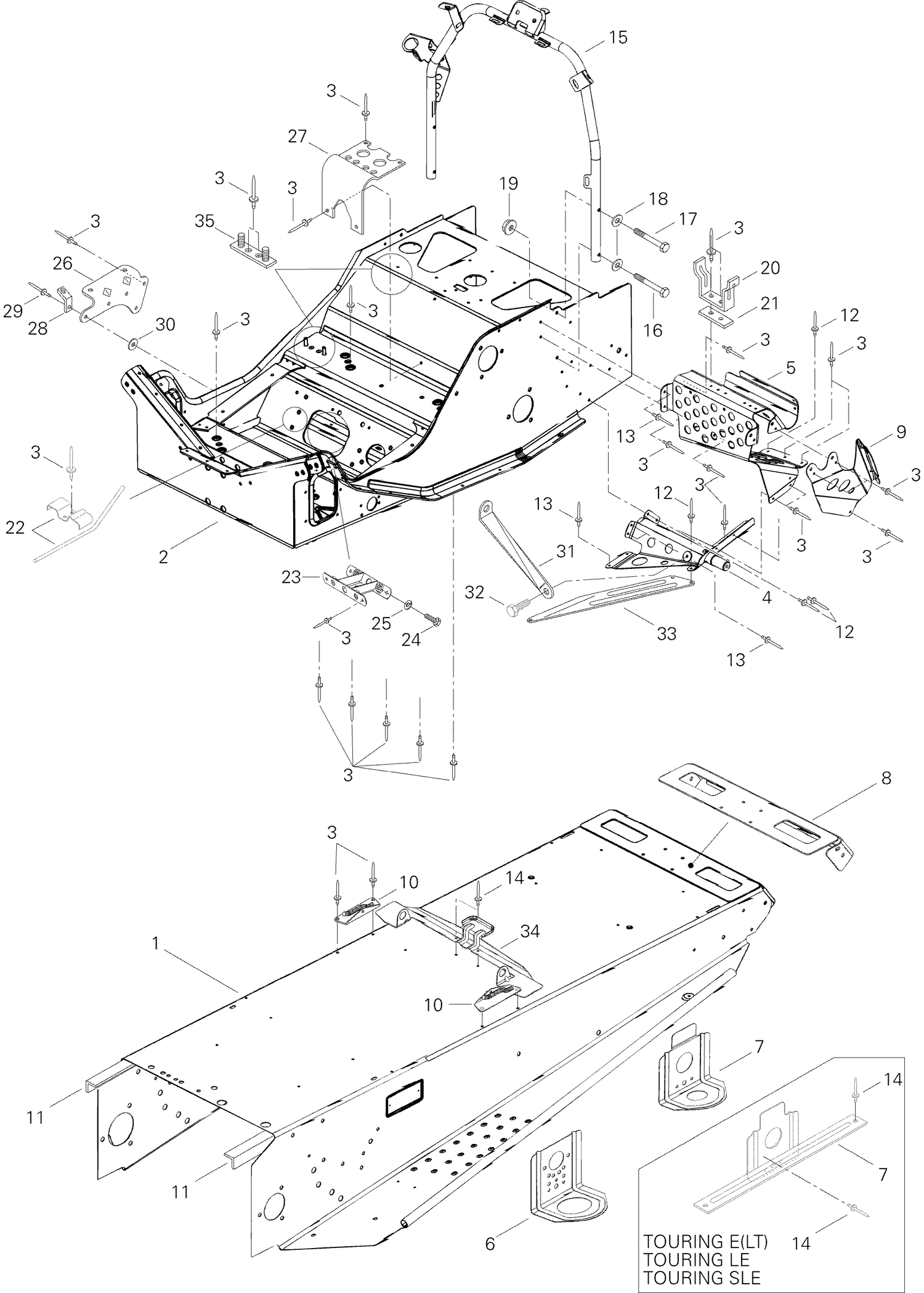

09- Frame and Components E LT
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518313250 | Tunnel |
| 2 | 518313044 | Front Member |
| 3 | 390402200 | Pop Rivet 3/16" |
| 4 | 518309004 | LH Support |
| 4 | 518309005 | RH Support |
| 5 | 518313804 | RH Front Footrest |
| 5 | 518313805 | LH Front Footrest |
| 6 | 518312910 | Front Bracket |
| 7 | 518313800 | LH Rear Bracket |
| 7 | 518313801 | RH Rear Bracket |
| 8 | 518310211 | Cap-End |
| 9 | 518308714 | Upper Plate L.H |
| 9 | 518308715 | Upper Plate R.H |
| 10 | 517266900 | RH Tank Bracket |
| 10 | 517267000 | LH Tank Bracket |
| 11 | 518310000 | LH Tunnel Reinforcement |
| 11 | 518310001 | RH Tunnel Reinforcement |
| 12 | 390909200 | Avex Rivet |
| 13 | 390909100 | Avex Rivet |
| 14 | 390402400 | Pop Rivet 3/16" |
| 15 | 518309200 | Handle Steering Support |
| 16 | 207064044 | Hex. Screw M6 X 40 This part replaces 222064065. |
| 17 | 207063544 | Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 18 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 | 518202100 | Belt Guard Bracket |
| 21 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 22 | 517276100 | Guide Rope |
| 23 | 518304741 | Reinf. Plate |
| 24 | 207182044 | Hex. Screw M8 X 20 This part replaces 222082065. |
| 25 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 26 | 518315900 | Muffler Support |
| 27 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 28 | 514054522 | Spring Bracket This part replaces 514034000. |
| 29 | 390402300 | Pop Rivet 3/16" |
| 30 | 517225900 | Flat Washer |
| 31 | 518310900 | LH Reinforcement |
| 31 | 518311000 | RH Reinforcement |
| 32 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 33 | 518312929 | RH Reinf. Plate |
| 33 | 518312930 | LH Reinf. Plate |
| 34 | 518310208 | Seat Bracket |
