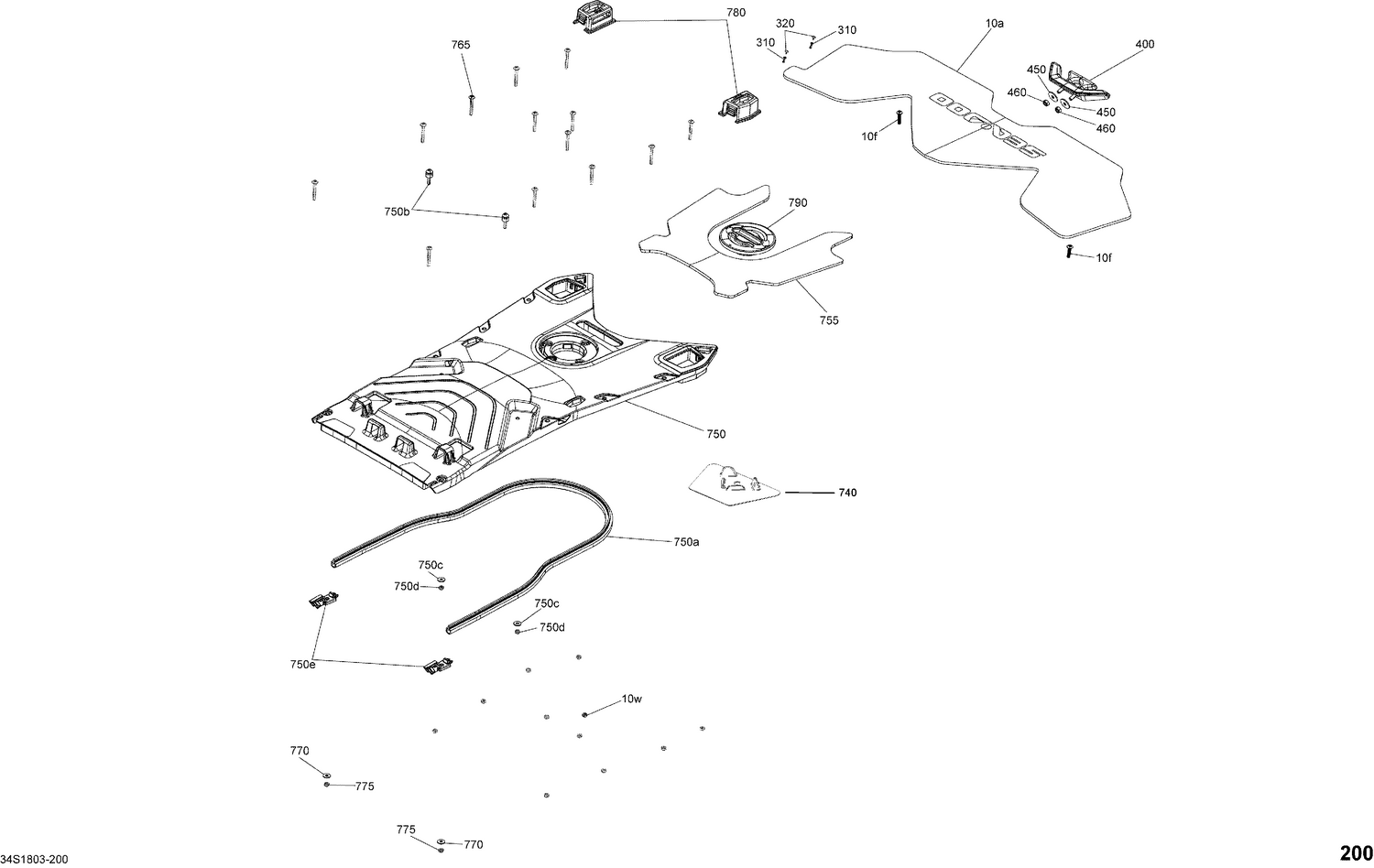

09- Body Rear Part - RXT Package STD
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 291004509 | Rear Plat-Form Carpet |
| 10f | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
| 10w | 291006093 | Nut Housing M6 Ass'y This part replaces 291004813. |
| 310 | 293150016 | Rivet 1/8" |
| 320 | 293000014 | Black, Snap Cap |
| 400 | 291004597 | Cleat |
| 450 | 234082600 | Flat Washer 8 mm, Stainless |
| 460 | 232581200 | Hex. Elastic Nut M8 Brass |
| 740 | 291004941 | Hose Protector |
| 750a | 219704366 | Was 293200062 Seal |
| 750b | 291004611 | STUD - Call your local BRP dealership This part replaces 291004611. |
| 750c | 234062600 | Flat Washer M6, Stainless |
| 750d | 232561200 | Brass Elastic Stop Nut M6 |
| 750e | 291004717 | Seal |
| 755 | 291004668 | Black, Mat Cover |
| 765 | 250000827 | Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 770 | 234062600 | Flat Washer M6, Stainless |
| 775 | 232561200 | Brass Elastic Stop Nut M6 |
| 780 | 291005157 | Cargo Base This part replaces 291004549. |
