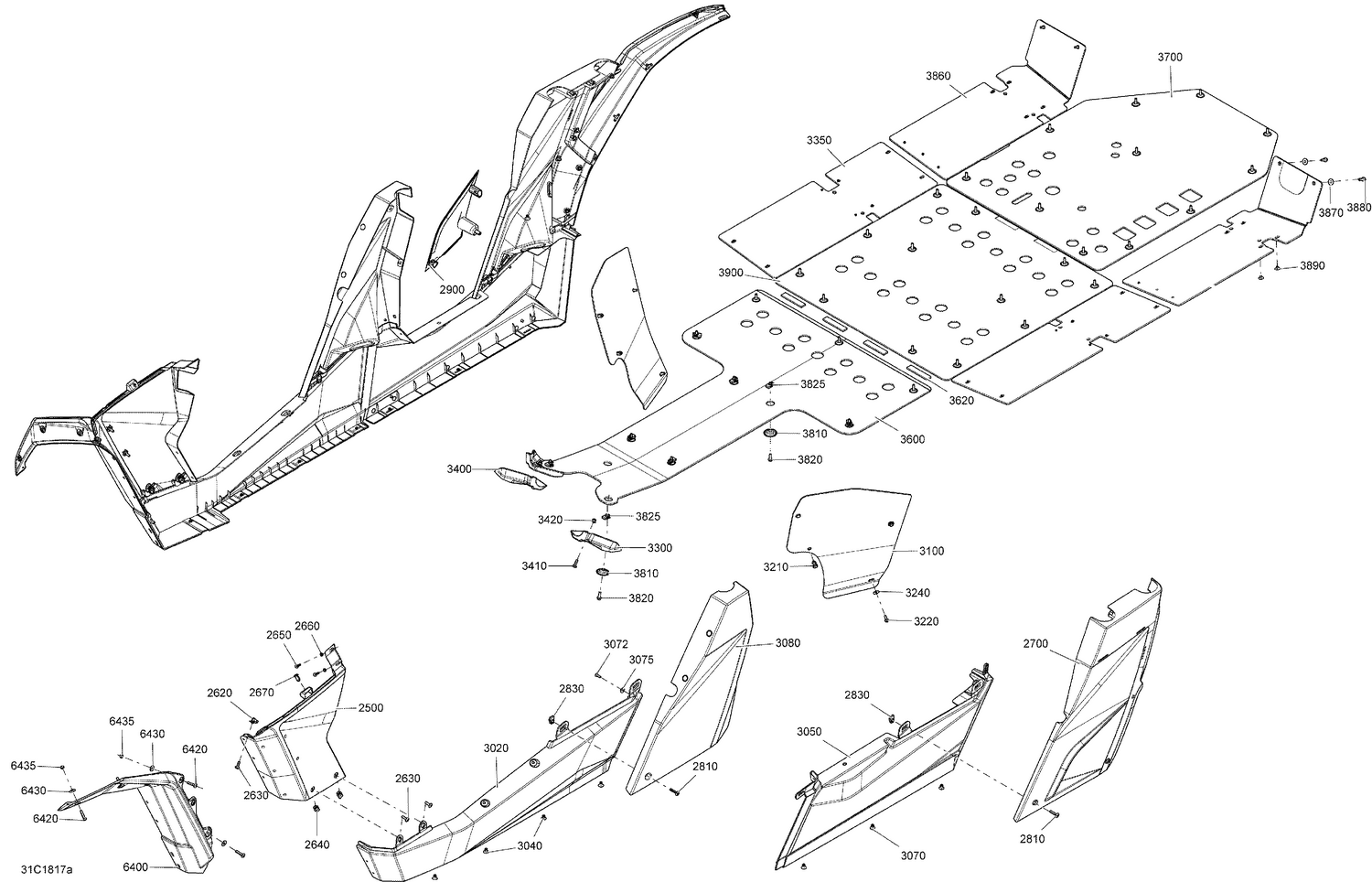

09- Body Central Part Maverick MAX - Package DPS

09- Body Central Part Maverick MAX - Package DPS

Parts (43)

RefPart NumberDescription
2500 705007358 White, LH Front Lateral Pannel
2500 705007359 White, RH Front Lateral Pannel
2620 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
2630 250000722 Torx Screw M6 X 20
2640 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
2650 250000760 Torx Screw Truss Head K50X20 T20
2660 234051410 Flat Washer M5
2670 293150230 Tuflok Plastic Rivet This part replaces 293150089.
2700 705007362 White LH Rear Lateral Panel
2700 705008458 White RH Rear Lateral Panel
2810 250000843 Torx Truss Screw M6 X 30
2820 250000748 Torx Screw M6 X 45
2830 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
2900 705007419 WHITE RH PANEL COVER - Call your local BRP dealership
3020 705005423 Black, LH Lower Panel
3020 705005424 Black, RH Lower Panel
3040 293150104 Pop Rivet 3/16"
3050 705005425 Black, LH Rear Lower Panel
3050 705005426 Black, RH Rear Lower Panel
3070 293150104 Pop Rivet 3/16"
3072 250000720 Torx Screw K50 X 16
3075 250200025 Washer M5
3080 705007421 White LH Center Cage Panel
3080 705007422 White RH Center Cage Panel
3100 705007827 INNER FENDER - Call your local BRP dealership
3210 293150230 Tuflok Plastic Rivet This part replaces 293150089.
3220 210261650 Hex. Flange Screw M6 X 16
3240 234062670 Stainless Steel Flat Washer
3300 705006038 LH BUMPER SKID CAP - Call your local BRP dealership
3350 705008421 Side Protector Plate
3400 705006039 RH BUMPER SKID CAP - Call your local BRP dealership
3410 250000712 Torx Screw M6 X 20
3420 233261494 Hex. Flange Elastic Nut M6
3600 705005798 Front Skid Plate
3620 291001932 Pad
3700 705005480 Rear Skid Plate
3810 705007171 Cup
3820 210262050 Hexagonal Head Screw
3825 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
3860 705007038 RH Lateral Skid Plate
3870 250200097 Flat Washer
3880 210262050 Hexagonal Head Screw
3890 293150104 Pop Rivet 3/16"
