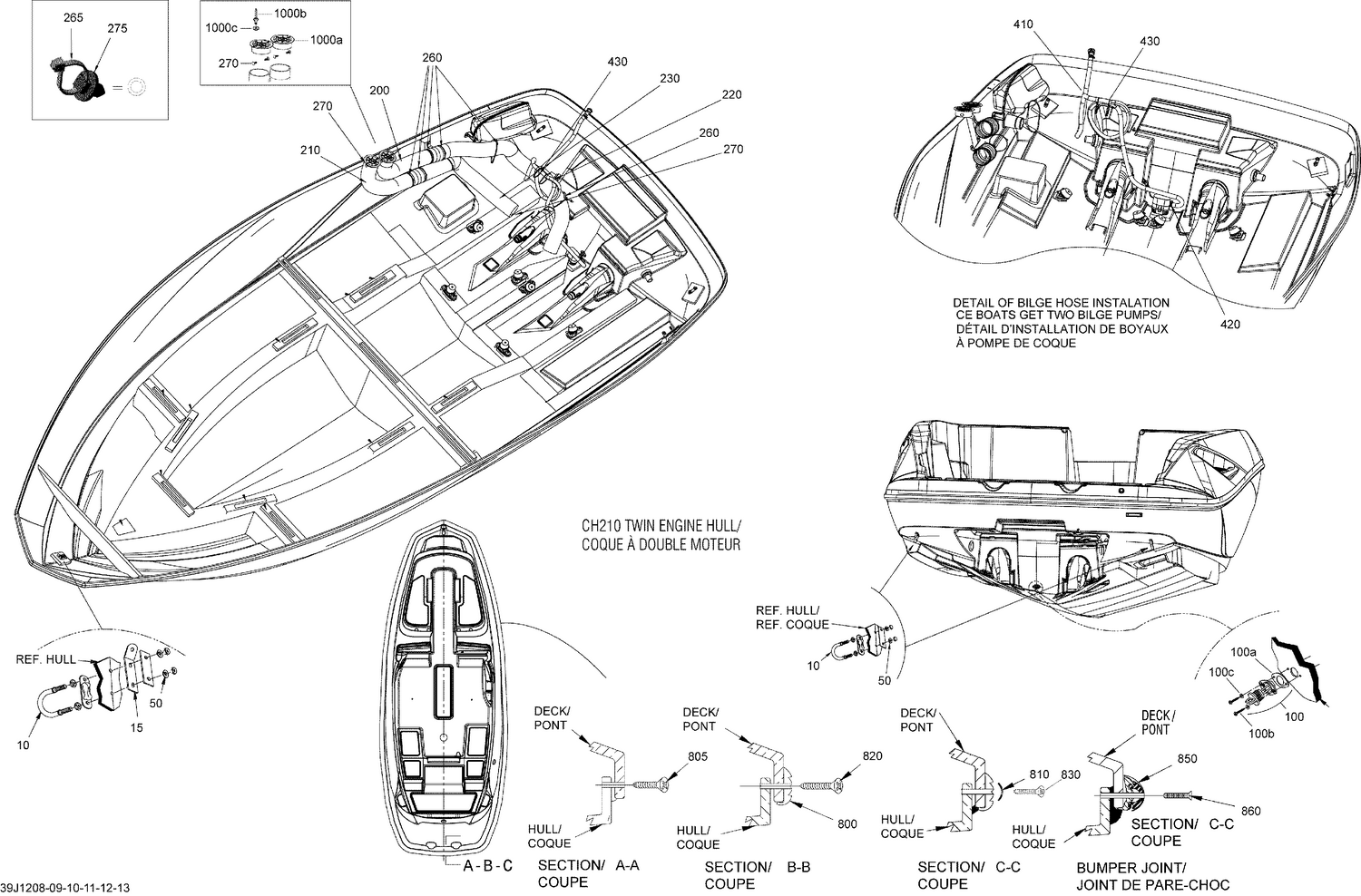

| Ref | Part Number | Description |
|---|
| 10 |
204050336 |
BOW EYE KIT 1/2? - Call your local BRP dealership |
| 15 |
204050722 |
BRACKET-TIE DOWN - Call your local BRP dealership |
| 50 |
204100048 |
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 100 |
292000187 |
Drain Plug |
| 100a |
293250030 |
GASKET - Call your local BRP dealership |
| 100b |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 100c |
234041600 |
Flat Washer 4 mm, Stainless |
| 200 |
219704358 |
Was 204050122 Vent Hose 4" |
| 210 |
219704358 |
Was 204050122 Vent Hose 4" |
| 220 |
219704358 |
Was 204050122 Vent Hose 4" |
| 230 |
219704358 |
Was 204050122 Vent Hose 4" |
| 260 |
293750047 |
Tie Rap, 533 mm |
| 265 |
414115200 |
Tie-Rap 180 mm |
| 270 |
293730006 |
Black, Dart |
| 275 |
293730040 |
Mount Dart |
| 410 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 420 |
293650016 |
Tridon Clamp |
| 430 |
414115200 |
Tie-Rap 180 mm |
| 800 |
262000199 |
BUMPER, BLACK - Call your local BRP dealership |
| 805 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 810 |
204050767 |
BUMPER TRIM, INOX. - Call your local BRP dealership |
| 820 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 830 |
250000395 |
PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership |
| 850 |
XXX |
Not Available As Spare Parts |
| 860 |
XXX |
Not Available As Spare Parts |
| 1000a |
204050637 |
VENT GRILL 4 - Call your local BRP dealership |
| 1000b |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
