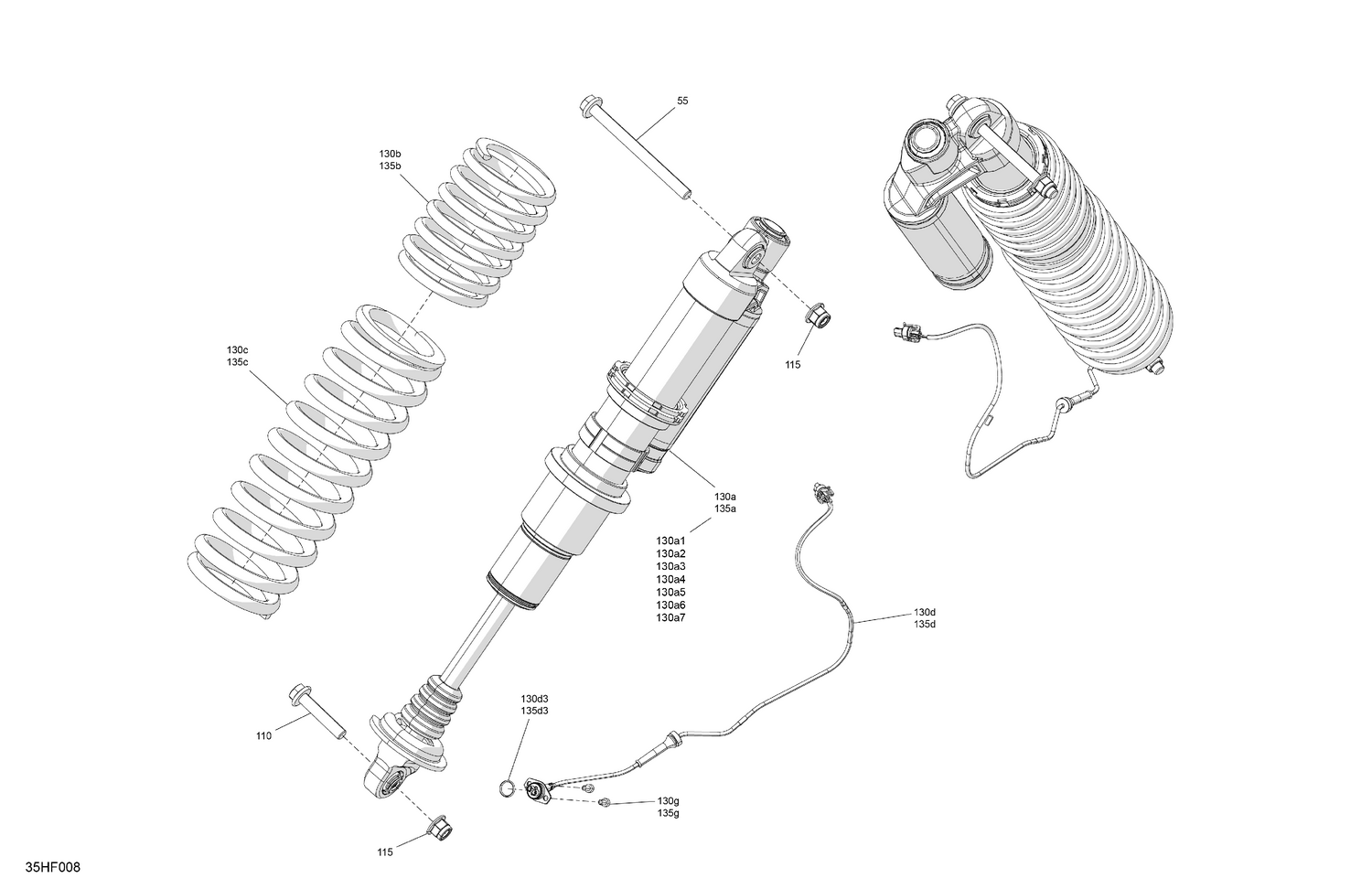

05- Suspension - Front Shocks
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 250001195 | Elastic Flange Nut M12 |
| 130a1 | 715900337 | Spherical Bearing |
| 130a2 | 706004078 | Ball Joint |
| 130a3 | 715900338 | O-Ring Bushing |
| 130a4 | 715900480 | Circlip |
| 130a5 | 715900481 | Reducer |
| 130a6 | 715900594 | Crossover Ring |
| 130a7 | 715900591 | Spring Coupler Long |
| 130b | 706205789 | Deep Black, Compression Spring |
| 130c | 706205343 | Deep Black, Compression Spring |
| 130d3 | 293300213 | O Ring |
| 130g | 205551060 | Socket Head Screw M5 X 10 |
| 135a | 706204824 | RH Front Adjustable Shock Absorber |
| 135b | 706205789 | Deep Black, Compression Spring |
| 135c | 706205343 | Deep Black, Compression Spring |
| 135d3 | 293300213 | O Ring |
