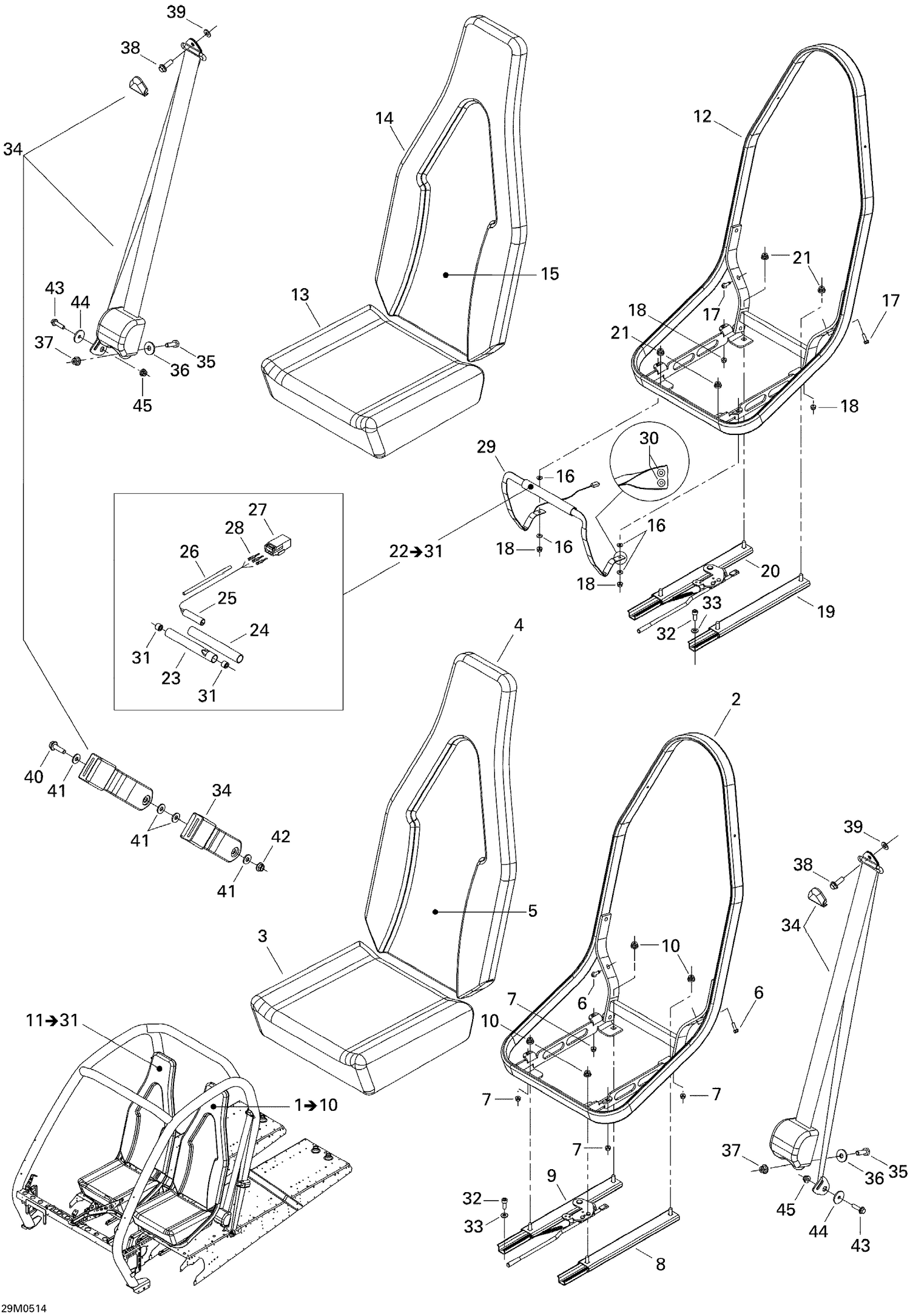

09- Seat
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 510004184 | Seat Frame |
| 3 | 510004185 | Cushion Ass'y |
| 4 | 510004186 | Backrest Ass'y |
| 5 | 510004271 | Cover Backrest |
| 6 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 510004601 | LH Rail |
| 9 | 510004272 | RH Rail |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 510004184 | Seat Frame |
| 13 | 510004343 | Cushion Ass'y |
| 14 | 510004186 | Backrest Ass'y |
| 15 | 510004271 | Cover Backrest |
| 16 | 224061121 | Flat Washer |
| 17 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 510004601 | LH Rail |
| 20 | 510004272 | RH Rail |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | Not | Available As Spare Part - Handle Tube |
| 24 | Not | Available As Spare Part - Handle Grip |
| 25 | Not | Available As Spare Part - Heater |
| 26 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 27 | 515175494 | Male Housing, 3 Circuits |
| 28 | 515175232 | Male Terminal |
| 29 | 510004454 | Strap |
| 30 | 510004455 | Eyelet |
| 31 | 510004456 | Stopper |
| 32 | 205582044 | Scotch Grip Socket Screw M8 X 20 |
| 33 | 234081410 | Flat Washer 8 mm |
| 34 | 510004240 | Safety Belt |
| 35 | 207103044 | Hex. Screw M10 X 30 |
| 36 | 512059057 | WASHER - Call your local BRP dealership |
| 37 | 233201414 | Hex. Flange Elastic Nut M10 |
| 38 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 39 | 234001410 | Flat Washer 10 mm |
| 40 | 207503544 | Hex. Flange Screw M10 X 35 |
| 41 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 42 | 233101414 | Hex. Flange Nut M10 |
| 43 | 207683044 | Hex. Flange Screw M8 X 30 |
| 44 | 517078700 | WASHER - Call your local BRP dealership |
