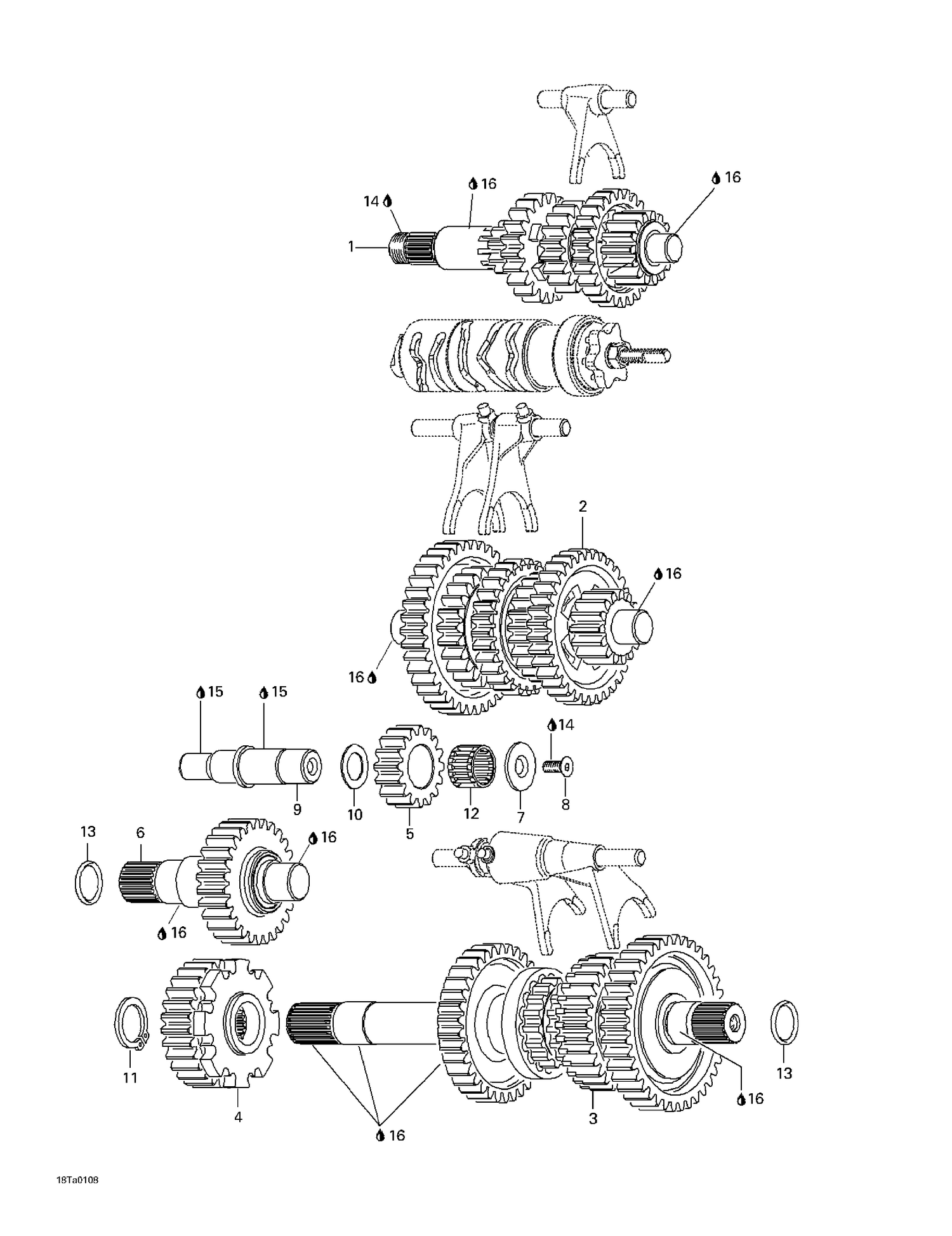

| Ref | Part Number | Description |
|---|
| 1 |
711220487 |
Countershaft |
| 2 |
711220509 |
Main Shaft Ass'y |
| 3 |
711220497 |
Rear Output Shaft |
| 4 |
711634925 |
Output Gear (28 Teeth) |
| 5 |
711634890 |
Sliding Gear |
| 6 |
711220522 |
Front Output Shaft |
| 7 |
711244270 |
Stop Washer |
| 8 |
420941436 |
Screw M6 X 20 This part replaces 711941430. |
| 9 |
Not |
Available As Spare Part - Intermediate Gear Shaft |
| 10 |
420227440 |
THRUST WASHER - Call your local BRP dealership This part replaces 711227440. |
| 11 |
420945870 |
CIRCLIP - Call your local BRP dealership This part replaces 711945870. |
| 12 |
711632230 |
Needle Cage |
| 13 |
420430373 |
O-Ring This part replaces 420430370. |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
420297433 |
Molykote G-N, 50 g This part replaces 711297433. |
