Home / BRP / EVINRUDE / 1999 / 225 / E225FPZEEO 1999 / 02- Fuel System

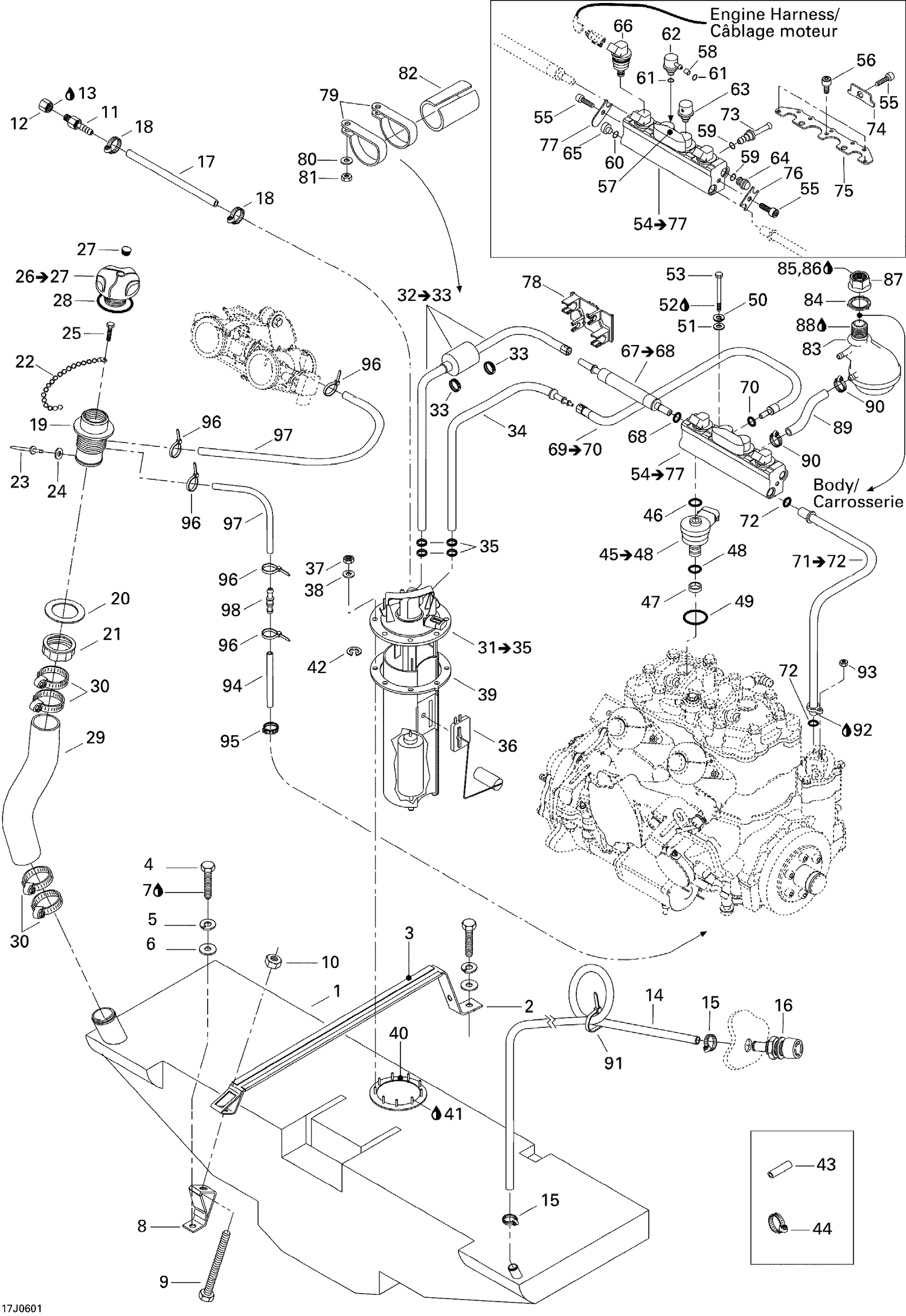

02- Fuel System

02- Fuel System

Parts (88)

RefPart NumberDescription
1 204560326 FUEL TANK ASS'Y - Call your local BRP dealership
2 204560181 FUEL TANK STRAP - Call your local BRP dealership
3 204560185 PROTECTOR PAD - Call your local BRP dealership
4 207183060 Hex. Screw M8 X 30
5 234181601 Lock Washer 8 mm, Stainless
6 234082600 Flat Washer 8 mm, Stainless
7 293800005 Loctite 271, 10 ml
8 275500252 TANK BRACKET - Call your local BRP dealership
9 207183560 HEX. SCREW M8 X 35 - Call your local BRP dealership
10 232581600 Hex. Elastic Nut M8
11 204560265 COUPLER - Call your local BRP dealership
12 204560263 Pipe Cap
13 219704454 Was 293800013 Loctite 56765
14 204560358 HOSE 16 MM - Call your local BRP dealership This part replaces 275500205.
15 293650069 NORMA CLAMP - Call your local BRP dealership
16 275500206 VENT BOAT - Call your local BRP dealership
17 219704357 Was 275500549 Hose 1/4"
18 293650121 NORMA CLAMP - Call your local BRP dealership
19 275500247 Filler Neck
20 293250029 Gasket
21 211100012 Filler Neck Nut, Fuel
22 275500015 Oil Cap Chain
23 293150057 Rivet 1/8”
24 234032600 Flat Washer M3, Stainless
25 241140060 Screw K40 X 10
27 293000034 Black, Snap Cap
28 293250017 Gasket
29 219700374 NECK FILLER HOSE - Call your local BRP dealership
30 293650081 Norma Clamp
33 293650030 Oetiker Clamp
34 204560291 Return Hose Ass'y
35 293650030 Oetiker Clamp
36 204560266 Sensor Lever
37 232551200 Elastic Stop Nut 5 mm
38 234052400 Flat Washer 5 mm, Stainless
39 293250088 Gasket
40 275500679 C-Ring, 9 Studs This part replaces 275500616.
42 293370002 Circlip 5 mm
43 204560177 Hose 5/16”, Meter
44 293650070 NORMA CLAMP - Call your local BRP dealership
46 293300084 O-Ring
47 270600030 INJECTOR RING - Call your local BRP dealership
48 293300076 O-Ring
49 293300083 O-Ring
50 234181601 Lock Washer 8 mm, Stainless
51 234081600 Stainless, Flat Washer 8 mm
52 293800060 Loctite 243, 10 ml
53 207087060 HEX. SCREW M8 X 70 - Call your local BRP dealership
55 205061260 Socket Head Screw M6 X 12
56 205051260 SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership
57 Not Available As Spare Part - Cover
58 Not Available As Spare Part - Spacer
59 293300069 O-RING - Call your local BRP dealership
60 275500598 O-Ring
61 Not Available As Spare Part - O-Ring
62 275500464 FUEL REGULATOR - Call your local BRP dealership
63 275500463 Air Regulator
64 204560304 Fuel Plug
65 Not Available As Spare Part - Air Passage Plug
66 275500460 Fuel Injector
68 293300069 O-RING - Call your local BRP dealership
70 Not Available As Spare Part - O-Ring
72 Not Available As Spare Part - O-Ring
73 Not Available As Spare Part - Air Return Adaptor
74 Not Available As Spare Part - Retainer Plate
75 Not Available As Spare Part - Retainer Plate
76 Not Available As Spare Part - Retainer Plate
77 Not Available As Spare Part - Retainer Plate
78 291001399 Clamp Tie
79 293650139 CLAMP - Call your local BRP dealership
80 234051500 Flat Washer 5 mm
81 232551600 Hex. Elastic Nut M5
82 204560191 NEOPRENE PAD - Call your local BRP dealership
83 270000569 Noise Reducer
84 293830027 SEAL WASHER - Call your local BRP dealership
85 219704458 Was 293800041 Loctite Primer 7649
86 293800060 Loctite 243, 10 ml
87 211100020 SPECIAL NUT M27 - Call your local BRP dealership
88 296000309 Silicone Sealant 51388, 300 ml
89 276000084 HOSE-8MM. - Call your local BRP dealership
90 293650170 Tridon Gear Clamp
91 414115200 Tie-Rap 180 mm
92 219704461 LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
93 232561600 Hex. Elastic Stop Nut M6
94 270000469 HOSE 3 MM - Call your local BRP dealership
95 293650105 Clamp
96 293750001 Tie Wrap 94 mm
97 219704352 Was 420660574 Pressure Hose 280 mm
