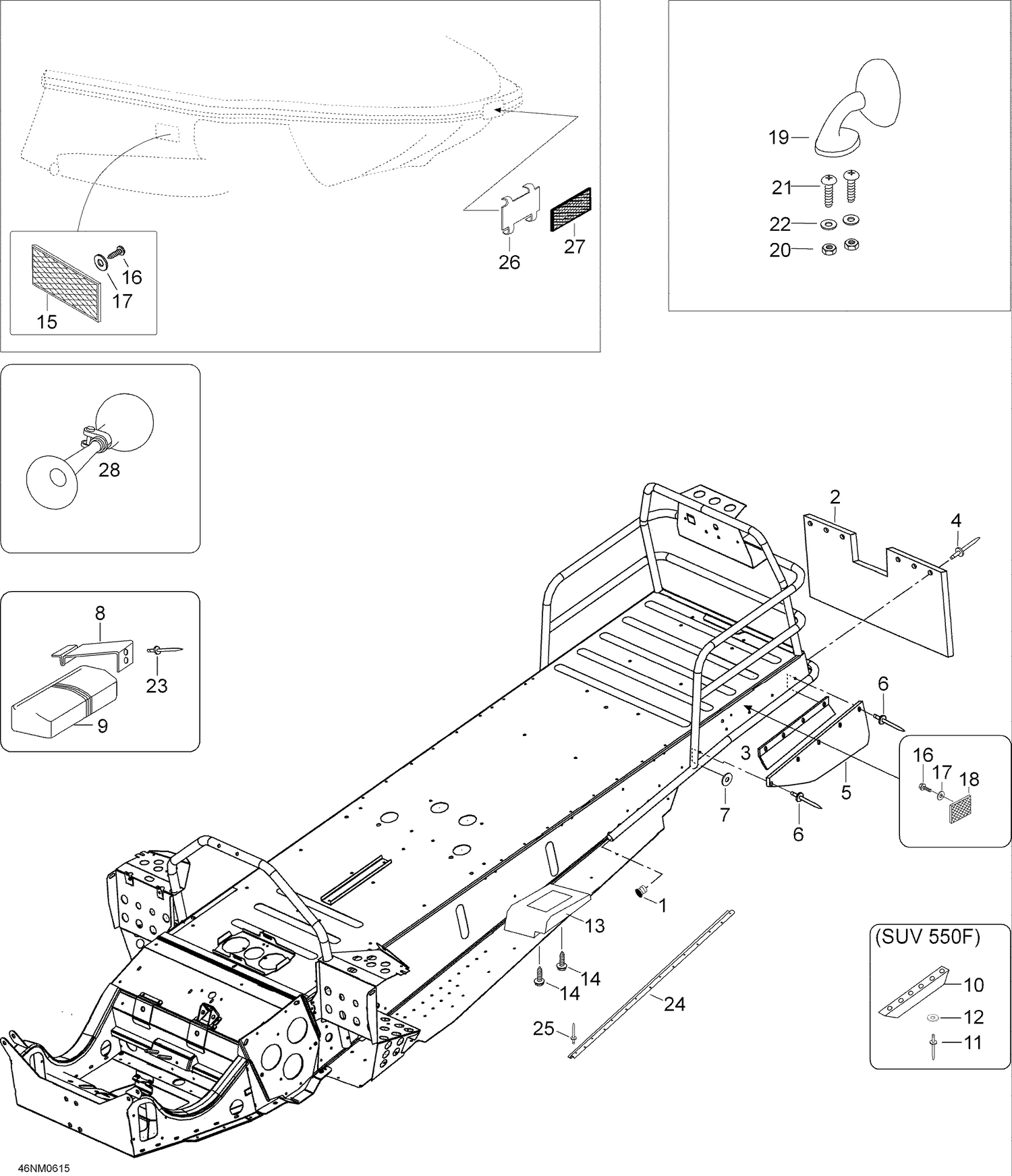

| Ref | Part Number | Description |
|---|
| 1 |
M28136 |
PLUG - Call your local BRP dealership |
| 2 |
538629 |
Snow guard This part replaces M538629. |
| 3 |
M5340532 |
Support |
| 4 |
M36036 |
Black, Rivet |
| 5 |
5142828 |
Side Snowguard This part replaces M5142828. |
| 6 |
M36097 |
RIVET - Call your local BRP dealership |
| 7 |
20037 |
Washer This part replaces M20037. |
| 8 |
M5344443 |
SPRING-HOLDER - Call your local BRP dealership |
| 9 |
605350525 |
TOOL KIT - Call your local BRP dealership This part replaces 605350523. |
| 10 |
605349264 |
PROTECTOR - Call your local BRP dealership |
| 11 |
36005 |
Rivet This part replaces M36005. |
| 12 |
234051410 |
Flat Washer M5 |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 16 |
M40070 |
Screw |
| 17 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 18 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 19 |
414971910 |
RH MIRROR - Call your local BRP dealership |
| 19 |
414972010 |
LH MIRROR - Call your local BRP dealership |
| 20 |
232541414 |
Elastic Stop Nut M4 |
| 21 |
M40167 |
Screw |
| 22 |
M20001 |
Washer |
| 23 |
36108 |
Rivet This part replaces M36083. |
| 24 |
605348881 |
ANTISLIPERRY RUNNING BAND - Call your local BRP dealership |
| 25 |
M36010 |
Rivet |
