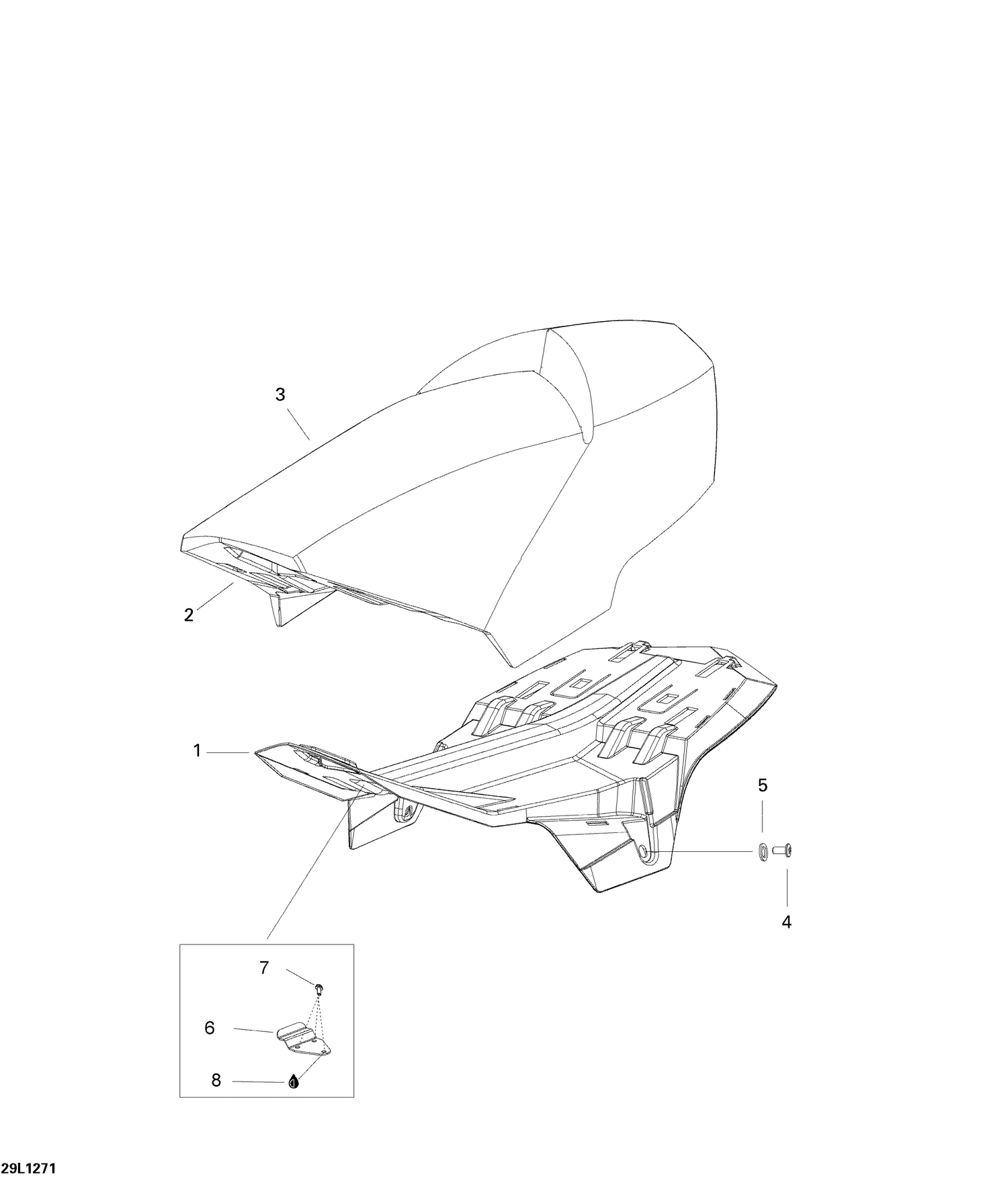

09- Seat
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510004899 | BASE-SEAT - Call your local BRP dealership |
| 2 | 510005097 | Foam |
| 3 | 510005530 | COVER, SEAT RAVE RE 2012 WHITE SEAM - Call your local BRP dealership |
| 4 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 5 | 510005346 | Washer |
| 6 | 510005129 | Seat front fastening plate |
| 7 | 205461046 | Screw socket |
