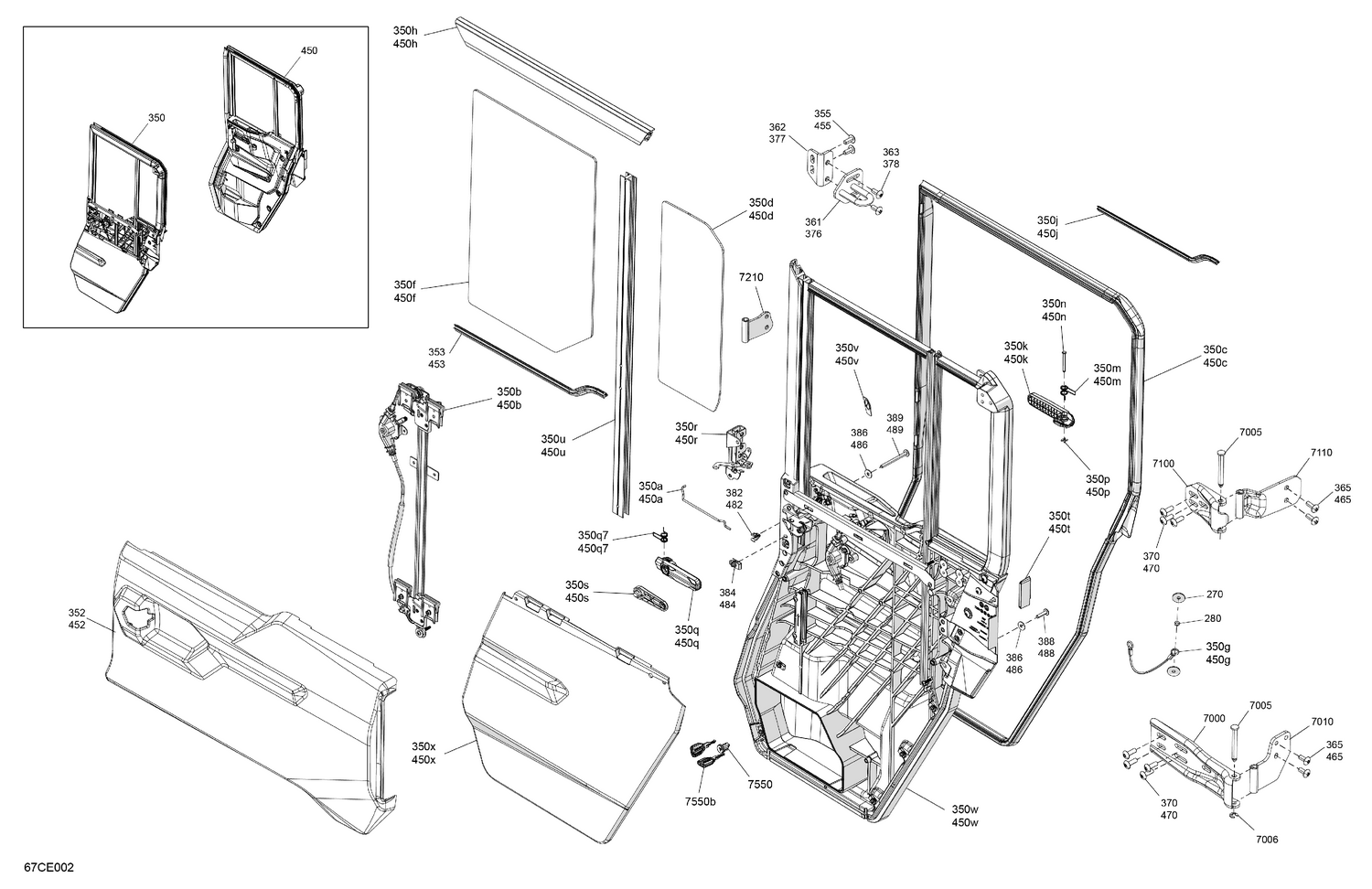

07- Enclosure Cab - Rear Doors
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 270 | 250200029 | Washer M6 |
| 280 | 708300737 | Bushing |
| 350a | 705801454 | Guide Pin |
| 350b | 715900996 | LH Rear Window Regulator |
| 350c | 705801314 | Gasket |
| 350d | 705801320 | Tinted, LH Rear Door Window |
| 350f | 705801319 | Tinted, LH Rear Sliding Cab Window |
| 350g | 705800903 | Retaining Cable |
| 350h | 705801315 | Gasket |
| 350j | 705800964 | Gasket |
| 350k | 705017152 | Door Handle |
| 350m | 705013062 | Handle Spring |
| 350n | 705207440 | Handle Axle |
| 350p | 705601875 | External Retaining Ring |
| 350q7 | 705013062 | Handle Spring |
| 350r | 705801466 | LH Rear Door Latch |
| 350s | 705800871 | Window Crank |
| 350t | 705800992 | Trim |
| 350u | 705800723 | Rear Window Guide Extrusion |
| 350v | 704909996 | LH Door Pictogram Label |
| 350w | XXX | Not Available As Spare Parts |
| 350x | 705800718 | LH Lower Door Panel |
| 352 | 705801307 | Stealth Black, LH Rear Door Panel |
| 353 | 705800964 | Gasket |
| 355 | 250000953 | Torx Truss M/S M8 X 20 |
| 361 | 705801024 | Rear Door Stricker |
| 362 | 705800851 | LH Striker Support |
| 363 | 250000953 | Torx Truss M/S M8 X 20 |
| 365 | 250000953 | Torx Truss M/S M8 X 20 |
| 370 | 250000874 | Torx Truss M8 X 25 |
| 376 | 705801024 | Rear Door Stricker |
| 377 | 705800852 | RH Support Striker |
| 378 | 250000953 | Torx Truss M/S M8 X 20 |
| 382 | 517306478 | Clip |
| 384 | 250100198 | Panel Nut M6 X 1.0 |
| 386 | 234062670 | Stainless Steel Flat Washer |
| 388 | 250000807 | Torx Truss Screw M6 X 25 |
| 389 | 250000954 | Torx Screw M6 X 70 |
| 450a | 705801455 | Guide Pin |
| 450b | 715900997 | RH Rear Window Regulator |
| 450c | 705801316 | Gasket |
| 450d | 705801321 | Tinted, RH Rear Door Window |
| 450f | 705801322 | Tinted, RH Rear Sliding Cab Window |
| 450g | 705800903 | Retaining Cable |
| 450h | 705801315 | Gasket |
| 450j | 705800964 | Gasket |
| 450k | 705017152 | Door Handle |
| 450m | 705013062 | Handle Spring |
| 450n | 705207440 | Handle Axle |
| 450p | 705601875 | External Retaining Ring |
| 450q7 | 705013062 | Handle Spring |
| 450r | 705801467 | RH Rear Door Latch |
| 450s | 705800871 | Window Crank |
| 450t | 705800993 | Trim |
| 450u | 705800723 | Rear Window Guide Extrusion |
| 450v | 704909998 | RH Door Pictogram Label |
| 450w | XXX | Not Available As Spare Parts |
| 450x | 705800719 | RH Lower Door Panel |
| 452 | 705801309 | Stealth Black, RH Rear Door Panel |
| 453 | 705800964 | Gasket |
| 455 | 250000953 | Torx Truss M/S M8 X 20 |
| 465 | 250000953 | Torx Truss M/S M8 X 20 |
| 470 | 250000874 | Torx Truss M8 X 25 |
| 482 | 517306478 | Clip |
| 484 | 250100198 | Panel Nut M6 X 1.0 |
| 486 | 234062670 | Stainless Steel Flat Washer |
| 488 | 250000807 | Torx Truss Screw M6 X 25 |
| 489 | 250000954 | Torx Screw M6 X 70 |
| 7000 | 705800751 | Door Hinge |
| 7005 | 705800781 | Hinge Pin |
| 7006 | 293370125 | Retaining Ring |
| 7010 | 705801025 | Lower Hinge |
| 7100 | 705800752 | Upper Door Hinge |
| 7110 | 705800755 | Upper Door Hinge |
| 7210 | 705800756 | Upper Door Hinge |
