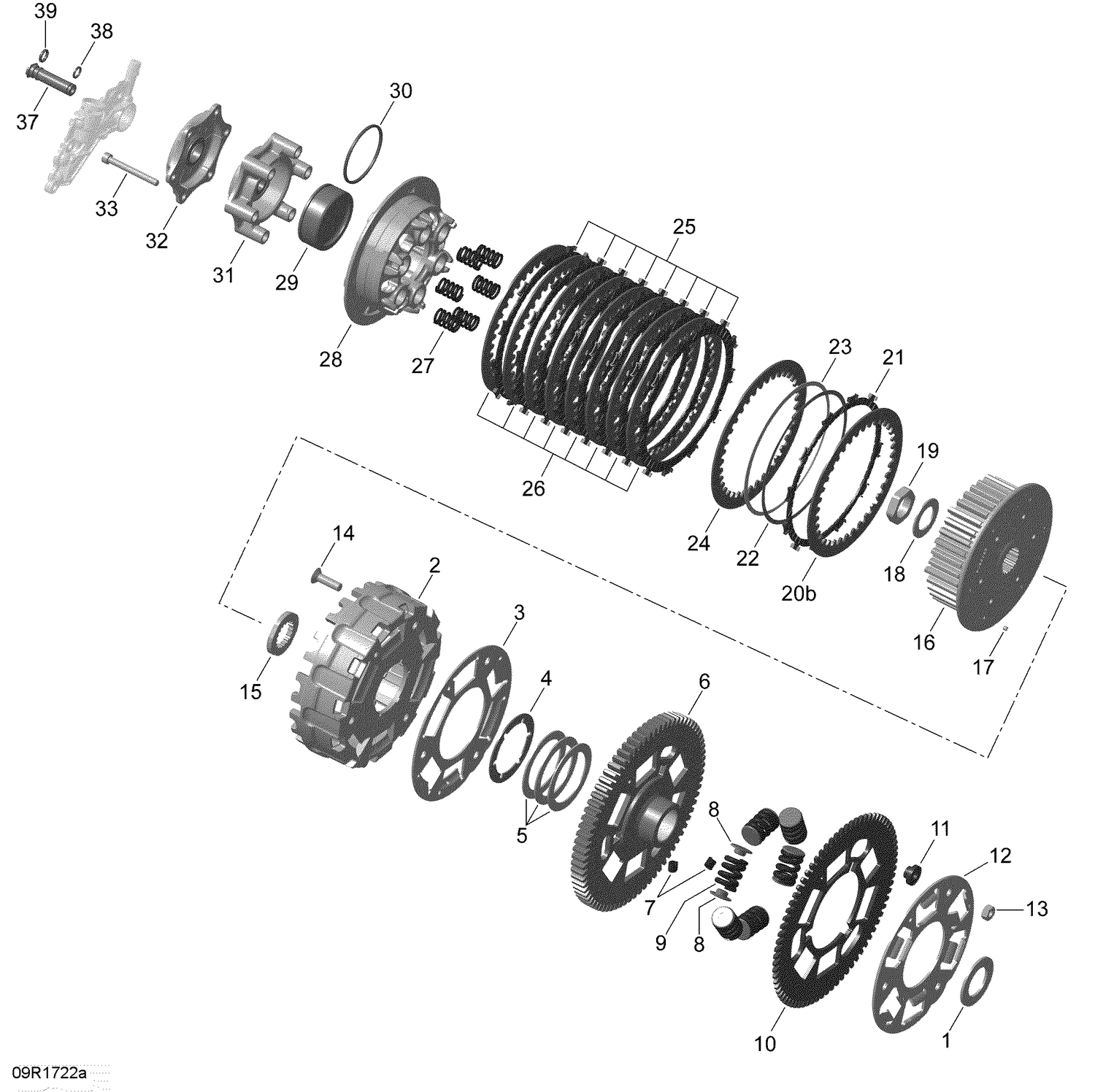

| Ref | Part Number | Description |
|---|
| 1 |
420627260 |
Thrust Washer |
| 3 |
420459105 |
Support Plate |
| 4 |
420626870 |
Thrust Washer |
| 5 |
420239397 |
Disc Spring |
| 6 |
420435408 |
Clutch Gear This part replaces 420435406. |
| 7 |
420638030 |
Compression Spring |
| 8 |
420247017 |
Spring Retainer This part replaces 420247976. |
| 9 |
420238132 |
Compression Spring |
| 10 |
420435411 |
Anti-Backlash Gear 75 Teeth |
| 11 |
420647200 |
Distance Sleeve |
| 12 |
420459100 |
Support Plate |
| 13 |
232081414 |
Hex. Nut M8 |
| 14 |
420440795 |
Screw M8 X 28 |
| 15 |
420627225 |
Thrust Washer |
| 17 |
420640805 |
Adjustment Screw M4 X 4 This part replaces 420640800. |
| 18 |
420245830 |
Spring Washer |
| 19 |
219800531 |
Hex Nut And Tab Washer Kit This part replaces 420242014. |
| 20b |
Not |
Available As Spare Part - Clutch Plate 1.9 mm |
| 21 |
Not |
Available As Spare Part - Friction Plate 2.4 mm |
| 22 |
420626970 |
Thrust Washer |
| 23 |
420238980 |
Disc Spring |
| 24 |
Not |
Available As Spare Part - Clutch Plate 2.1 mm |
| 25 |
Not |
Available As Spare Part - Friction Plate 2.4 mm |
| 26 |
Not |
Available As Spare Part - Clutch Plate 1.9-2.1 mm |
| 27 |
420238890 |
Clutch Spring |
| 28 |
420459095 |
Pressure Plate |
| 29 |
420456082 |
Clutch Piston This part replaces 420456080. |
| 30 |
420201140 |
Sealing Ring |
| 31 |
420456076 |
CLUTCH CYLINDER - Call your local BRP dealership |
| 32 |
420212081 |
Oil Duct Cover |
| 33 |
420240332 |
Allen Screw M6 X 55 This part replaces 420240331. |
| 37 |
420456171 |
Piston Oil Supply This part replaces 420456170. |
| 38 |
420201150 |
Sealing Ring |
