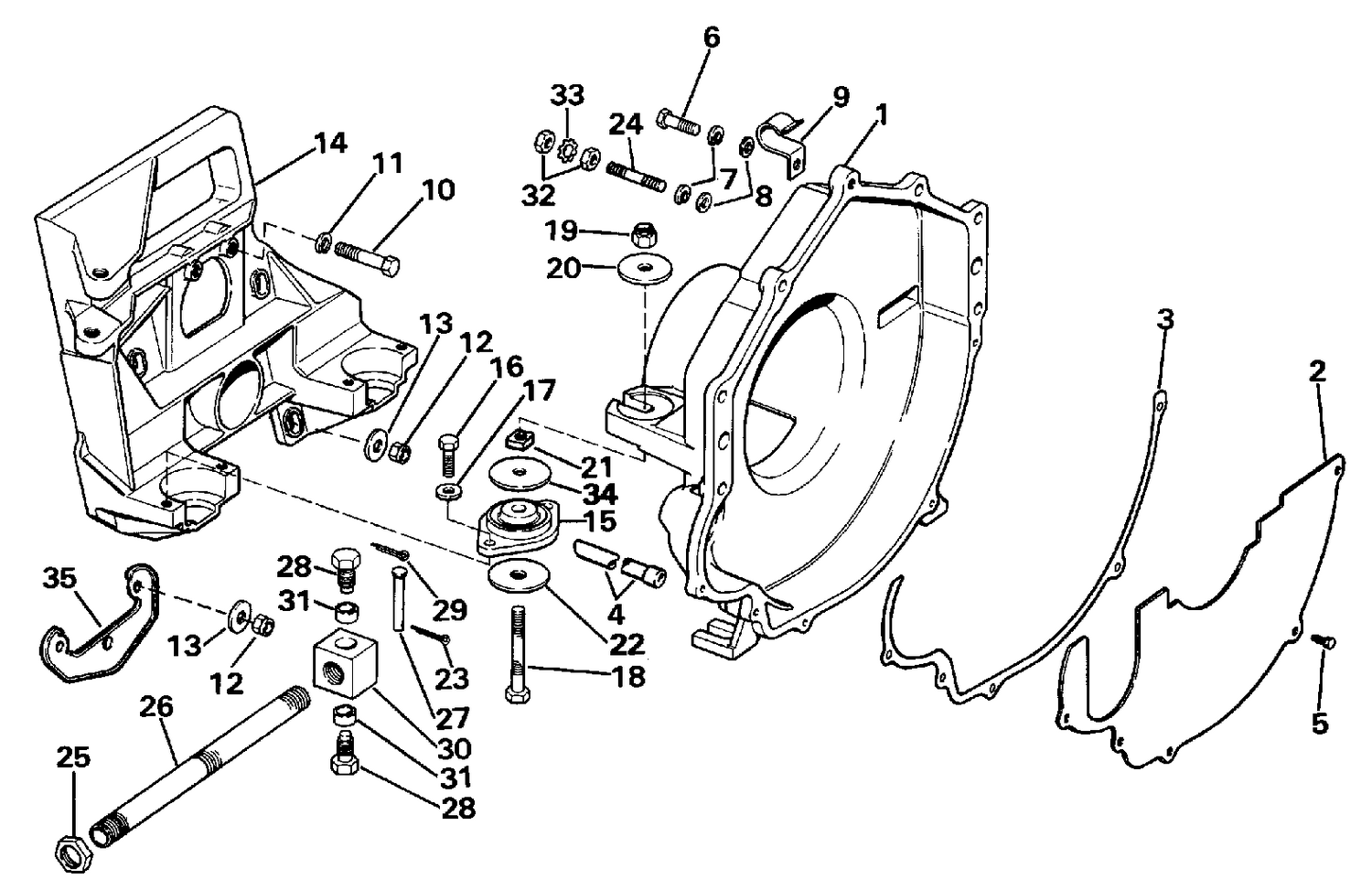

| Ref | Part Number | Description |
|---|
| 1 |
3857846 |
Housing This part replaces 0913283. |
| 2 |
3853001 |
COVER, Flywheel This part replaces 0911736. |
| 3 |
3853002 |
GASKET, Flywheel housing This part replaces 0911737. |
| 4 |
3852832 |
HOSE, Flywheel housing This part replaces 0911738. |
| 5 |
3852421 |
SCREW, Baffle This part replaces 0907768. |
| 6 |
0909571 |
SCREW |
| 7 |
0120177 |
L'WASHER, Alternator to brkt |
| 9 |
3852434 |
CLAMP, Engine cable This part replaces 0908191. |
| 10 |
0912457 |
SCREW, Transom plate |
| 11 |
0307708 |
RONDELLE GROWER |
| 12 |
3853329 |
LOCKNUT, Transom plate This part replaces 0912920. |
| 13 |
3852573 |
WASHER, Pivot pin This part replaces 0911915. |
| 14 |
3854605 |
TRANSOM PLATE This part replaces 0912537. |
| 15 |
3853806 |
REAR MOUNT This part replaces 0983932. |
| 16 |
0309484 |
SCREW |
| 18 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 19 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 20 |
3852540 |
WASHER This part replaces 0911778. |
| 21 |
3852539 |
NUT This part replaces 0911776. |
| 22 |
3852542 |
WASHER This part replaces 0911780. |
| 24 |
3852483 |
STUD, Ground This part replaces 0910022. |
| 25 |
0910027 |
NUT, Steering tube |
| 26 |
0911175 |
TUBE, Steering |
| 27 |
3853258 |
PIN, Cable to clevis This part replaces 0911763. |
| 28 |
3850931 |
BOLT, Steering anchor This part replaces 0911879. |
| 29 |
0912239 |
COTTER PIN, Steering anchor |
| 30 |
3853808 |
ANCHOR & BUSHING This part replaces 0984010. |
| 31 |
3852582 |
BUSHING This part replaces 0912013. |
| 33 |
0306993 |
L'WASHER,Potentiometer,12 V |
| 34 |
3852622 |
WASHER, Lower This part replaces 0912889. |
