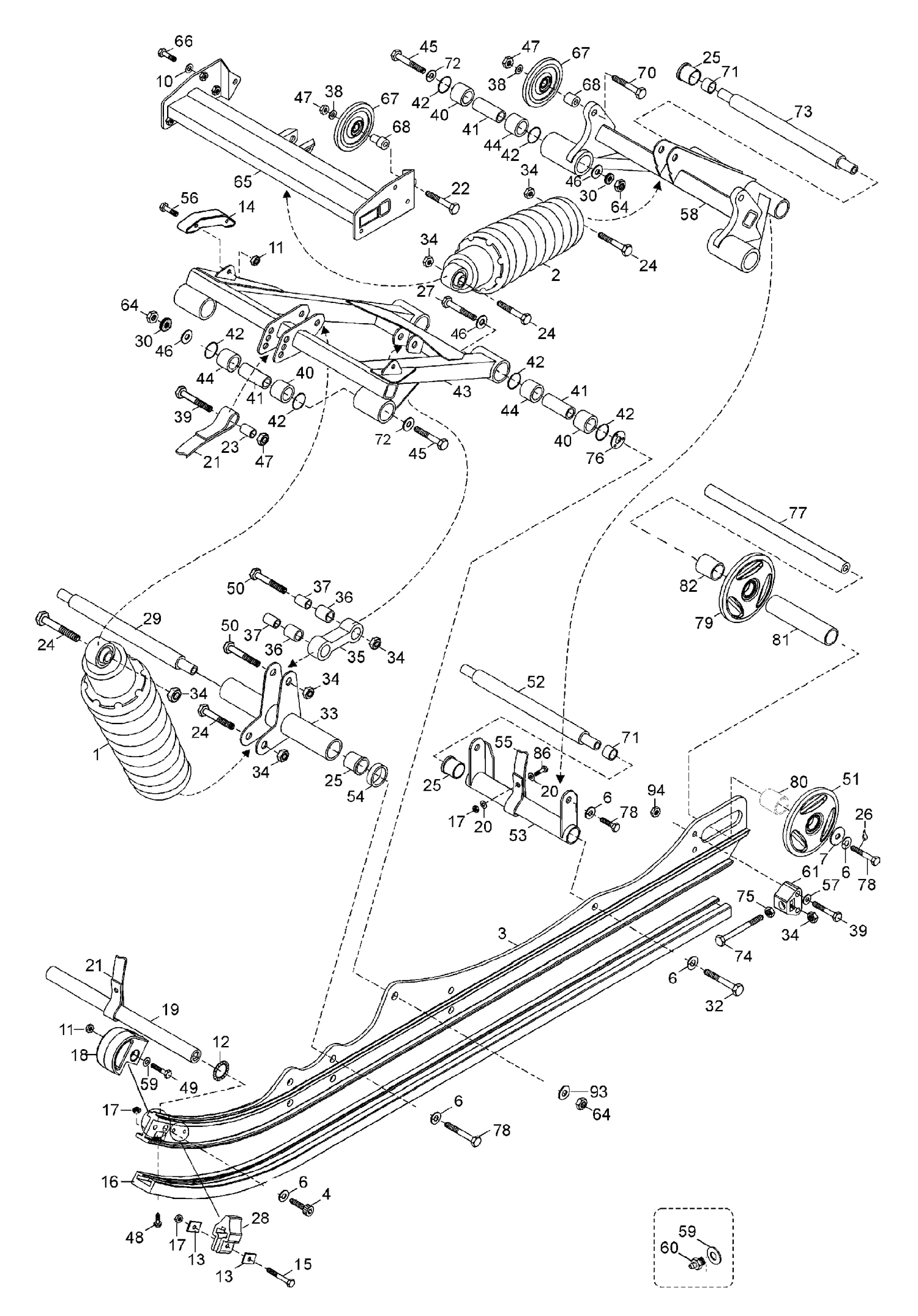

| Ref | Part Number | Description |
|---|
| 1 |
23087 |
Shock LYNX |
| 2 |
23086 |
Shock LYNX |
| 3 |
5143212 |
Runner |
| 4 |
40134 |
Screw Socket HD.DIN 912 |
| 6 |
20068 |
Lock washer |
| 7 |
20023 |
Washer |
| 10 |
20072 |
Lock washer |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 |
4181158 |
Fixing Washer |
| 13 |
548470 |
Washer |
| 14 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces 5343191. |
| 15 |
40032 |
Screw M6x30 |
| 16 |
5343350 |
Runner shoe |
| 17 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 18 |
534578 |
Runner protector |
| 19 |
5343471 |
Shaft |
| 20 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 21 |
5443721 |
Belt, front |
| 22 |
40007 |
Screw M8x40 |
| 23 |
5443476 |
Spacer |
| 24 |
40265 |
Screw M10x45 |
| 25 |
31083 |
Bearing |
| 26 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 27 |
5444366 |
Screw M12x80 |
| 28 |
5442328 |
STOPPER-RUBBER - Call your local BRP dealership |
| 29 |
5443832 |
Support axle |
| 30 |
20074 |
Lock washer |
| 32 |
40014 |
Screw M10x40 |
| 33 |
5345746 |
Arm |
| 34 |
33012 |
Nut elastic M10 |
| 35 |
5443376 |
Draw Beam |
| 36 |
31047 |
Bushing |
| 37 |
546449 |
Sleeve |
| 38 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 39 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 40 |
31065 |
Bushing |
| 41 |
5440580 |
Shaft |
| 42 |
28312 |
O-ring |
| 43 |
5144387 |
Welded front arm |
| 44 |
31048 |
Bushing |
| 45 |
40346 |
Screw M12x80 |
| 46 |
549359 |
Washer |
| 47 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 48 |
40845 |
Allen screw M6x25 |
| 49 |
40031 |
Screw M6x25 |
| 50 |
40016 |
Screw M10x45 |
| 51 |
5345763 |
Idler Wheel yellow/165 |
| 52 |
5443832 |
Shaft |
| 53 |
5343462 |
Rear arm |
| 54 |
5443671 |
Spacer |
| 55 |
5343473 |
Stopper strap |
| 56 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064. |
| 57 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 58 |
5143459 |
Rear Arm Weld |
| 59 |
20003 |
Washer |
| 60 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 61 |
5341633 |
Tensioner |
| 64 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 65 |
5344743 |
Shock support |
| 66 |
40810 |
Allenscrew M8x20 |
| 67 |
46027 |
Idler Wheel - Call your local BRP dealership |
| 68 |
548765 |
Spacer |
| 70 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 71 |
31087 |
Sleeve |
| 72 |
Not |
Available As Spare Part - Al-tape - DOES NOT APPLY TO THIS MODEL |
| 73 |
5443833 |
Shaft |
| 74 |
40239 |
Screw M10x100 |
| 75 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 76 |
5442005 |
Locking washer |
| 77 |
5341511 |
Rear shaft l=341 |
| 78 |
40041 |
Screw M10x30 |
| 79 |
503194127 |
Wheel 165mm This part replaces 503189476. |
| 80 |
5441512 |
Spacer |
| 81 |
5441513 |
Sleeve l=160.5 |
| 82 |
5444099 |
Spacer l=38.5 |
| 83 |
31080 |
Shim |
| 86 |
40031 |
Screw M6x25 |
| 93 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
