| Ref | Part Number | Description |
|---|
| 1 |
0438555 |

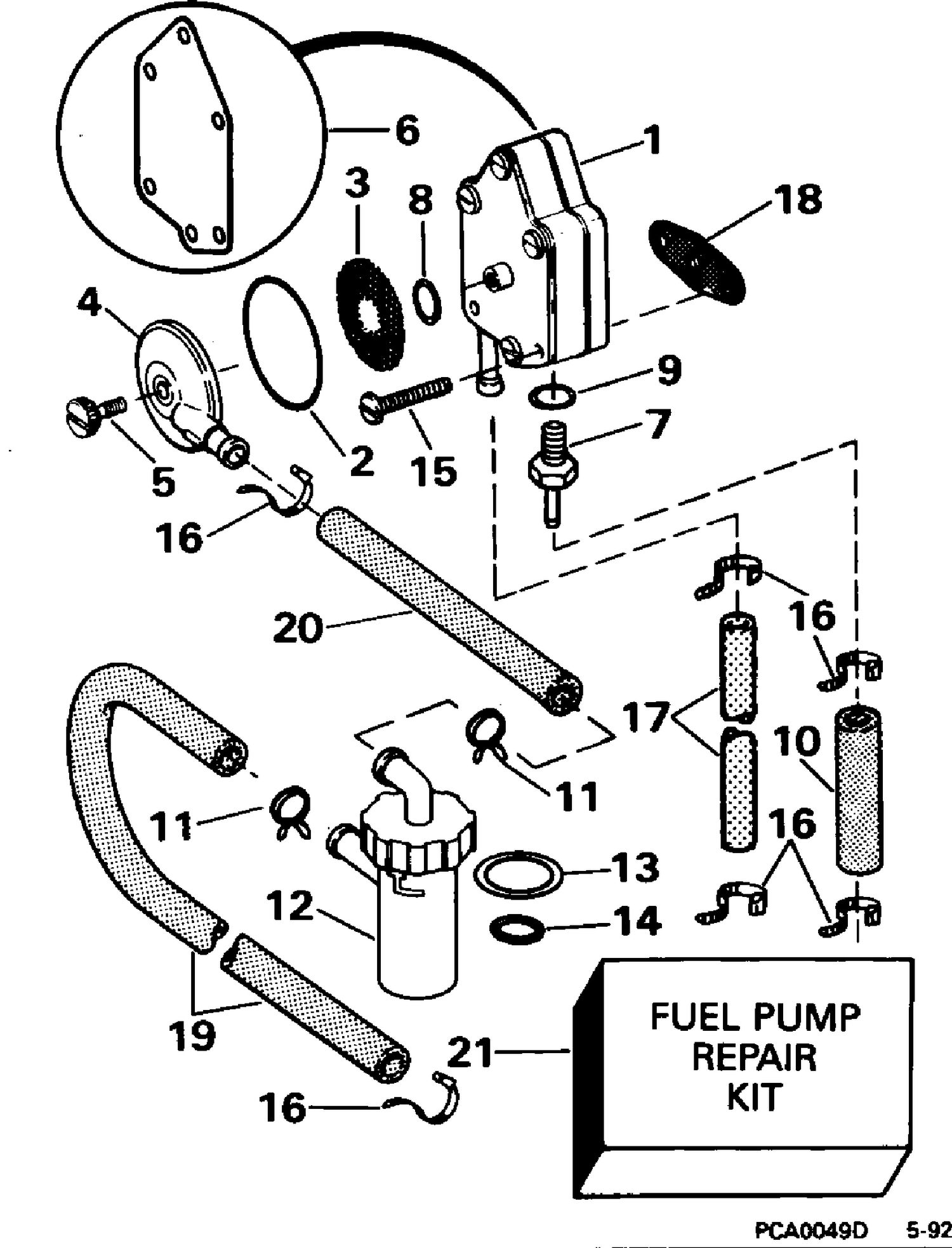

FUEL PUMP ASSEMBLY This part replaces 0433386. |
| 10 |
HOSE, |
Pump to carb., 18 in. (457mm) |
| 10a |
505074837 |
Ski Blade |
| 10b |
505071812 |
Retainer 17mm long |
| 10c |
505072976 |
Black, Handle |
| 10d |
505072133 |
Retainer 23mm Long |
| 10f |
860203079 |
Carbide Runner Square Kit This part replaces 860202518. |
| 10g |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
0339278 |
COLLIER DE SERRAGE |
| 12 |
0398541 |
CARBURETOR REPAIR KIT |
| 15 |
0328717 |
NUT, Ground lead |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0335502 |
HOSE, Pulse |
| 18 |
0303615 |
GASKET |
| 19 |
HOSE, |
Conn. to fuel filter, 10 3/4 in. (273m m) |
| 20 |
HOSE, |
Filter to fuel pump, 5 1/2 in. (140mm) |
| 200 |
250000703 |
Hex. Screw M10 X 130 |
| 210 |
505073691 |
Ski Axle |
| 300 |
505075567 |
Platinum Silver, LH Ski Leg +6 |
| 310 |
505075568 |
Platinum Silver, RH Ski Leg +6 |
| 320 |
505072690 |
Leg Bushing |
| 330 |
505074949 |
Spacer |
| 400 |
505075152 |
LH Lower Arm 39 |
| 410 |
505075153 |
RH Lower Arm 39 |
| 420 |
505073330 |
Bushing |
| 430 |
505075323 |
Bushing |
| 440 |
505072634 |
Wear Plate |
| 445 |
505072448 |
O-Ring |
| 450 |
250001024 |
Screw Hex. M10 X 70 |
| 455 |
250001024 |
Screw Hex. M10 X 70 |
| 480 |
505073844 |
Plate |
| 500 |
505075103 |
LH Upper Suspension Arm 39 T |
| 510 |
505075104 |
RH Upper Suspension Arm 39 T |
| 520 |
505073329 |
Bushing |
| 530 |
505075322 |
Bushing |
| 540 |
250001023 |
Screw Hex. M10 X 60 |
| 545 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 550 |
250001023 |
Screw Hex. M10 X 60 |
| 555 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 660 |
503189564 |
Washer |
| 670 |
505072392 |
Washer |
| 680 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 685 |
250100165 |
Hex. Flanged Elastic Nut M10 |
| 690 |
505072448 |
O-Ring |
| 800 |
505075485 |
Stabilizer Bar |
| 810 |
505072786 |
Bushing |
| 830 |
505073752 |
Stabilisator Lever |
| 840 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 850 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 860 |
505073172 |
Double Ball Joint Link |
| 870 |
207663056 |
Hex Flange Screw M6 X 1.0 X 30 |
| 880 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 1200 |
505074133 |
Ball Joint |
| 1230 |
503192491 |
Washer |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 |
| 1300 |
293370070 |
Circlip |
| 1400 |
505072913 |
Upper Ball Joint |
| 1410 |
293370098 |
Snap Ring |
| 1910 |
503192496 |
Washer |
| 1920 |
233201464 |
Hex. Elast. Flanged Nut M10 x 1.5 |
