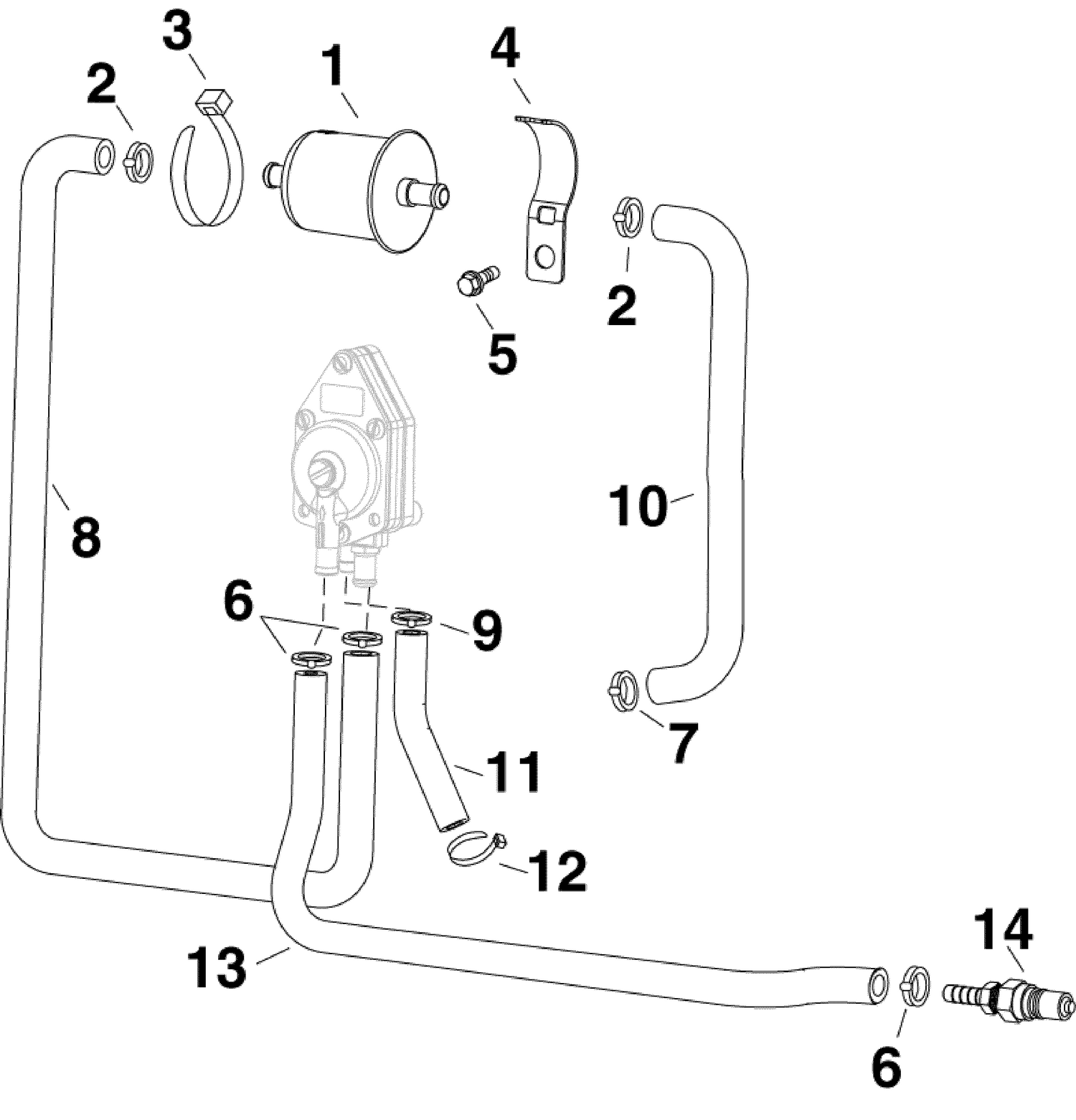

| Ref | Part Number | Description |
|---|
| 1 |
5007335 |
FILTER AY, Fuel |
| 4 |
0351009 |
CLAMP, Fuel filter to C/C |
| 5 |
0312455 |
BOLT,Throttle lever retainer |
| 8 |
0350792 |
HOSE, Fuel pump to fuel filter |
| 10 |
0355122 |
HOSE, Fuel filter to vapor separator This part replaces 0352271. |
| 10 |
517307872 |
Deep Black, Central Hood |
| 12 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 13 |
0353515 |
HOSE, Connector to fuel pump |
| 100 |
517308176 |
Deep Black, RH Rear Hood |
| 105 |
517308939 |
Acoustic Insulation |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 150 |
517308160 |
Deep Black, LH Rear Hood |
| 155 |
517308940 |
Acoustic Insulation |
| 160 |
250000725 |
Screw M4 X 16 |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 200 |
517307873 |
Deep Black, Rear Console |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 240 |
517306602 |
Console Nut |
| 250 |
706002839 |
O-Ring |
| 260 |
517309451 |
Joint This part replaces 517307197. |
| 270 |
250000587 |
Torx Screw M5 X 26 |
| 275 |
250000958 |
Panel Nut M5 X 0.8 |
| 360 |
517306808 |
Switch Hole Cap |
| 365 |
517308261 |
Cap |
| 375 |
732610072 |
Push Nut |
| 600 |
517307808 |
Gauge Support |
| 620 |
250000725 |
Screw M4 X 16 |
| 630 |
234062670 |
Flat Washer, Stainless |
| 640 |
250000767 |
Torx Truss Screw M6 X 12 |
| 700 |
517308112 |
Access Cover |
| 2400a |
517308741 |
Headlight Support |
| 2400b |
517309022 |
Washer Cal |
| 2400c |
710008089 |
Low Beam Light |
| 2400d |
517309022 |
Washer Cal |
| 2400f |
710006911 |
High Beam Light |
| 2400g |
250000759 |
Torx Truss Pt K40 X 16 |
| 2400h |
517308815 |
Boot |
| 2400j |
517308163 |
Headlight Trim |
| 2400k |
250000725 |
Screw M4 X 16 |
| 2400m |
517308229 |
Molded Housing Nut |
| 2400n |
250000732 |
Torx Screw Nylon |
| 2400p |
517308230 |
Clip |
| 3200a |
517309040 |
Box Cover |
| 3200b |
517305779 |
Latch |
| 3200c |
732610072 |
Push Nut |
| 3200d |
517308246 |
Joint Seal |
| 3220 |
517308260 |
Box Cap |
| 3410 |
250000725 |
Screw M4 X 16 |
| 3810 |
250000725 |
Screw M4 X 16 |
| 3811 |
250001131 |
Torx Truss PT K40 x 12 |
| 3812 |
250000759 |
Torx Truss Pt K40 X 16 |
