| Ref | Part Number | Description |
|---|
| 3 |
0306487 |
SCREW |
| 5 |
0553769 |
BUSHING |
| 6 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 7 |
0306487 |
SCREW |
| 8 |
0329241 |
RONDELLE |
| 9 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 10 |
0302406 |
SLEEVE |
| 11 |
0203622 |
WASHER |
| 12 |
0329240 |
SCREW This part replaces 0314451. |
| 13 |
0321318 |
HANDLE, Latch |
| 14 |
0320158 |
SEAL, Housing to cover |
| 16 |
0304019 |
CROMMET, CONTROL SHAFT |
| 17 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 18 |
0393334 |
CONNECTEUR, carburant - mâle |
| 19 |

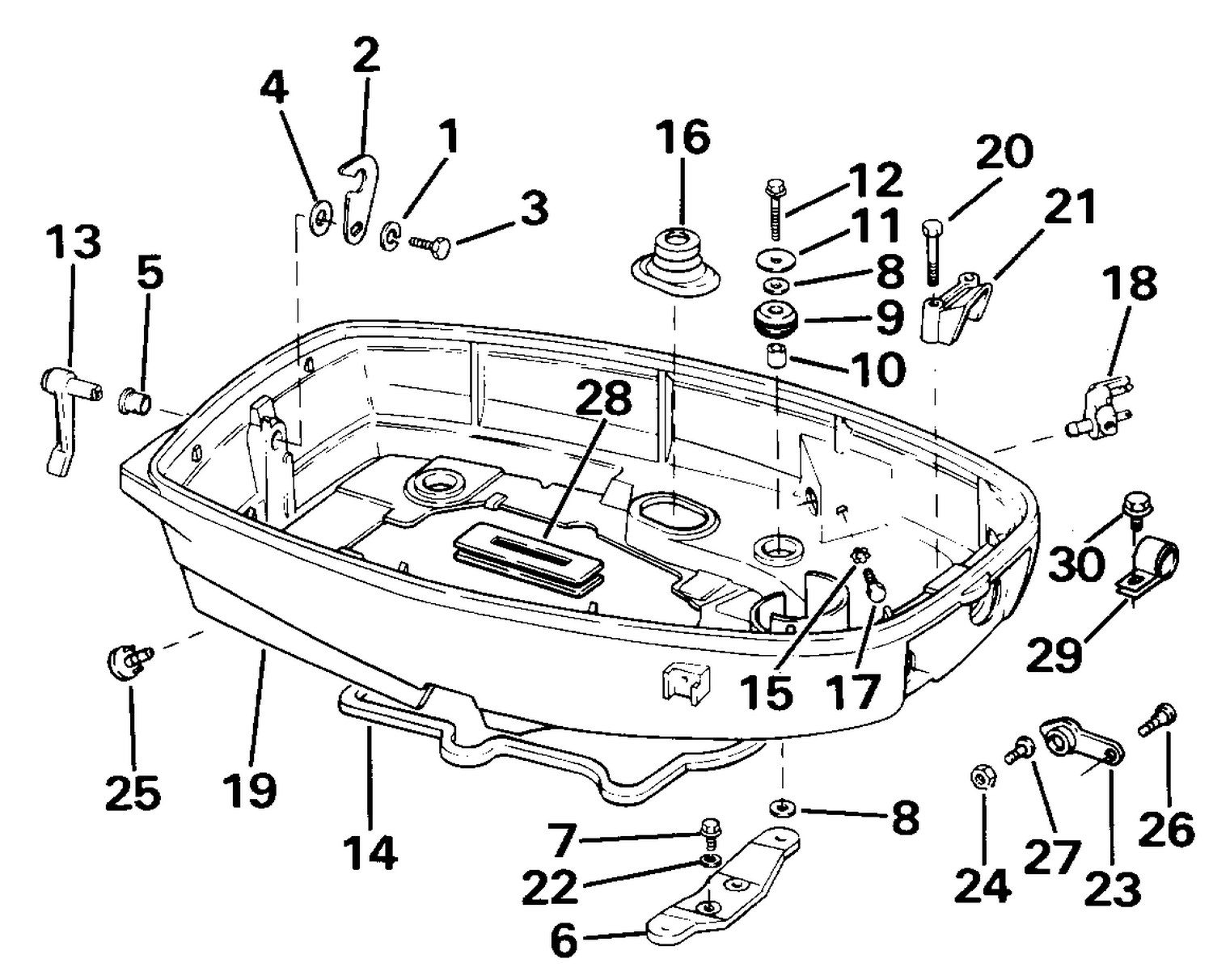

0433392 |
ENGINE COVER, Lower This part replaces 0329019. |
| 20 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 21 |
0325972 |
COLLIER, câbles électriques |
| 25 |
0321885 |
NIPPLE |
| 28 |
0325327 |
GROMMET, Actuator cam |
| 29 |
0317000 |
COLLIER, câble This part replaces 0318190. |
