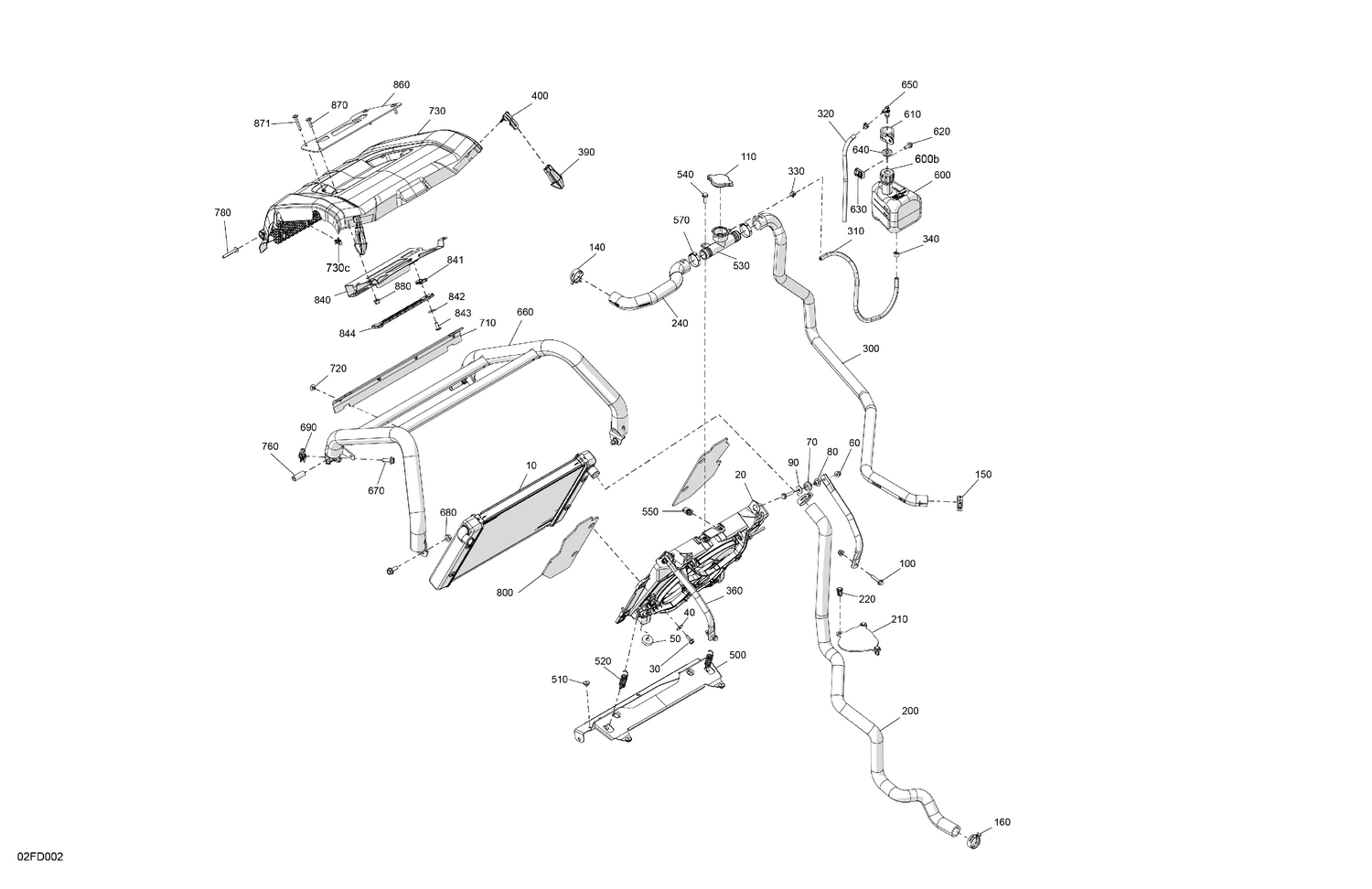

02- Engine - Cooling — Parts Catalog

Parts (53)

Ref	Part Number	Description
10	709200762	Radiator
30	250000906	Hex Flange Screw M6 X 16
40	234062410	Flat Washer 6 mm
50	709200948	Grommet
60	233261466	Hex. Flange Elastic Nut M6
70	293720130	Overmolded Grommet
80	709001288	Bushing
90	250200082	Flat Washer
100	207663046	Hex. Flange Screw M6 X 30
110	709200207	Radiator Pressure Cap
140	293650108	Norma Spring Clamp
150	293650109	Norma Spring Clamp
160	293650108	Norma Spring Clamp
200	709200947	Coolant Hose
210	709201222	Cap
220	293150230	Tuflok Plastic Rivet
240	709200939	Coolant Hose
300	709200937	Hose
330	414554800	Spring Clamp
340	414420700	Spring Clamp
360	709201205	Tube
390	517304075	End Piece Latch
400	517303981	Panel Latch
500	709201150	Support
510	390406500	Pop Rivet 3/16"
520	705600792	Brake Pedal Spring
530	709200422	Filler Neck
540	207662034	Hex. Flange Screw M6 X 20
550	250100198	Panel Nut M6 X 1.0
570	509000162	Gear Clamp
600b	709200586	Cap
610	709200036	Hose Anchor
620	207661646	Hex. Flange Screw M6 X 16
630	250100208	Panel Nut M6 X 1.0
640	705003264	Grommet
650	414580700	Male Connector
670	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
680	233181414	Hex. Flange Nut M8
690	250100236	Panel Nut M8 X 1.25
710	709201191	Gasket
720	293150103	Pop Rivet 3/16"
730c	517302785	Edge Clip
760	709201214	Spacer
780	250000748	Torx Screw M6 X 45
800	709201192	Gasket
840	709201283	Tool Kit Support
841	250100208	Panel Nut M6 X 1.0
842	234062670	Stainless Steel Flat Washer
843	250000717	Torx Head Screw M6 X 16
844	708303885	Retaining Strap
860	709201212	Hood
870	250000488	Torx Truss Screw M6 X 20
871	250000541	Torx Screw M6 X 35
