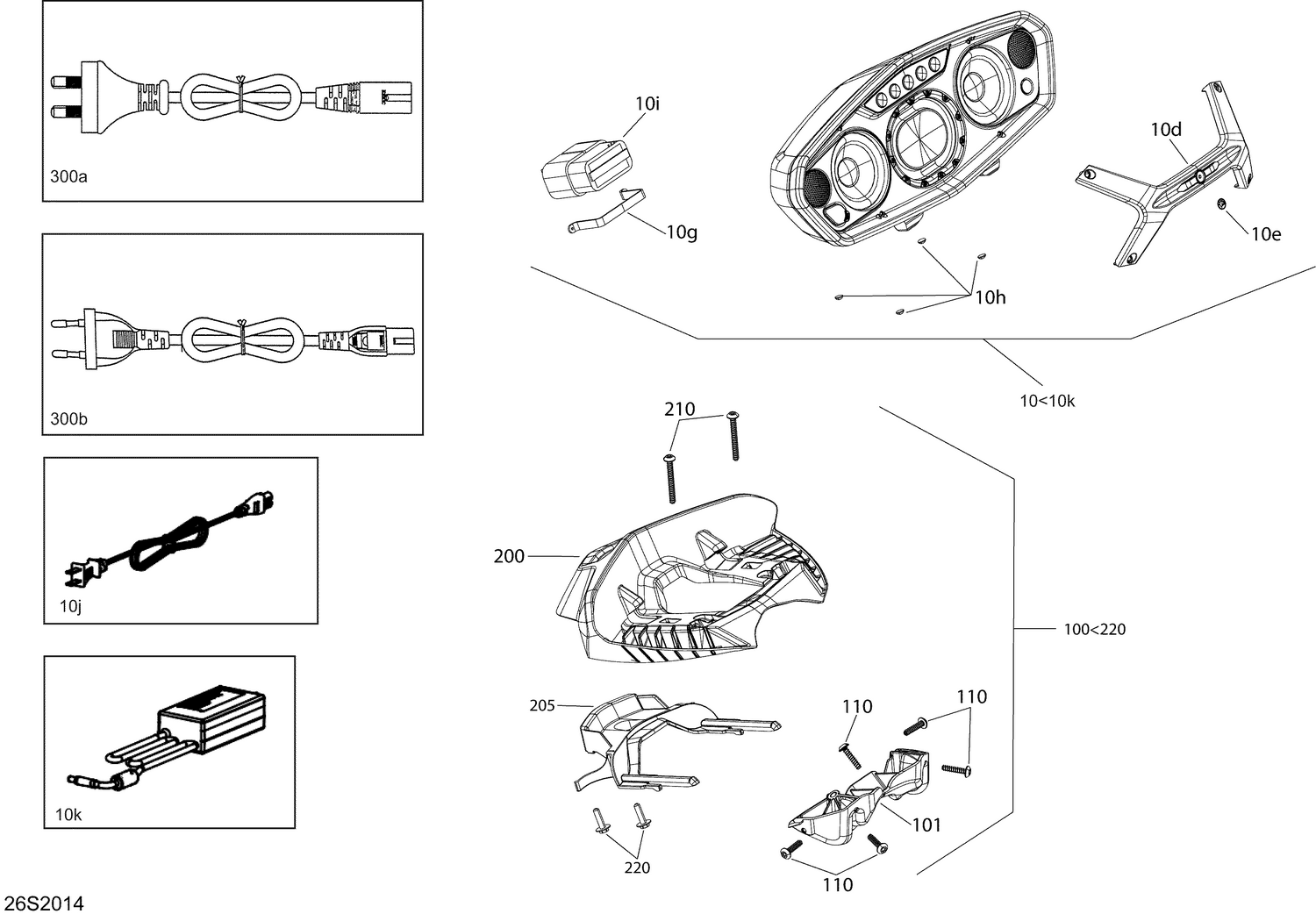

09- Audio System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 278003667 | Handle Molded |
| 10e | 704904615 | BRP Logo13 mm |
| 10g | 278003689 | Battery Support |
| 10h | 293830201 | PAD - Call your local BRP dealership |
| 10i | Not | Available As Spare Part - Battery |
| 10j | 278003824 | Cable Power |
| 10k | 278003825 | AC Power Adapter |
| 110 | 250001007 | Screw Torx M6.81 X 30 |
| 210 | 250001004 | Screw-Plastite Torx Cone Head M6.81 X 60 |
| 220 | 250000978 | Hexagonal Cap Screw M6 X 25 |
