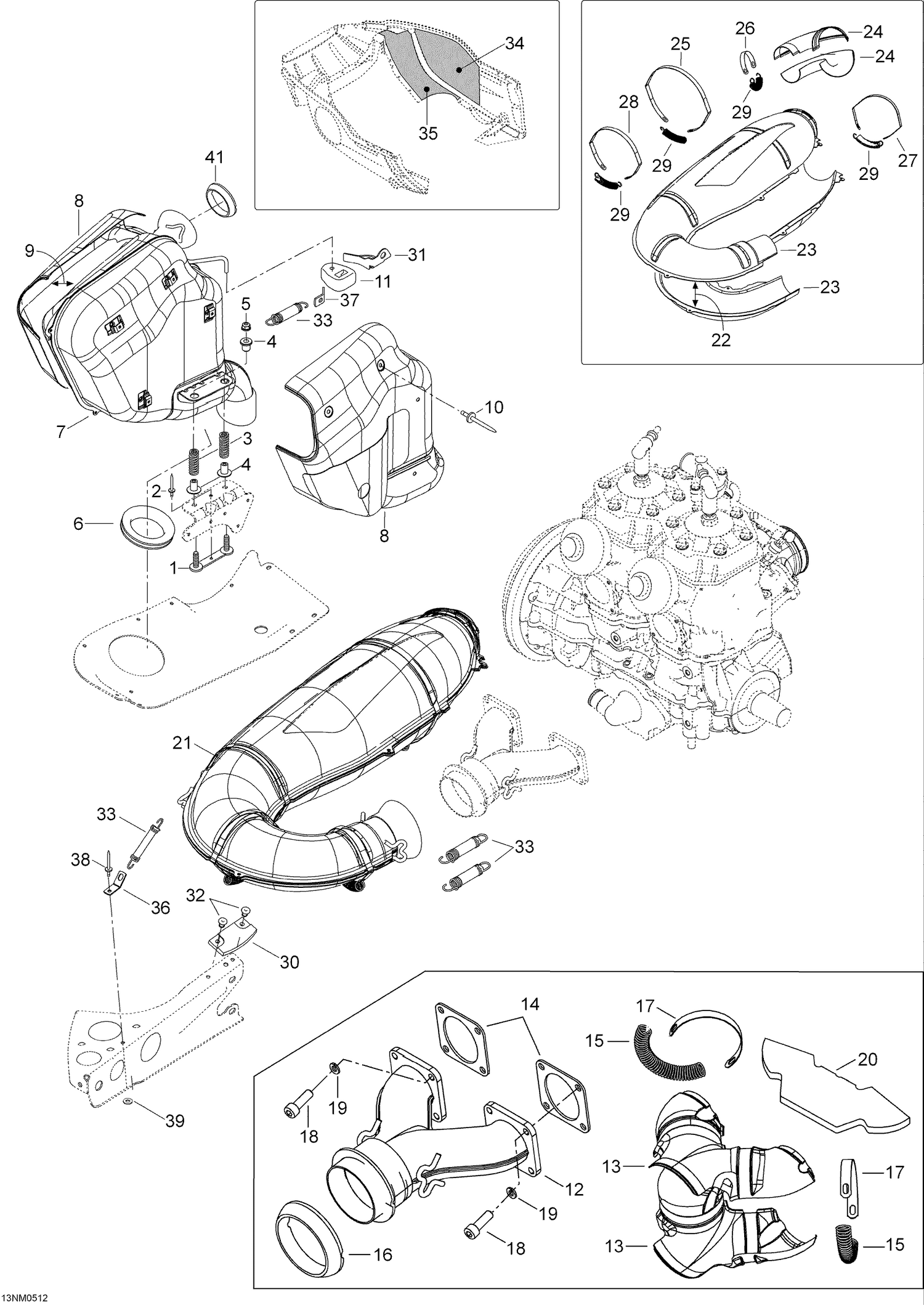

01- Exhaust System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5447628 | Bracket |
| 2 | 36083 | Rivet |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 33029 | Lock nut M8 |
| 6 | 514053064 | Exhaust grommet |
| 8 | 514053680 | L.H. Heat shield |
| 8 | 514053694 | R.H. Heat shield |
| 9 | 514053681 | R.H. insulating wool |
| 9 | 514053682 | L.H. insulating wool |
| 10 | 390910000 | Pop Rivet |
| 11 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 12 | 420973592 | Exhaust manifold |
| 13 | 514053593 | Heat protector |
| 14 | 420850552 | Gasket |
| 15 | 514053643 | Spring |
| 16 | 514053487 | Exhaust Gasket |
| 17 | 514053603 | RETAINING STRAP - Call your local BRP dealership |
| 18 | 40052 | Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 19 | 20052 | Lock washer A6 |
| 20 | 514053588 | INSULATING WOOL - Call your local BRP dealership |
| 22 | 514053696 | Isolation |
| 23 | 514053691 | Lower enveloppe |
| 23 | 514053724 | Rear upper enveloppe |
| 24 | 514053313 | REAR UPPER ENVELOPE - Call your local BRP dealership |
| 24 | 514053314 | REAR LOWER ENVELOPE - Call your local BRP dealership |
| 25 | 514053540 | RETAINING STRAP - Call your local BRP dealership |
| 26 | 514053492 | Retaining strap |
| 27 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 28 | 514053512 | RETAINING STRAP - Call your local BRP dealership |
| 29 | 514053643 | Spring |
| 30 | 570044100 | Rubber pad |
| 31 | 514053442 | SUPPORT - Call your local BRP dealership |
| 32 | 36037 | Rivet |
| 33 | 415107100 | Spring |
| 34 | 514052718 | Reflective sheet |
| 35 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 36 | 5447086 | Spring bracket |
| 37 | 514053436 | Spring bracket |
| 38 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 39 | 20008 | Washer A5,3 |
| 40 | 514053662 | Reflective sheet |
