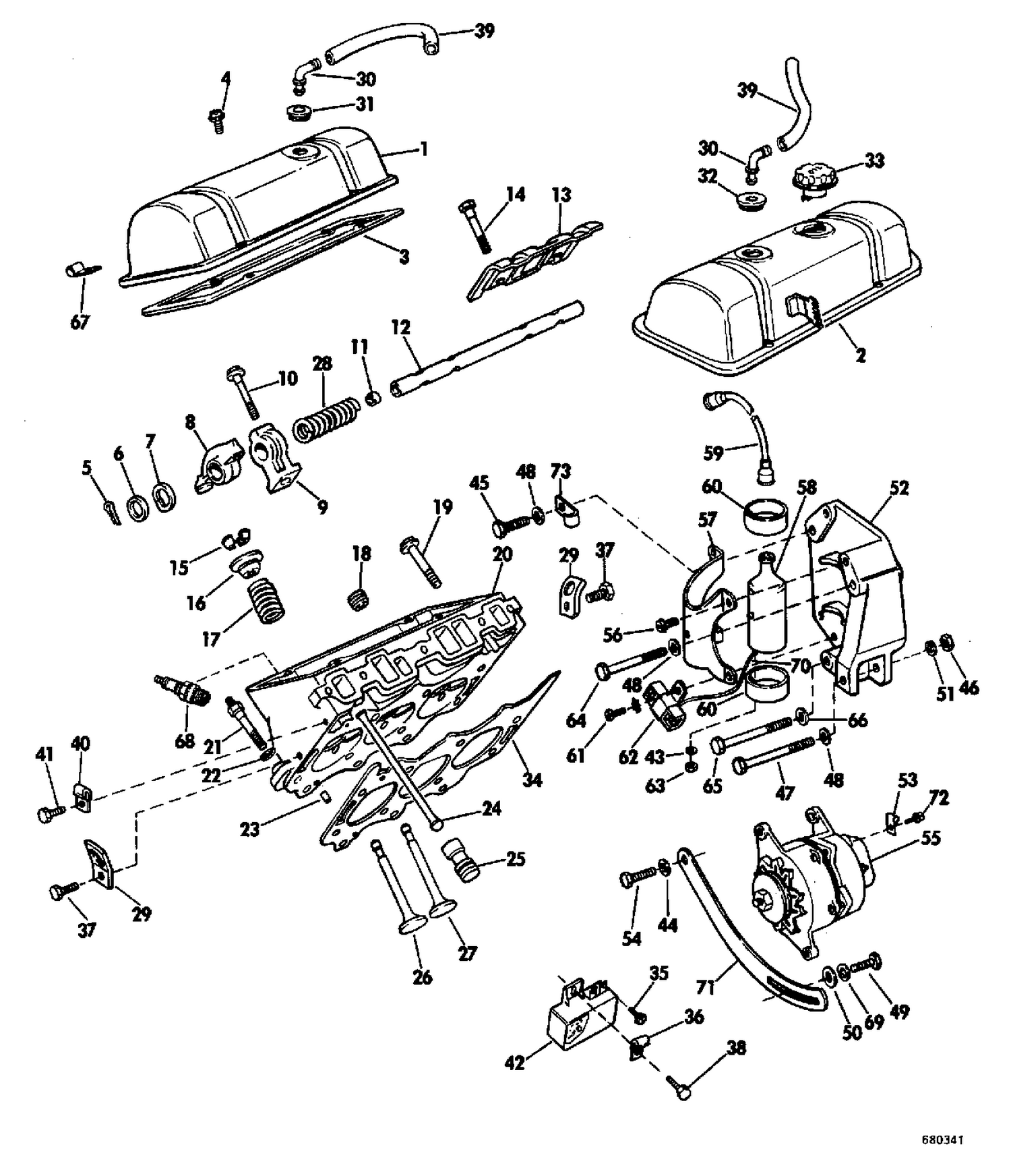

| Ref | Part Number | Description |
|---|
| 1 |
1379902 |
COVER, Valve rocker arm, right |
| 2 |
1379903 |
COVER, Valve rocker arm, left |
| 3 |
1363779 |
GASKET, Valve rocker arm cover |
| 4 |
1364099 |
SCREW, Cover to head |
| 5 |
COTTER |
PIN,3/32x1-1/8" |
| 6 |
1237679 |
WAHSER,Valve rocker arm shaft |
| 7 |
1249383 |
SPRING, End |
| 8 |
1194142 |
ARM, Valve rocker |
| 9 |
1192124 |
BRACKET, Rocker arm shaft |
| 10 |
1195666 |
SCREW, Arm shaft to head |
| 11 |
1237691 |
PLUG, Rocker arm shaft |
| 12 |
1388972 |
SHAFT,Valve rocker arm |
| 13 |
1353596 |
BAFFLE |
| 14 |
1372462 |
SCREW,Baffle and bracket to cyl.head |
| 15 |
1192817 |
KEY, Valve spring cap |
| 16 |
1192816 |
CAP, Valve spring |
| 17 |
1369982 |
SPRING, Valve |
| 18 |
PLUG,Pipe |
Ref: 19 9419653 BOLT, Cylinder head 9419653 |
| 20 |
1396787 |
HEAD,Cylinder |
| 21 |
9419652 |
BOLT, Cyl head, outer row & ends of inner row |
| 22 |
WASHER,Plain |
Ref: 23 1193699 PIN,Cylinder head to cylinder crankcase d 1193699 |
| 24 |
1185648 |
PUSH ROD, Valve |
| 25 |
5232245 |
LIFTER, Hydraulic valve |
| 26 |
1370108 |
VALVE, Exhaust, standard |
| 27 |
1370109 |
VALVE, Intake, standard |
| 28 |
1378985 |
SPRING, Shaft |
| 29 |
0310901 |
BRACKET, Lift |
| 30 |
0311545 |
ELBOW |
| 31 |
0311543 |
GROMMET |
| 32 |
0311544 |
GROMMET, Port |
| 33 |
0379958 |
CAP, Oil filler |
| 34 |
0311207 |
GASKET,Head |
| 35 |
0303791 |
SCREW |
| 36 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 37 |
0306414 |
SCREW |
| 38 |
0307920 |
SCREW |
| 39 |
3852435 |
HOSE Crankcase vent, 9" (229 mm) This part replaces 0312152. |
| 41 |
0311415 |
SCREW, Cable clamp |
| 42 |
0379779 |
VOLTAGE REGULATOR |
| 43 |
0550757 |
L'WASHER,Coil term |
| 44 |
0103867 |
WASHER |
| 47 |
0311391 |
SCR,Altnr to brkt |
| 49 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 51 |
0309336 |
L'WASHER, Alternator to bracket |
| 52 |
0381300 |
BRACKET,Alternator |
| 53 |
0310503 |
CLAMP |
| 54 |
0310898 |
SCREW, Belt guard mount |
| 55 |
0381519 |
ALTERNATOR ASSEMBLY |
| 56 |
0305230 |
SCREW |
| 57 |
0310536 |
CLAMP,Coil |
| 58 |
0379569 |
COIL ASSEMBLY |
| 59 |
0580545 |
LEAD ASSEMBLY, Distributor to coil |
| 60 |
0307768 |
SLEEVE |
| 62 |
0580387 |
BALLAST RESISTOR |
| 65 |
0201809 |
SCEW,Starter to cylinder |
| 67 |
0310889 |
CLAMP, Heat exchanger tube |
| 68 |
0380565 |
SPARK PLUG, A.c.m43s |
| 70 |
0580551 |
LEAD,Coil to resistor |
| 71 |
0310878 |
BRACE, Alternator to pump cover |
| 72 |
0510490 |
SCREW |
| 0380863 |
0380863 |
SPARK PLUG, Champion j-10y |
| 1194143 |
1194143 |
ARM, Valve rocker |
| 1371341 |
1371341 |
VALVE,Exhaust,.004" o.s. |
| 1371342 |
1371342 |
VALVE,Intake,.004" o.s. |
| 1378309 |
1378309 |
VALVE,Intake,.010" o.s. |
| 1378311 |
1378311 |
VALVE,Exhaust,.010" o.s. |
