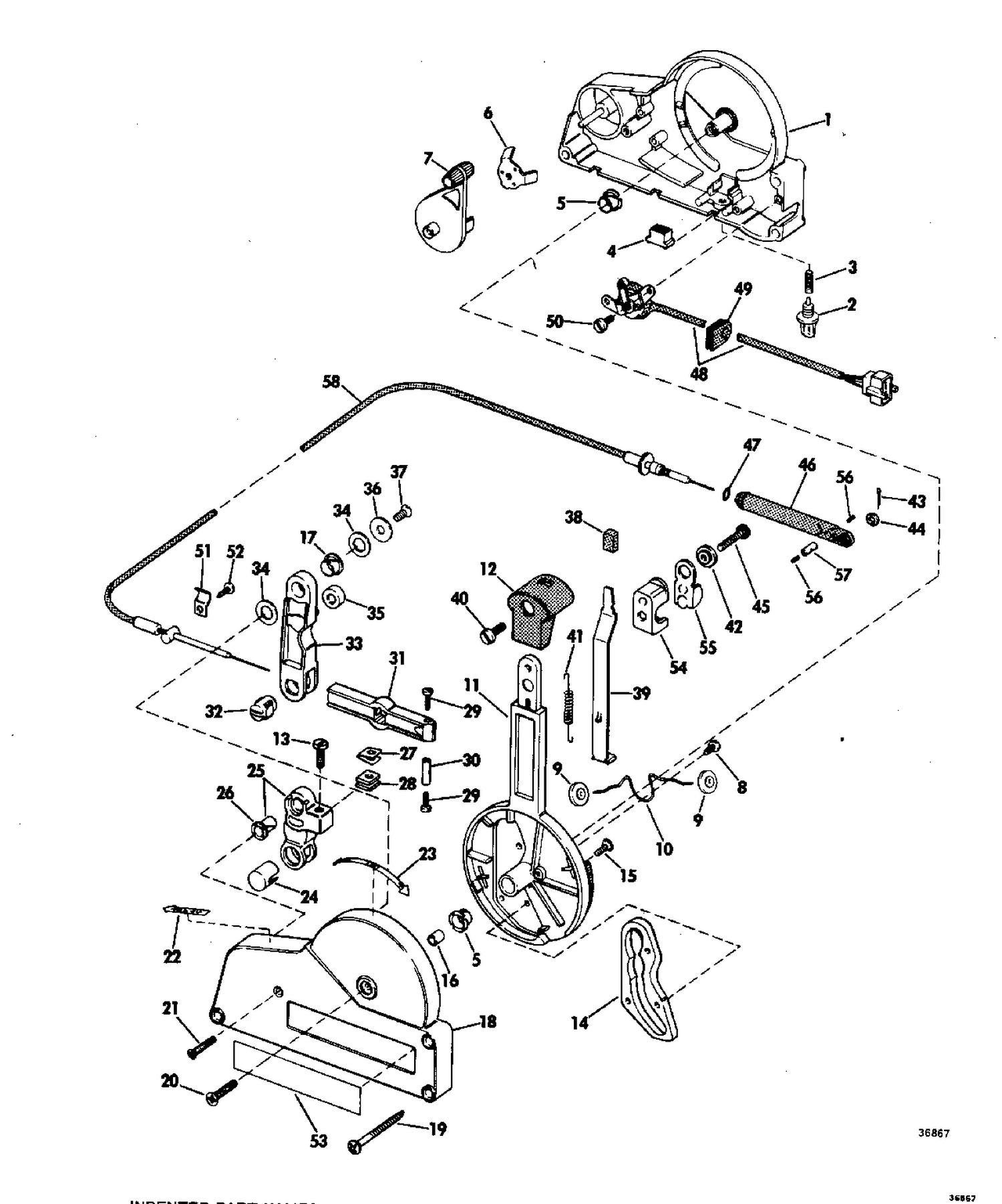

| Ref | Part Number | Description |
|---|
| 1 |
0380506 |
HOUSING & PIN, Lever half |
| 3 |
0308514 |
SPRING, Throttle friction detent |
| 4 |
0308515 |
DETENT, Throttle friction |
| 6 |
0310699 |
SPRING, Idle lever |
| 7 |
0310700 |
LEVER, Idle adjustment |
| 8 |
0309072 |
SCREW, Detent spring, up. throt. cable anchr |
| 9 |
0308517 |
ROLLER, Lever to box |
| 10 |
0308513 |
SPRING, Roller |
| 11 |
0311622 |
LEVER, Control housing |
| 12 |
0311617 |
KNOB, Lever |
| 13 |
0313776 |
SCREW, Knob to link |
| 14 |
0310745 |
CAM, Lever |
| 15 |
0310747 |
SCREW, Cam to lever |
| 16 |
0308530 |
SPACER, Control housing |
| 17 |
0310691 |
BUSHING, Lever |
| 18 |
0311016 |
HOUSING, Cable hald |
| 21 |
0308518 |
SCREW, Control housing |
| 22 |
0309983 |
TRANSFER, Idle adjustment |
| 23 |
0308526 |
TRANFER,Shift housing |
| 24 |
0308511 |
PIN, Lock, cable to link |
| 25 |
0379874 |
SPACER & BRUSHING LINK ASSEMBLY |
| 29 |
0173506 |
SCREW This part replaces 0308037. |
| 30 |
0173506 |
SCREW This part replaces 0308036. |
| 31 |
0308034 |
GUIDE, Casing |
| 32 |
0308035 |
INSERT, Casing guide |
| 33 |
0379650 |
LINK |
| 34 |
0310689 |
WASHER, Casing guide link |
| 36 |
0310690 |
WASHER, Link |
| 37 |
0310692 |
SCREW, Link to housing |
| 38 |
0311618 |
CAP |
| 39 |
0311619 |
LEVER |
| 40 |
0311621 |
SCREW, Housing to housing |
| 41 |
0011620 |
SPRING,Locking lever |
| 42 |
0310688 |
SAPCER, Anchor block |
| 44 |
0303887 |
WASHEER, Pin to swivel bracket |
| 45 |
0308238 |
SCERW,Anchor block |
| 47 |
0307063 |
O RING |
| 48 |
0384006 |
SWITCH & SPACER ASSY This part replaces 0379526. |
| 50 |
0308519 |
SCREW |
| 53 |
0309985 |
TRANSFER |
| 53 |
0310617 |
TRANSFER (JOHNSON) |
| 54 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 55 |
0310687 |
DETENT SPRING, Anchor block |
| 56 |
0303317 |
SCREW |
| 57 |
0385958 |
CLAMP & SC R.,Casing guide This part replaces 0303219. |
| 58 |
THROTTLE |
CABLE ASSY.,5 ft thru 50 ft. |
| 0380505 |
0380505 |
REMOTE CONTROL ASSEMBLY,Less throttle and |
