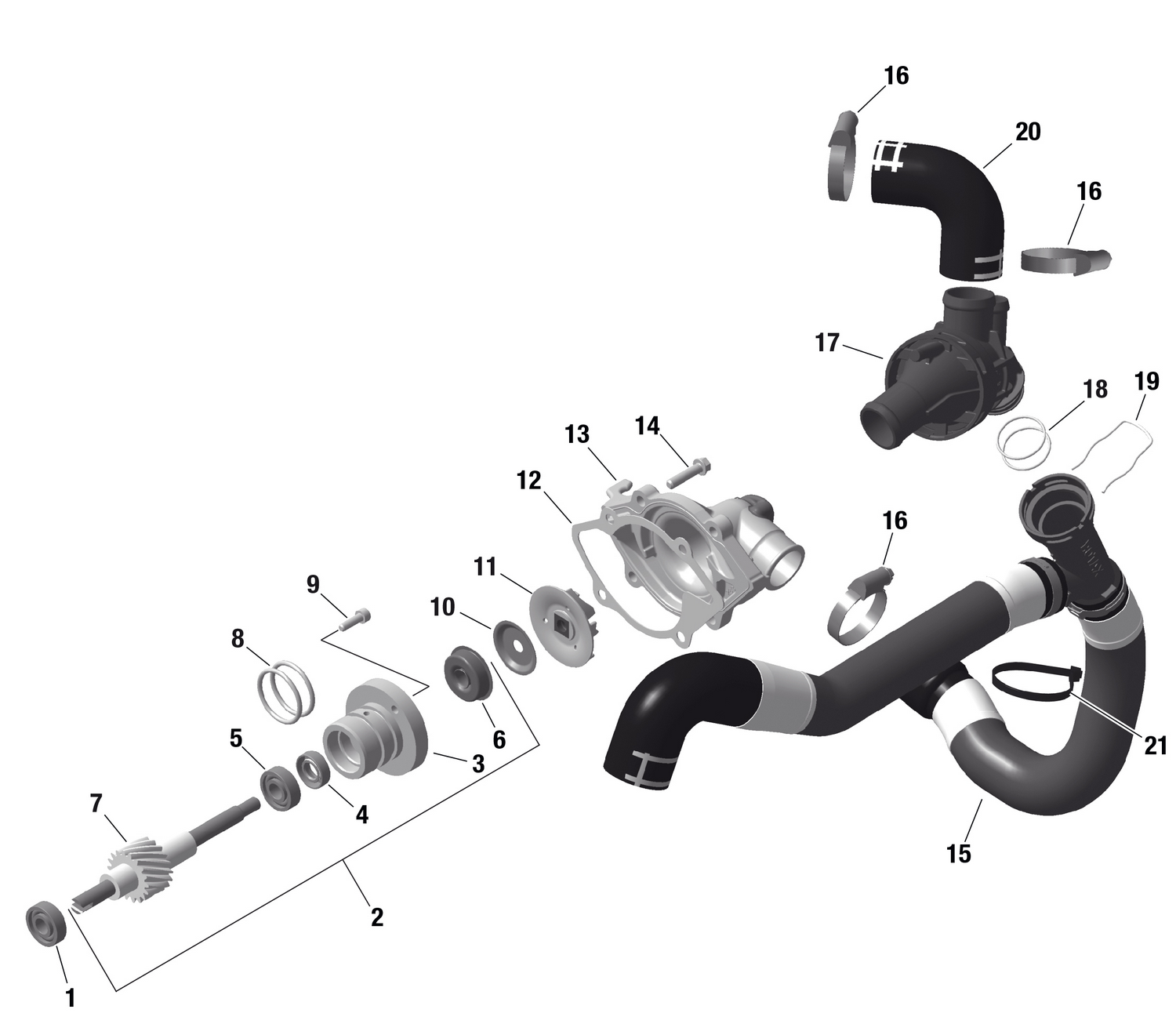

01- ROTAX - Engine Cooling
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 420891483 | Water Pump Shaft Ass'y This part replaces 420891479. |
| 3 | 420847933 | Step Collar |
| 5 | 420232100 | Ball Bearing |
| 7 | 420837678 | Water Pump Shaft |
| 9 | 420840514 | Allen Screw M5 x 16 |
| 10 | 420944035 | Cover Washer |
| 11 | 420222507 | Impeller |
| 13 | 420933633 | Water Pump Housing |
| 14 | 420440234 | Torx Flange Screw M6 X 25 |
| 15 | 420822805 | Molded Hose |
| 16 | 420951120 | Clamp 26-38MM |
| 17 | 420822837 | Thermostat Housing |
| 19 | 420939344 | Spring Clip |
| 20 | 420822820 | Return Hose |
