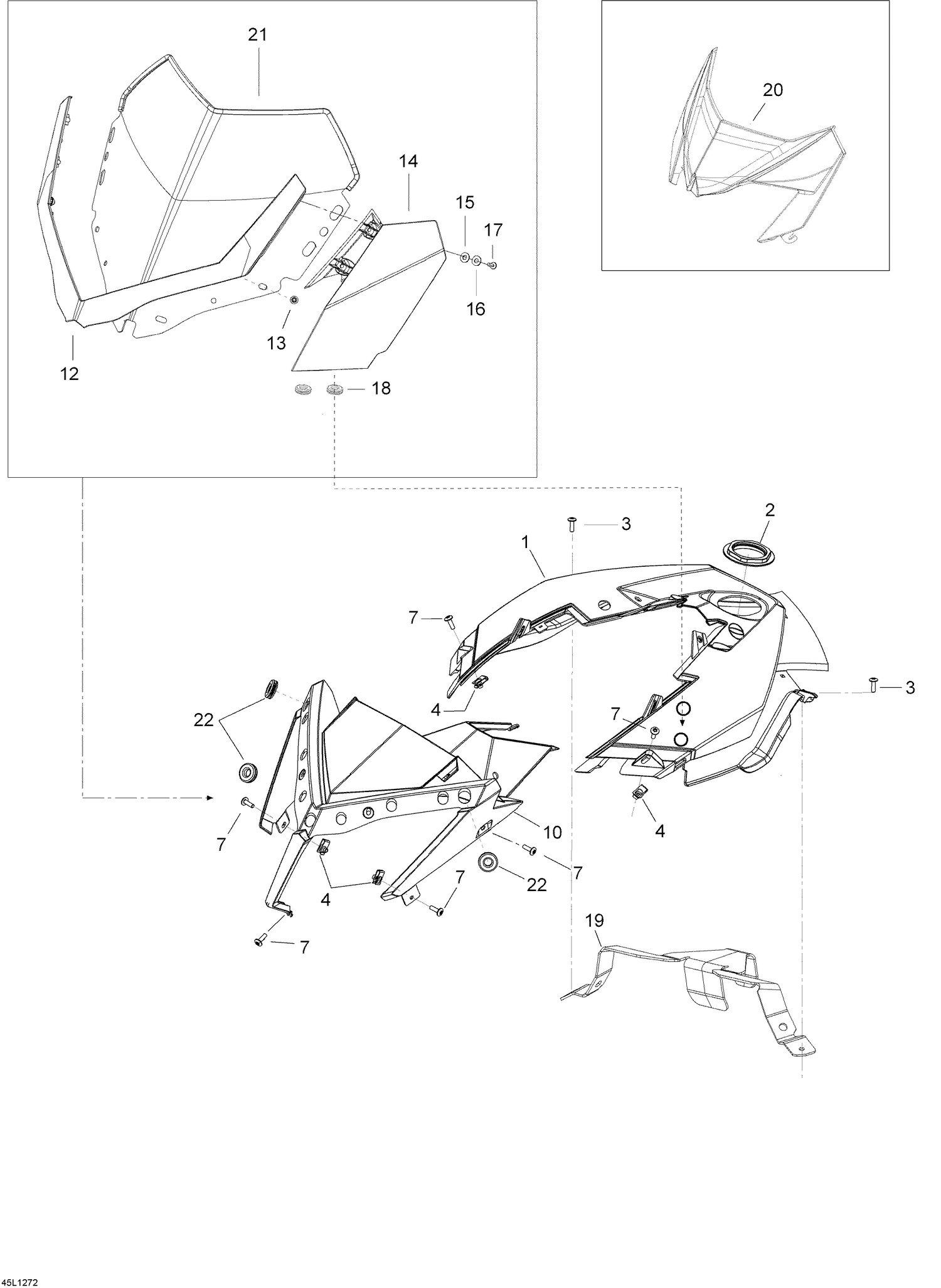

09- Windshield And Console
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304645 | Console White |
| 2 | 517302575 | CONSOLE NUT - Call your local BRP dealership |
| 3 | 36037 | Rivet |
| 4 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 10 | 517304575 | Gauge Support |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 | 860200089 | Windshield Support Kit |
| 12 | 860200091 | Windshield Support Assy incl 12-13 |
| 13 | 732610072 | Push Nut |
| 14 | 517303604 | RH Air Deflector |
| 14 | 517303605 | LH Air Deflector |
| 14 | 619560022 | Wind deflector Kit RE-X incl. 14-18 |
| 15 | 250200024 | Rubber Washer 5 mm |
| 16 | 250200025 | Washer M5 |
| 17 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 18 | 517303756 | Grommet |
| 19 | 517304230 | Support plate for console |
| 20 | 517304648 | Headlamp cover |
| 21 | 517303608 | MEDIUM WINDSHIELD - Call your local BRP dealership |
