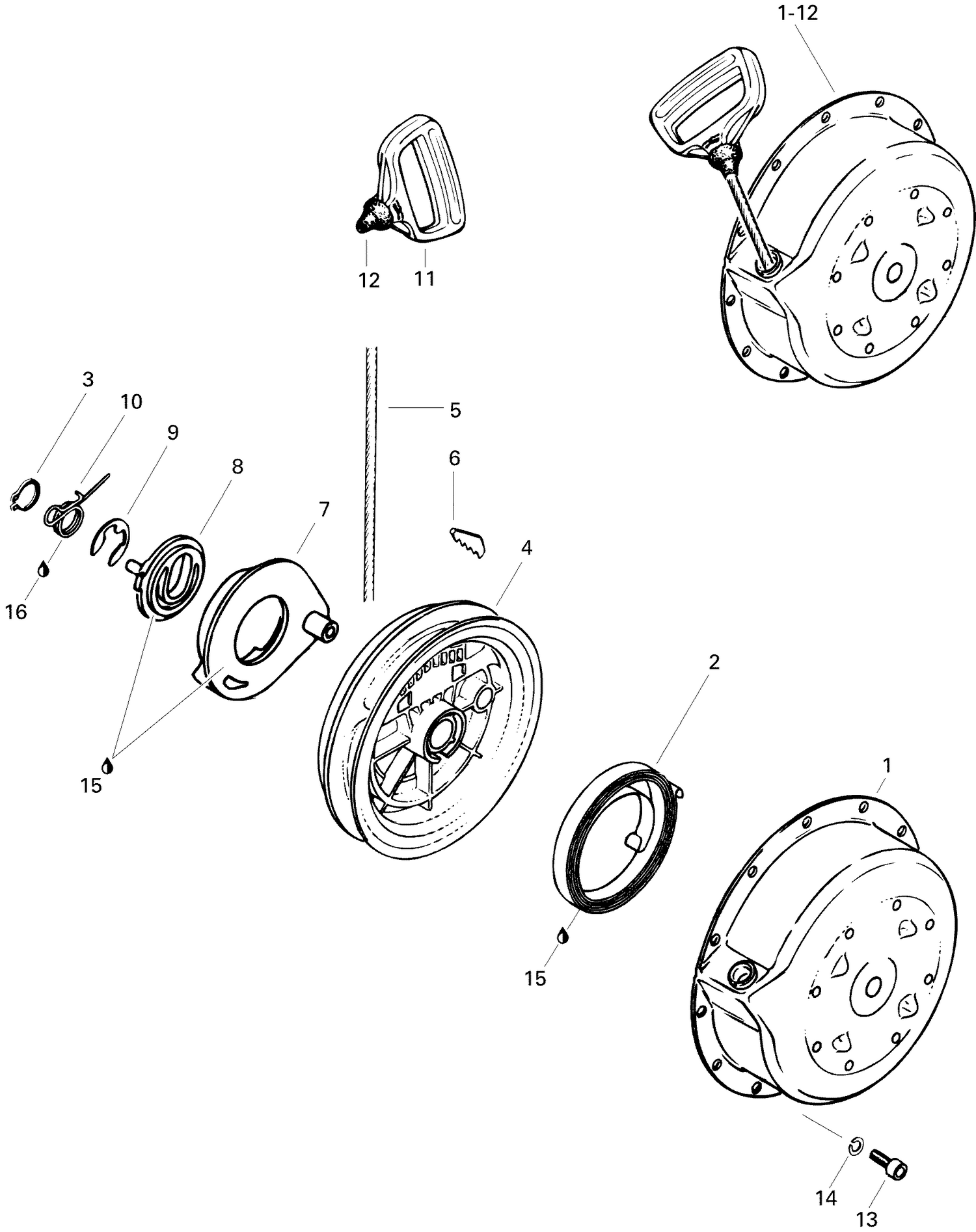

04- Rewind Starter E, E LT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420910068 | Starter Housing |
| 2 | 420939115 | Rewind Spring |
| 3 | 420945770 | LOCK RING - Call your local BRP dealership |
| 4 | 420852283 | Rope Sheave |
| 5 | 219704403 | Was 412500100 Rope-Starter |
| 6 | 420852070 | Key Clamp |
| 7 | 420852296 | Pawl This part replaces 420852290. |
| 8 | 420852301 | PAWL LOCK - Call your local BRP dealership |
| 9 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 10 | 420938986 | Pawl Spring This part replaces 420938985. |
| 11 | 420852176 | Starter Handle |
| 12 | 420960415 | Rubber Buffer |
| 13 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 14 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 15 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
