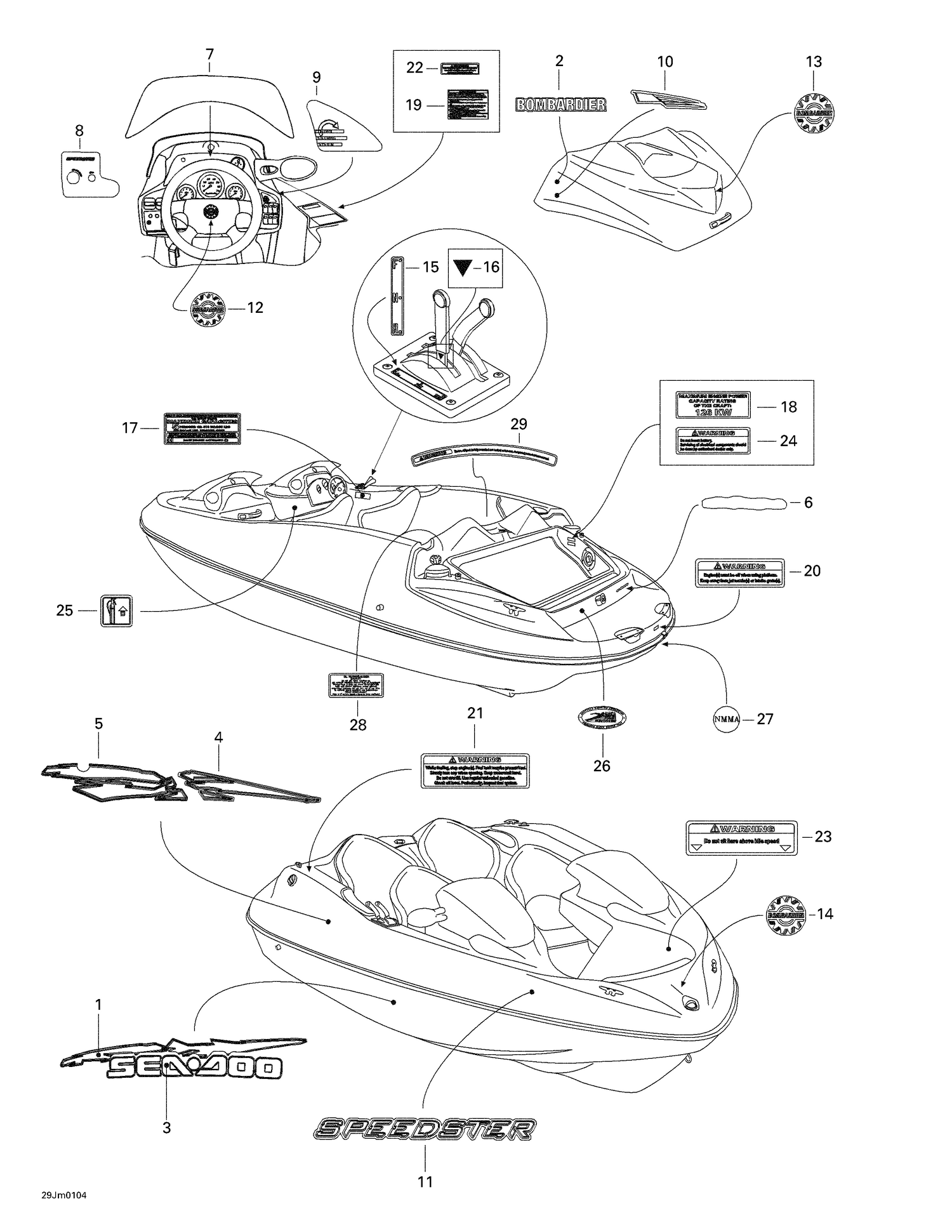

09- Decals
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204900806 | RH Hull Graphic |
| 2 | 204900517 | Bombardier Decal |
| 3 | 204900804 | Sea-Doo Hull Decal |
| 4 | 204900812 | RH Deck Graphic |
| 5 | 204900815 | RH Deck Graphic |
| 6 | 204900514 | Mercury Decal |
| 7 | 204900811 | Console Decal |
| 8 | 204900814 | Start/Stop Decal |
| 9 | 204900516 | Low Speed Control Decal |
| 10 | 204900818 | RH Engine Cover Graphic |
| 11 | 204900808 | Speedster Decal |
| 12 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 13 | 219900528 | Bombardier Logo |
| 14 | 204900435 | Bombardier Logo |
| 15 | 204900136 | DECAL, SHIFTER - Call your local BRP dealership |
| 16 | 204900138 | POINTER, SHIFTER - Call your local BRP dealership |
| 17 | 204900272 | CE Capacity Label |
| 18 | 204900462 | Power Capacity Label |
| 19 | 204900734 | Warning Label - Navigation |
| 20 | 204900470 | Label - Warning |
| 21 | 204900468 | Label - Fuel |
| 22 | 204900162 | Label - Warning, Gas Blower |
| 23 | 204900465 | Warning Label, Bow Seat |
| 24 | 204900469 | Warning Label, Battery |
| 25 | 204900359 | Extinguisher Decal |
| 26 | 204900313 | Awsa Decal |
| 27 | 204900464 | NMMA Certification Decal |
| 28 | 204900422 | Warning Decal, Oil |
| 204900805 | LH | Hull Graphic 204900805 |
| 204900816 | LH | Deck Graphic 204900816 |
| 204900817 | LH | Engine Cover Graphic 204900817 |
| 204900819 | LH | Deck Graphic 204900819 |
