| Ref | Part Number | Description |
|---|
| 12 |
0330151 |
CLAMP, Harness to oil tank boss |
| 13 |
0434179 |
CYLINDER HEAD |
| 14 |
0336416 |
SEAL |
| 16 |
0328722 |
SCREW, Spark adjust |
| 20 |
0322323 |
SCREW |
| 21 |
0389471 |
SPARK PLUG, Champion L78 |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
0306049 |
SCREW |
| 23 |
0336765 |
SPRING, Relief valve |
| 24 |
0333967 |
COVER, Thermostat and valve |
| 25 |
0393545 |
BELLCRANK ASSY., Shift |
| 26 |
0317581 |
SCREW, Actuator cam |
| 27 |
0329830 |
GASKET, Cover |
| 28 |
0343863 |
GASKET, Exhaust manifold This part replaces 0329833. |
| 31 |
0343864 |
COVER, Exhaust manifold This part replaces 0329834. |
| 33 |
0202026 |
LOCK WASHER, Stud |
| 34 |
0322892 |
CAP, Adapter elbow |
| 36 |
0330151 |
CLAMP, Harness to oil tank boss |
| 37 |
0434137 |
THERMOSTAT ASSY, |
| 38 |
0336456 |
GUIDE, Lever to link |
| 39 |
0336447 |
SPRING, Dwell linkage |
| 41 |
0306337 |
SCREW, Adjustment |
| 42 |
0314021 |
BUMBER, Exhaust manifold |
| 43 |
0319318 |
LEVER, Spark adavance |
| 45 |
0395448 |
BALL & SOCKET ASSY |
| 47 |
0434171 |
CAM & PIN ASSY., Throttle |
| 48 |
0314003 |
BSHING, Spark lever |
| 49 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 51 |
0387800 |
LEVER, Throttle |
| 52 |
0318192 |
SHDLR. SCREW, Throttle lever |
| 53 |
0314002 |
BUSHING |
| 54 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 55 |
0314094 |
LINK, Throttle lever to cam |
| 56 |
0314098 |
WASHER, Throttle lever |
| 57 |
0330151 |
CLAMP, Harness to oil tank boss |
| 58 |
0336424 |
LINK, Throttle lever to cam |
| 59 |
0314136 |
VIS, came de papillon |
| 61 |
0330179 |
WASHER |
| 62 |
0336491 |
LINK, Dwell |
| 63 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 64 |
0334109 |
BOLT, Double end |
| 65 |
0306012 |
BOW WASHER |
| 68 |
0908060 |
BOW WASHER, Shoulder screw |
| 69 |
0330935 |
BAGUE, retenue de la tige du levier de sens de marche |
| 71 |
0329836 |
GASKET, Cylinder head |
| 72 |
0333962 |
LIFT BRACKET |
| 74 |
0584589 |
TEMPERATURE SWITCH |
| 77 |
0306049 |
SCREW |
| 78 |
0322631 |
BUSHING, Link |
| 80 |
0316664 |
BRACKET, Adjustment |
| 82 |
0314416 |
BUMBER, Advance screw |
| 83 |
0345600 |
SHIFT LEVER This part replaces 0330940. |
| 84 |
0318951 |
BUSHING, Shift lever to c'case |
| 86 |
0395588 |
LEVER & PIN ASSY., Shift lever |
| 87 |
0318193 |
BUSHING |
| 88 |
0331933 |
HOSE, Adapter to control valve |
| 90 |
0328567 |
LINK, Bellcrank |
| 91 |
0306322 |
BOLT, Water pump |
| 92 |
0337594 |
TEE |
| 0434104 |
0434104 |

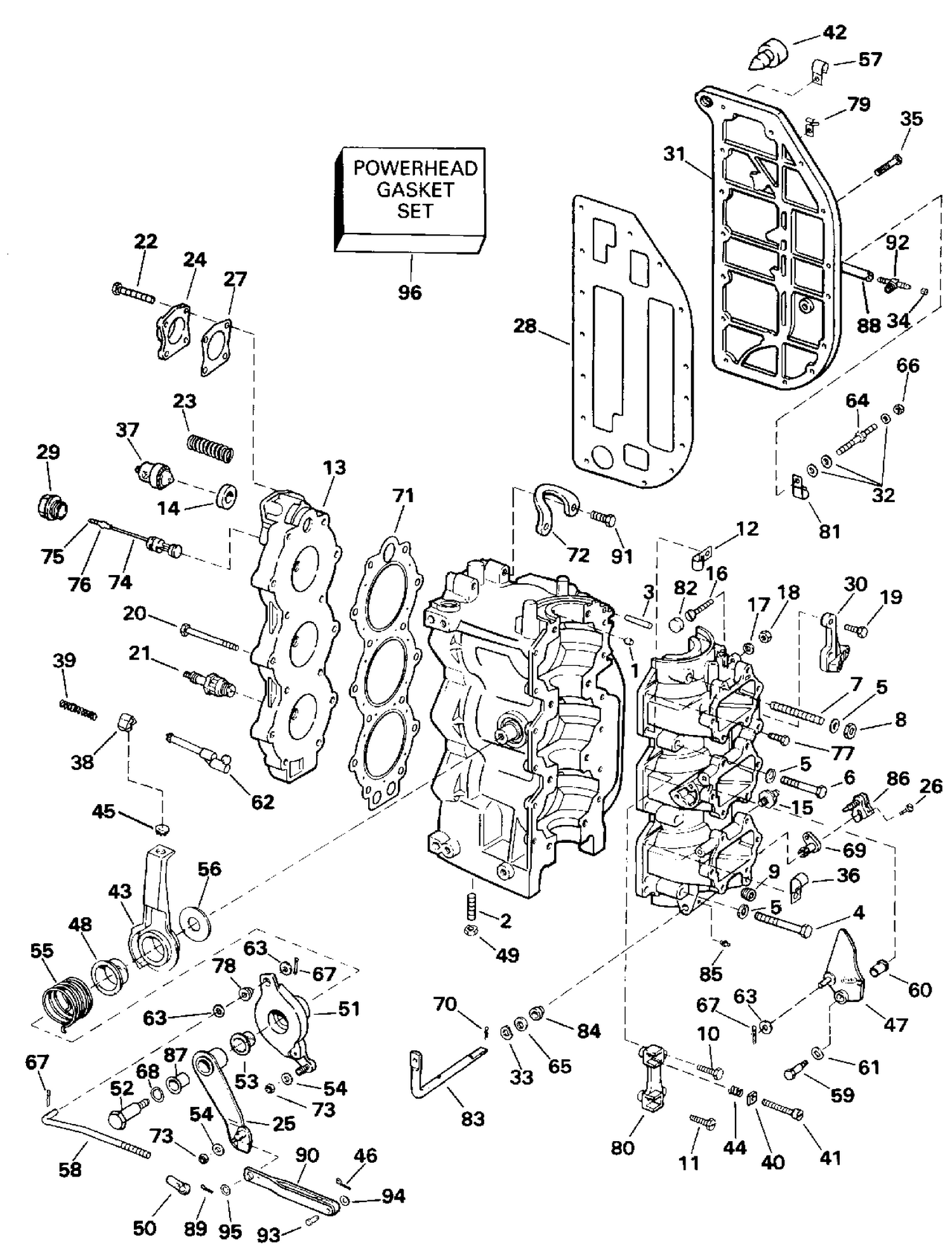

CYLINDER & CRANKCASE ASSY. |
